8281Si10.00

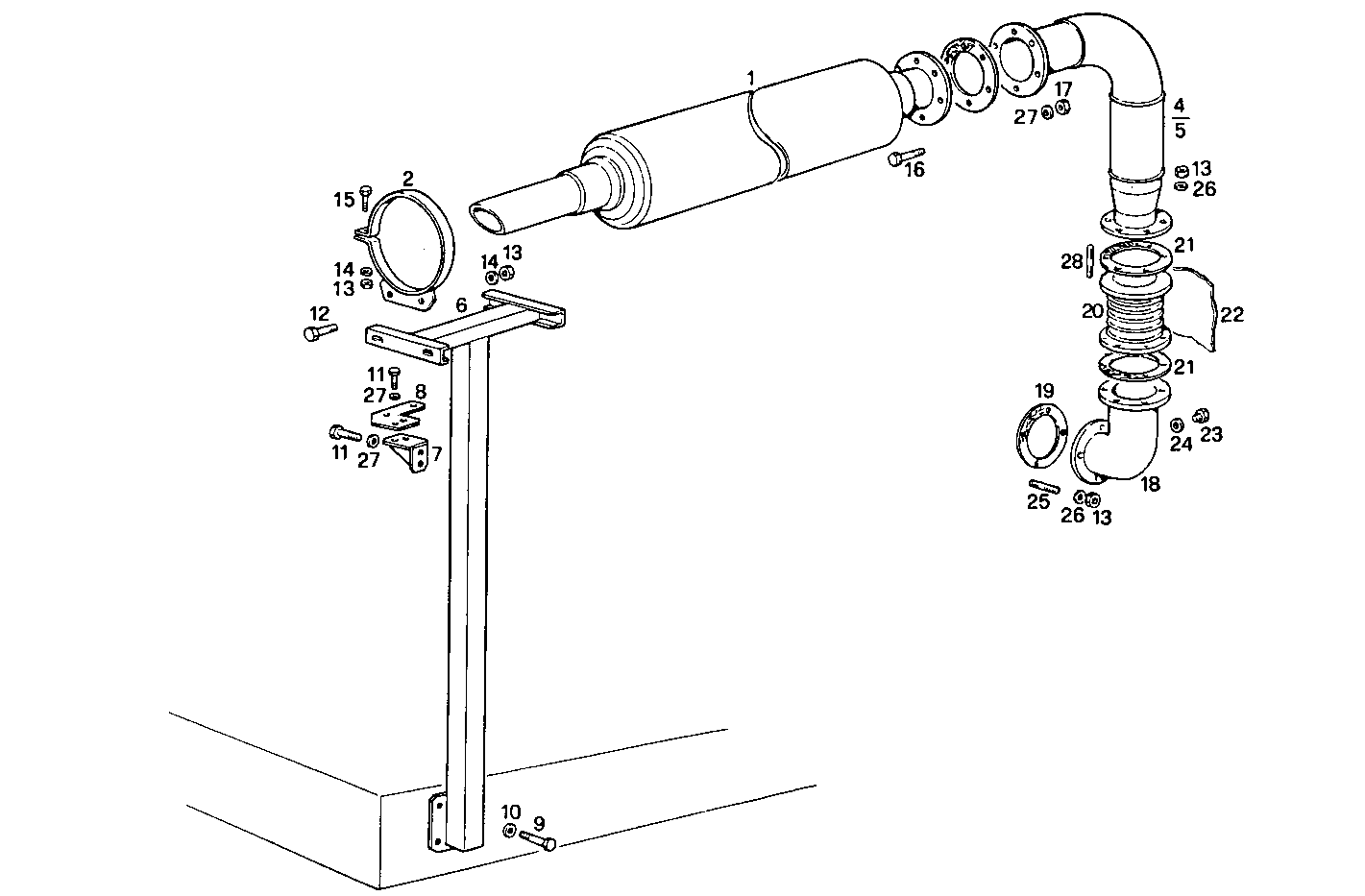

A23040002 HORIZONTAL SILENCER

Iveco/FPT HORIZONTAL SILENCER

Item Part number Description
1 4934291 SILENCER
2 4621724 CLIP
3 8009639 GASKET
4 8109685 EXHAUST ELBOW RIGHT
5 8109686 EXHAUST ELBOW LEFT
6 8109687 SUPPORT
7 8109688 RETAINER
8 8109689 RETAINER
9 11306921 SCREW M10X1,25X30
10 11190679 SPRING WASHER Ø10X27 MM SP=2,5
11 15970521 HEXAGON BOLT M10X20 MM
12 16043321 HEXAGON BOLT M8X18 MM
13 17037931 HEXAGON NUT M8X1,25
14 11193879 SPRING WASHER Ø8X16 MM
15 16625734 HEXAGON BOLT M8X35
16 15970921 HEXAGON BOLT M10X1,25X35 MM
17 12164711 HEXAGON NUT M10X1,25
18 8111765 EXHAUST ELBOW
19 8107311 GASKET
20 4935378 EXHAUST BELLOWS
21 8009606 GASKET
22 8101603 PROTECTION
23 10300511 LOCK PLUG M12X1,5
24 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
25 13157221 STUD
26 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
27 11190579 SPRING WASHER Ø10X20 MM SP=2,3
28 13516921 STUD M8X12X22 MM
