8281Si15.00

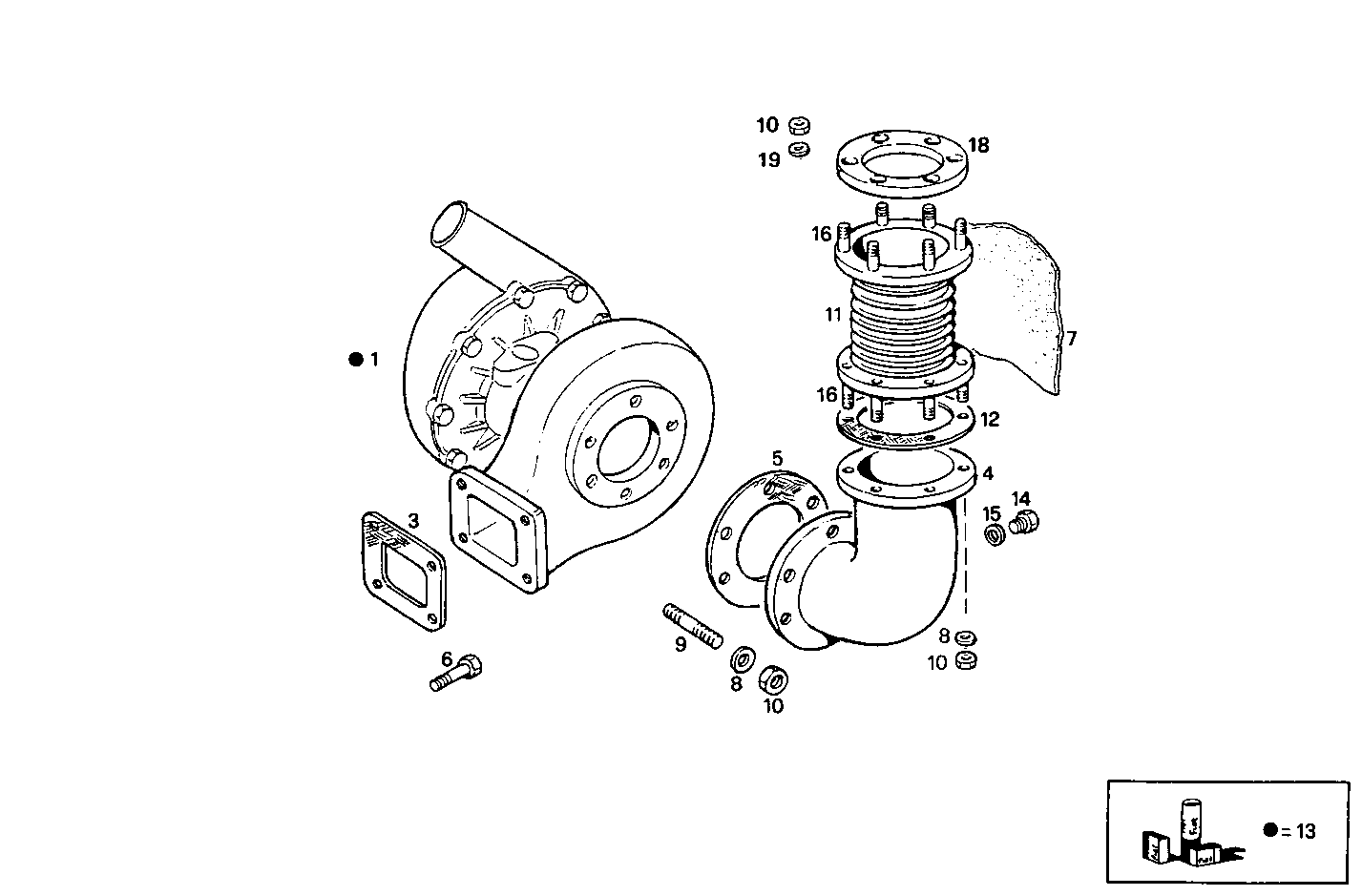

2400.031 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8107560 | TURBOCHARGER ASSY HOLSET |
| 3 | 98428396 | FLAT ENGINE GASKET |
| 4 | 8111765 | EXHAUST ELBOW |
| 5 | 8107311 | GASKET |
| 6 | 4830633 | HEXAGON BOLT M10X28 MM |
| 7 | 8101603 | PROTECTION |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 13517221 | STUD M8X12X30 MM |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
| 11 | 4935378 | EXHAUST BELLOWS |
| 12 | 8009606 | GASKET |
| 13 | 8090147 | KIT-TURBOCHARGER HOLSET |
| 14 | 16992211 | THREADED PLUG M12X1,5 |
| 15 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
| 16 | 13516921 | STUD M8X12X22 MM |
| 18 | 4919183 | FLANGE |
| 19 | 16665504 | WASHER Ø8 MM |
