8281Si15.00A500

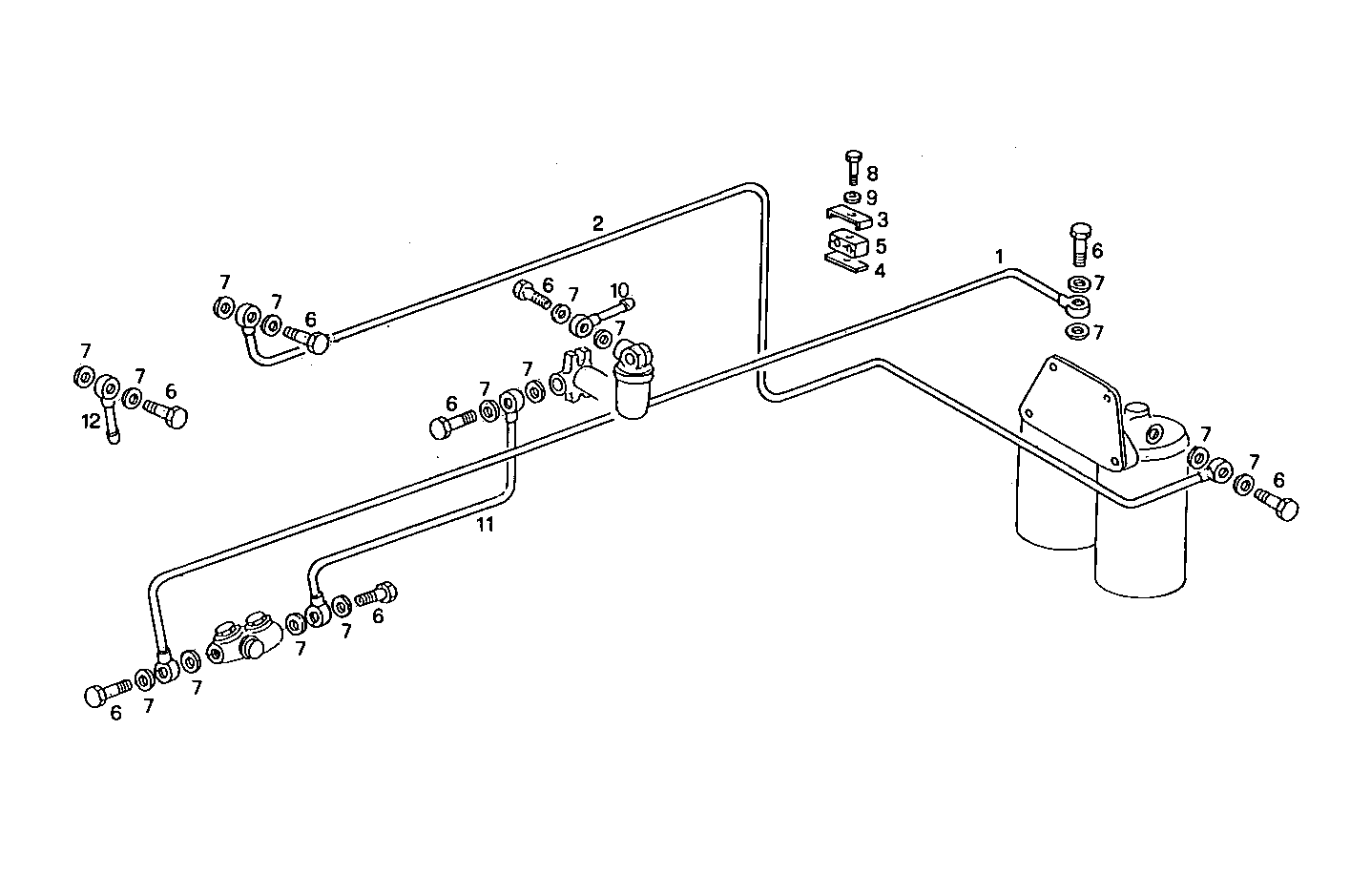

2030.043 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 8012482 | FUEL LINE |
2 | 8012483 | FUEL LINE |
3 | 4644288 | CLIP |
4 | 4644289 | CLIP |
5 | 4871771 | RUBBER LUG |
6 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
7 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
8 | 16603824 | SCREW M6X25 |
9 | 17088474 | WASHER Ø6X12 MM |
10 | 98404882 | PIPE SOCKET Ø8 MM |
11 | 8012480 | FUEL LINE |
12 | 98413896 | PIPE SOCKET Ø8 MM |
