8281Si15.00A500

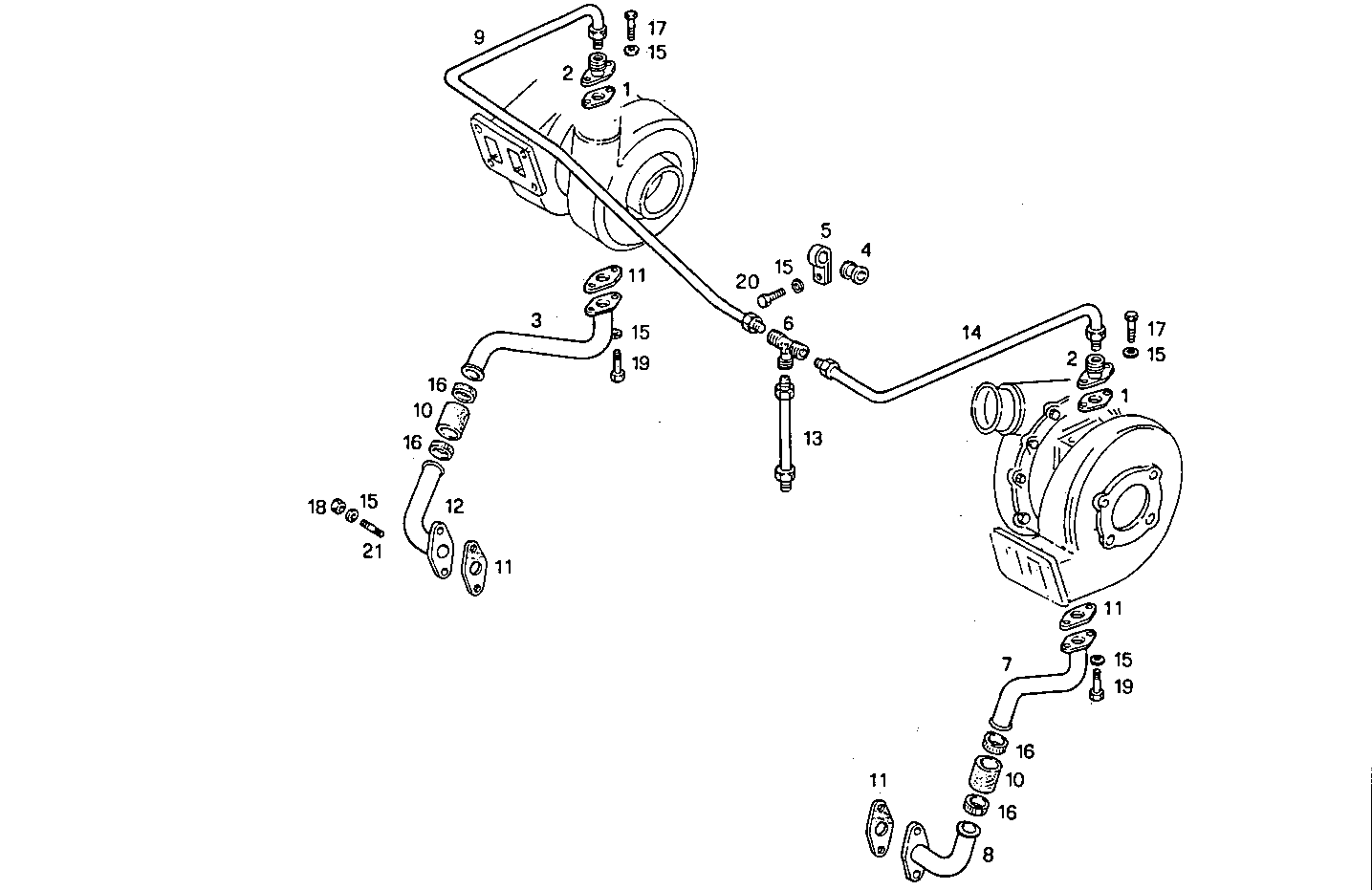

3010.042 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98415922 | FLAT ENGINE GASKET |
| 2 | 4764795 | THREADED UNION |
| 3 | 4829195 | OIL LINE |
| 4 | 4755964 | RUBBER PAD |
| 5 | 4755963 | FASTENING BRACKET |
| 6 | 4741608 | T-COUPLING |
| 7 | 4765142 | OIL LINE |
| 8 | 4765146 | OIL LINE |
| 9 | 4810600 | OIL LINE |
| 10 | 98420478 | RUBBER SLEEVE |
| 11 | 98415923 | FLAT ENGINE GASKET |
| 12 | 4829193 | OIL LINE |
| 13 | 4810598 | OIL LINE |
| 14 | 4810602 | OIL LINE |
| 15 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 16 | 17764592 | CLIP Ø20/32 MM |
| 17 | 16605524 | HEXAGON BOLT M8X20 MM |
| 18 | 17037931 | HEXAGON NUT M8X1,25 |
| 19 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 20 | 16043221 | HEXAGON BOLT M8X16 MM |
| 21 | 13544521 | STUD M8X16X75 MM |
