8281Si15.00A500

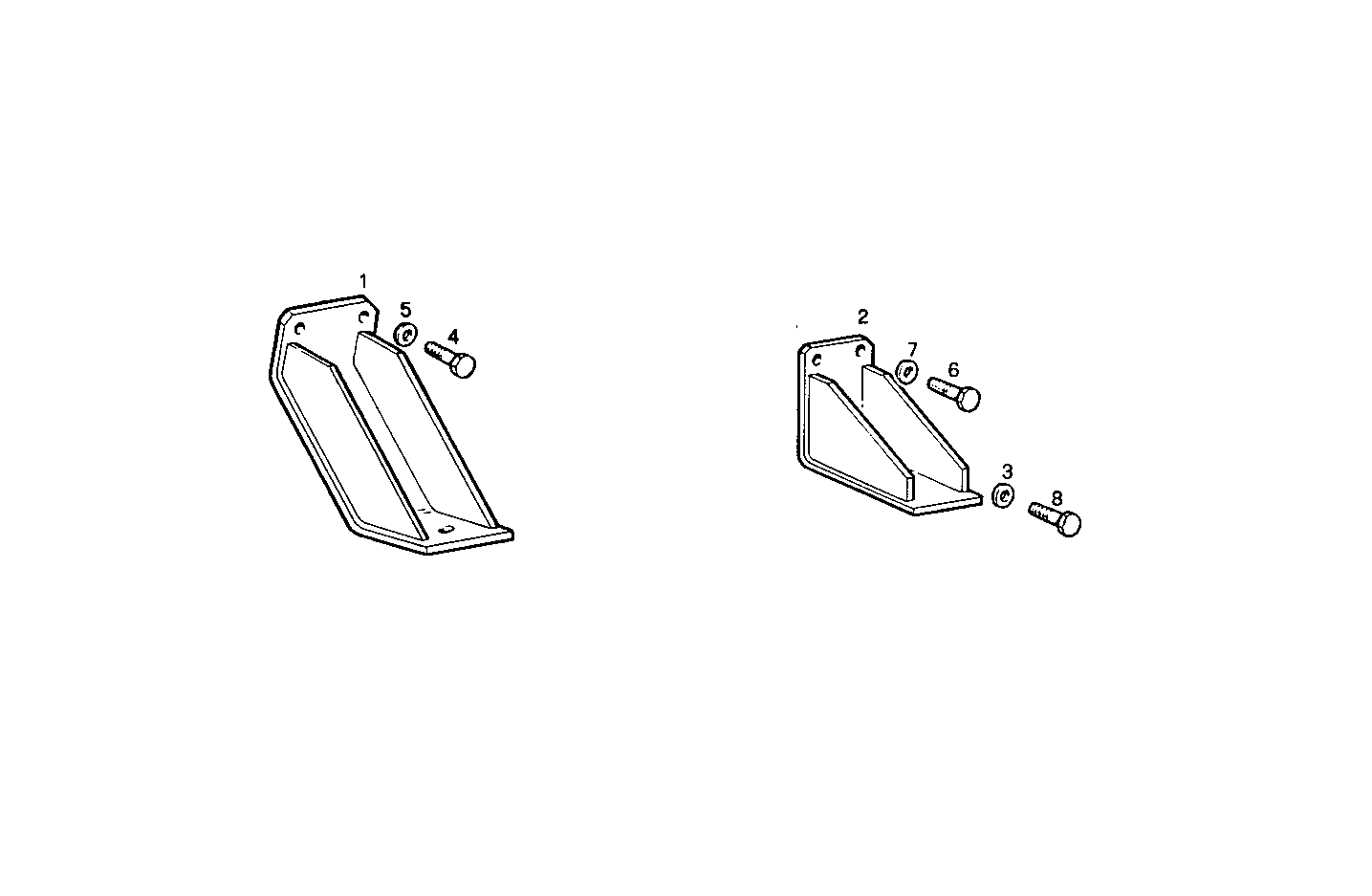

A04000017 RIGID MOUNTING - without flyweel housing with 2 starter motor seat
Item | Part number | Description |
---|---|---|
1 | 4930950 | ENGINE SUSPENSION FRONT |
2 | 4930951 | ENGINE SUSPENSION RIGHT |
3 | 11200379 | SPRING WASHER Ø19,4 MM |
4 | 15540421 | SCREW M12X1,25X30 |
5 | 17091074 | WASHER Ø12X24X2,8 MM |
6 | 11390521 | HEXAGON BOLT M16X1,5X40 MM |
7 | 11200279 | SPRING WASHER Ø17 MM |
8 | 15984121 | SCREW |
