8281Si15.00A550

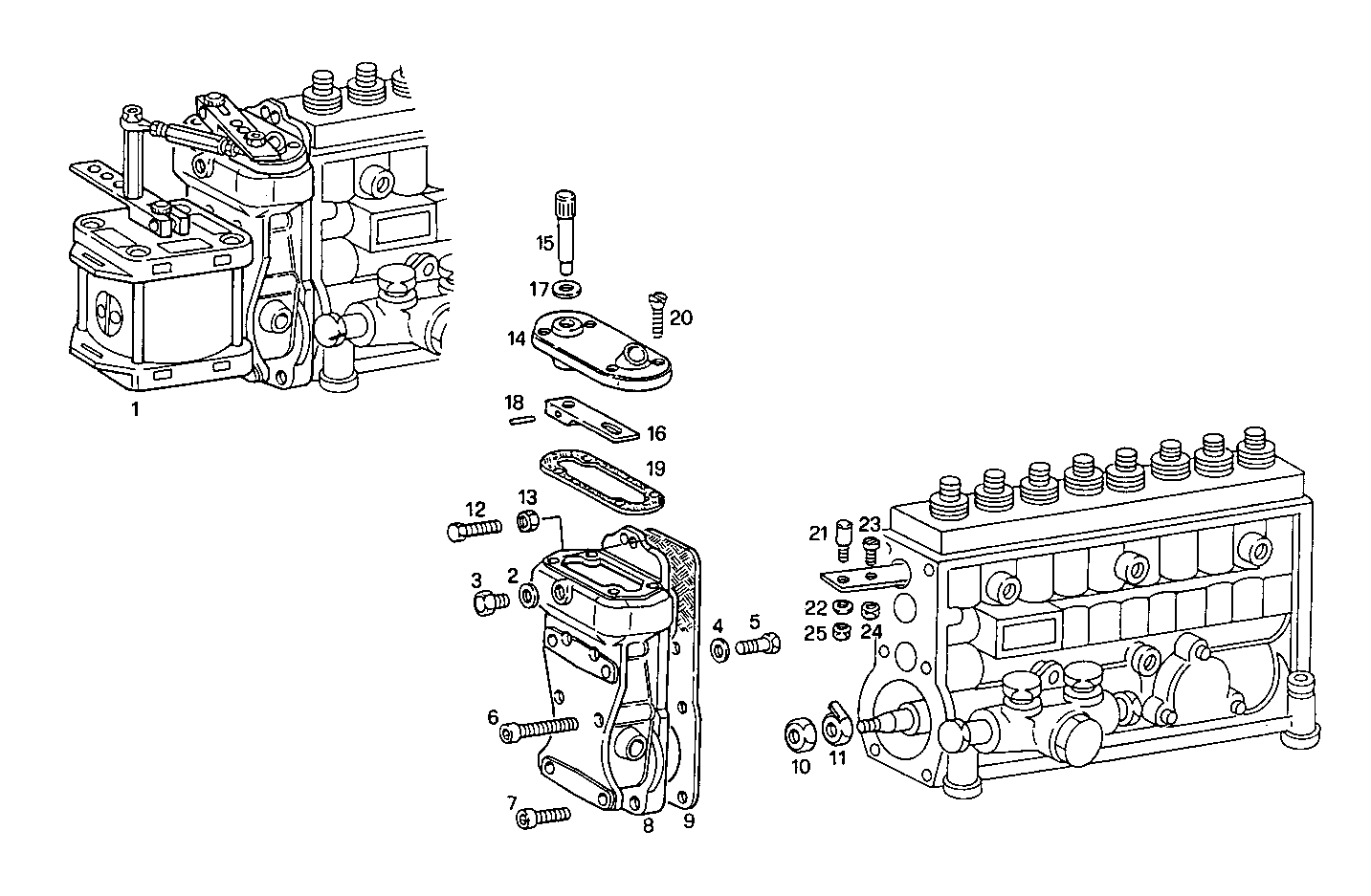

A28010021/01 ELECTRONIC GOVERNOR WOODWARD - 24V
Item | Part number | Description |
---|---|---|
1 | 8018717 | INJECTION CONTROL ASSY |
2 | 10278650 | GASKET Ø16X22X1 MM |
3 | 10300711 | LOCK PLUG M16 |
4 | 11107779 | WASHER |
5 | 4934404 | SCREW |
6 | 14309221 | SCREW M6X65 |
7 | 14305221 | CYLIND-HEAD SCREW M6X16 MM |
8 | 8007450 | TIMINGGEAR HOUSIN |
9 | 8015485 | GASKET |
10 | 10717311 | NUT M12 |
11 | 8108716 | NUT |
12 | 8108715 | SCREW |
13 | 17037721 | NUT M5X0,8 |
14 | 8007452 | COVER ASSY |
15 | 8109731 | PIN |
16 | 8108601 | LEVER |
17 | 8109732 | WASHER |
18 | 14158570 | DOWEL PIN Ø2,3 MM |
19 | 8009910 | GASKET |
20 | 8109360 | SCREW M5X12 |
21 | 8108604 | PIN |
22 | 17094714 | WASHER Ø6,4X12 MM |
23 | 17130714 | SCREW |
24 | 12574011 | NUT M4 |
25 | 17152621 | NUT M5X0,8 |
