8281Si15.00A580

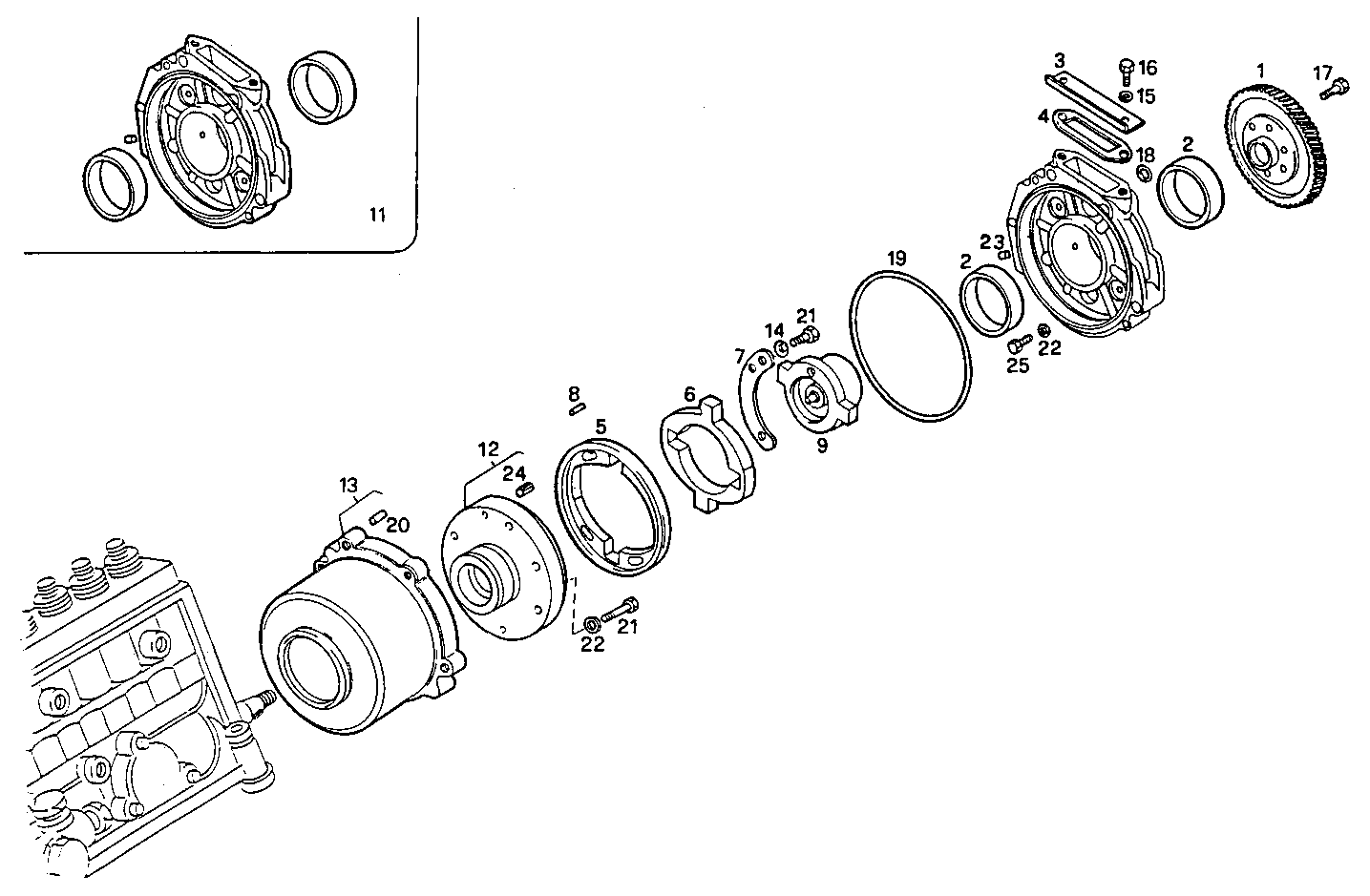

1410.030 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 4744445 INJ.PUMP DRIV.GEA
2 4686615 BUSH
3 4703707 COVER
4 4863493 FLAT ENGINE GASKET
5 4797214 FLANGE
6 4797215 FLANGE
7 4695415 STOP PLATE
8 4686653 DOWEL PIN
9 4800246 INJECT.PUMP SPIND
11 4799335 SUPPORT ASSY
12 4788545 INJECT.PUMP SLEEVE ASSY
13 4791467 HOUSING ASSY
14 17089574 WASHER Ø8X16 MM
15 17094914 WASHER 8x16
16 16043321 HEXAGON BOLT M8X18 MM
17 16320933 HEXAGON BOLT ASSY MARELLI
18 17281481 O-RING Ø10,7 MM SP=2,6 MM
19 17293481 O-RING Ø177,4 MM SP=3,5 MM
20 10837610 DOWEL PIN Ø8 MM
21 16605624 HEXAGON BOLT M8X25 MM (8.8)
22 17089874 WASHER Ø8X22 MM
23 10269150 LOCK PLUG M6X1
24 17257870 DOWEL PIN Ø6 MM
25 16605424 SCREW M8X16 MM (8.8)
