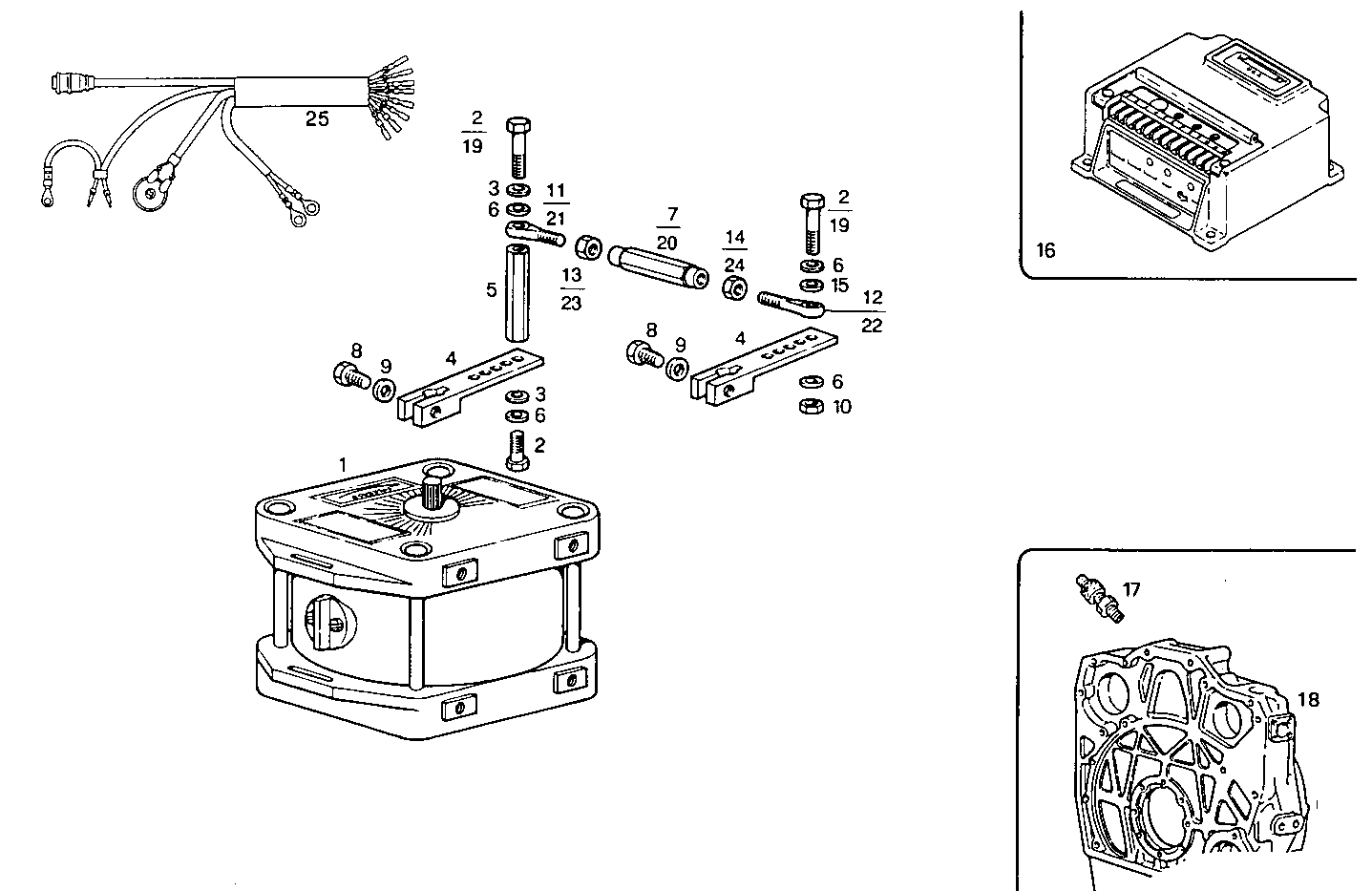

A28010021/02 ELECTRONIC GOVERNOR WOODWARD - 24V

Iveco/FPT ELECTRONIC GOVERNOR WOODWARD

Item Part number Description
1 8107492 INJECTION CONTROL ASSY
2 10978021 HEXAGON BOLT M5X20 MM
3 11199279 SPRING WASHER Ø5X10X0,5 MM
4 8108603 LEVER
5 8108656 SPACING BAR
6 14497801 WASHER Ø5X9,5 MM
7 8108606 EXTENSION ASSY [up to 10-93]
8 10902421 HEXAGON BOLT M6X20 MM
9 11197779 SPRING WASHER Ø6X12 MM
10 12574111 HEXAGON NUT M5
11 8114008 BANJO COUPLING RIGHT [up to 10-93]
12 8114009 TIE ROD LEFT [up to 10-93]
13 8109397 NUT RIGHT [up to 10-93]
14 8109398 NUT LEFT [up to 10-93]
15 12638101 WASHER Ø5,15 MM
16 8103081 INJECTION CONTROL
17 4933865 TRANSMITTER
18 4929963 FLYWHEEL HOUSING ASSY
19 8016470 SCREW M5
20 8016413 TIE ROD M6X1 [up to 06-95]
21 8016587 TIE ROD RIGHT [up to 06-95]
22 8016588 TIE ROD LEFT [up to 06-95]
23 15896240 NUT M6 - RIGHT [up to 06-95]
24 10789640 NUT M6 - LEFT [up to 06-95]
25 8108538 ENGINE HARNESS [up to 06-95]
