8281SM32.10

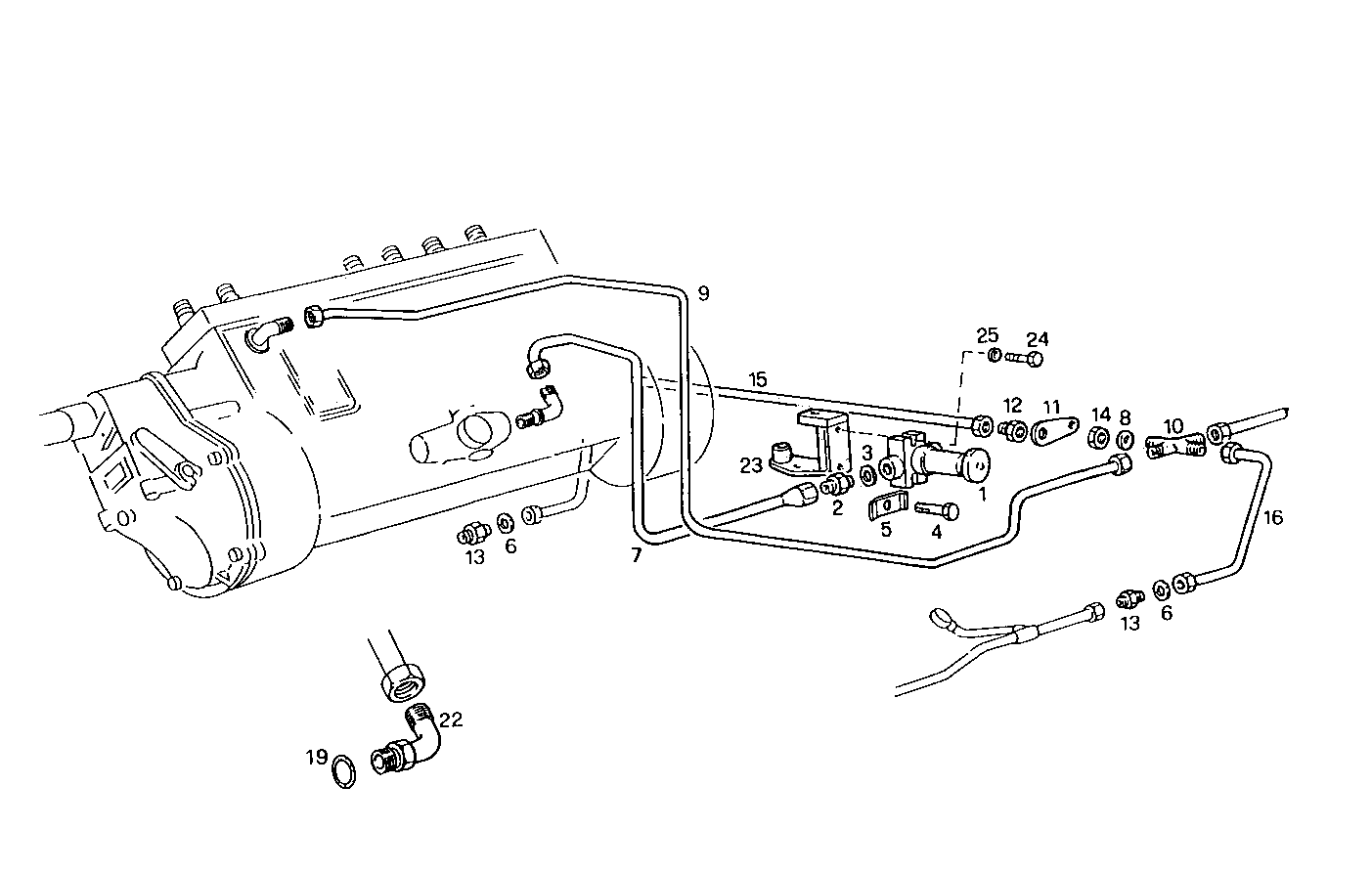

2030.015/01 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4797319 | HAND PUMP ASSY |
| 2 | 4570827 | PIPE SOCKET |
| 3 | 98474308 | SEAL GASKET Ø14X22 MM |
| 4 | 16603824 | SCREW M6X25 |
| 5 | 11351379 | PLATE |
| 6 | 8024645 | O-RING Ø4 MM |
| 7 | 8006223 | INJECTION LINE |
| 8 | 16507511 | WASHER |
| 9 | 8006224 | FUEL LINE |
| 10 | 8112969 | PIPE SOCKET |
| 11 | 8113294 | RETAINER |
| 12 | 8112970 | PIPE SOCKET |
| 13 | 16501611 | PIPE SOCKET M14X1,5 |
| 14 | 16508811 | NUT M16X1,5 |
| 15 | 8112076 | INJECTION LINE |
| 16 | 8112075 | INJECTION LINE |
| 19 | 17281581 | O-RING Ø12,37X2,62 MM |
| 22 | 8025927 | ELBOW COUPLING |
| 23 | 8008219 | RETAINER |
| 24 | 15540321 | HEXAGON BOLT M12X1,25X25 MM |
| 25 | 17091071 | SPRING WASHER Ø12X24 SP=2,8 MM |
