8281SM32.10

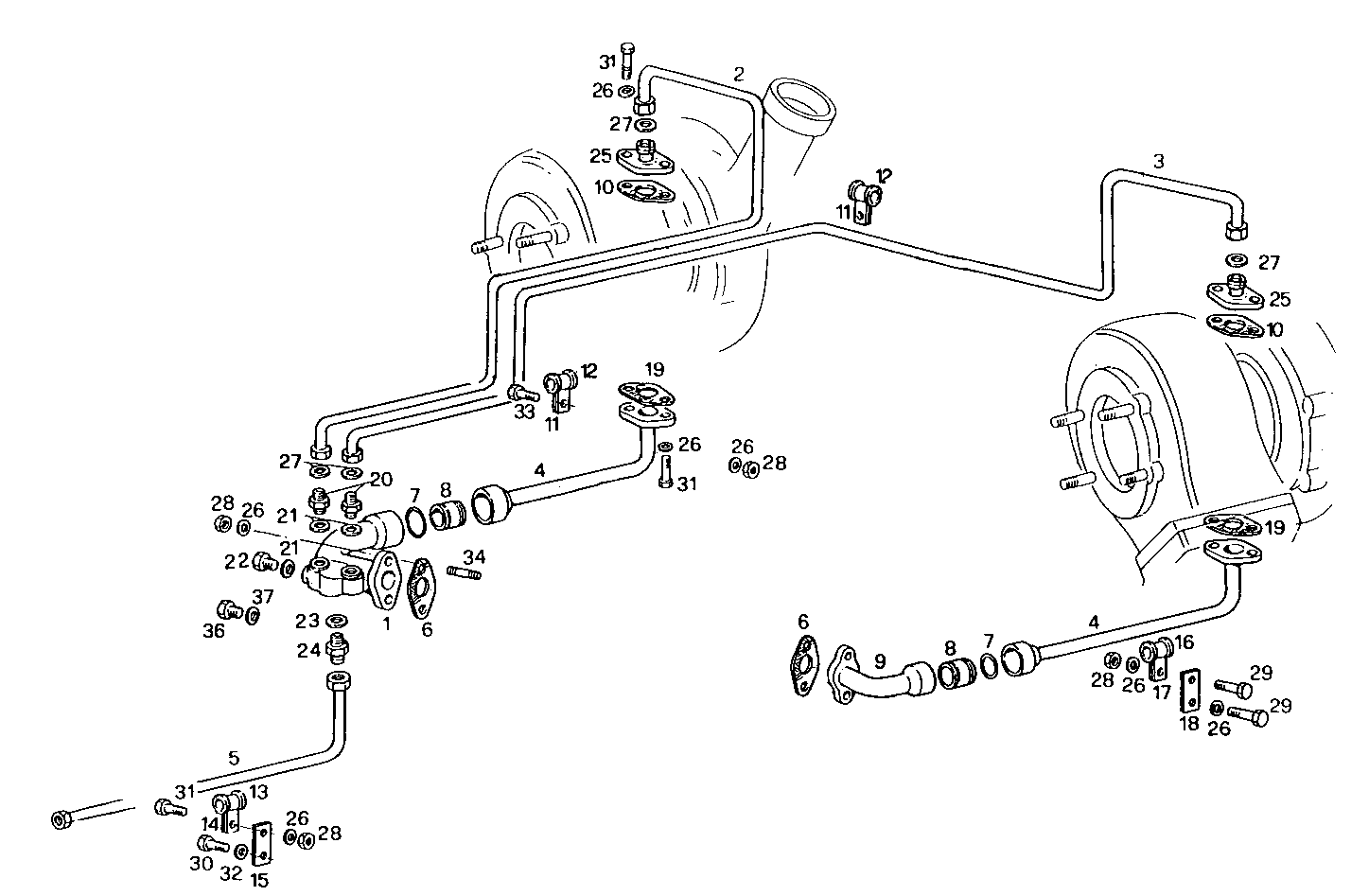

2400.020/02 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 8110935 DISTRIBUTOR
2 8006227 OIL LINE
3 8006228 OIL LINE
4 8110939 OIL LINE
5 8008324 OIL LINE
6 98415923 FLAT ENGINE GASKET
7 17288581 O-RING Ø23,3 MM SP=3,5 MM
8 8110942 SPACING BAR
9 8110941 OIL LINE
10 98415922 FLAT ENGINE GASKET
11 4755963 FASTENING BRACKET
12 4755964 RUBBER PAD
13 4757122 RUBBER PAD
14 4763804 FASTENING BRACKET
15 8006219 RETAINER
16 4747140 RUBBER PAD
17 4810595 FASTENING BRACKET
18 8005101 RETAINER
19 98412509 FLAT ENGINE GASKET
20 16500311 PIPE SOCKET M16X1,5/M18X1,5
21 4858609 WASHER Ø16X22 MM SP=1,5 MM
22 16992440 THREADED PLUG M16X1,5
23 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
24 4741602 THREADED UNION LEFT
25 4764795 THREADED UNION
26 11193874 WASHER Ø8X16 MM
27 8024647 GASKET Ø8 MM
28 17037931 HEXAGON NUT M8X1,25
29 16043124 SCREW M8X14 MM
30 15970521 HEXAGON BOLT M10X20 MM
31 16605534 HEXAGON BOLT M8X20 MM (10.9)
32 17090174 SPRING WASHER Ø10X20 MM
33 16605424 SCREW M8X16 MM (8.8)
34 13543621 STUD M8X16X30 MM
36 16992311 LOCK PLUG M14X1,5
37 4858608 SEAL GASKET dia.14x19,5x1,5
