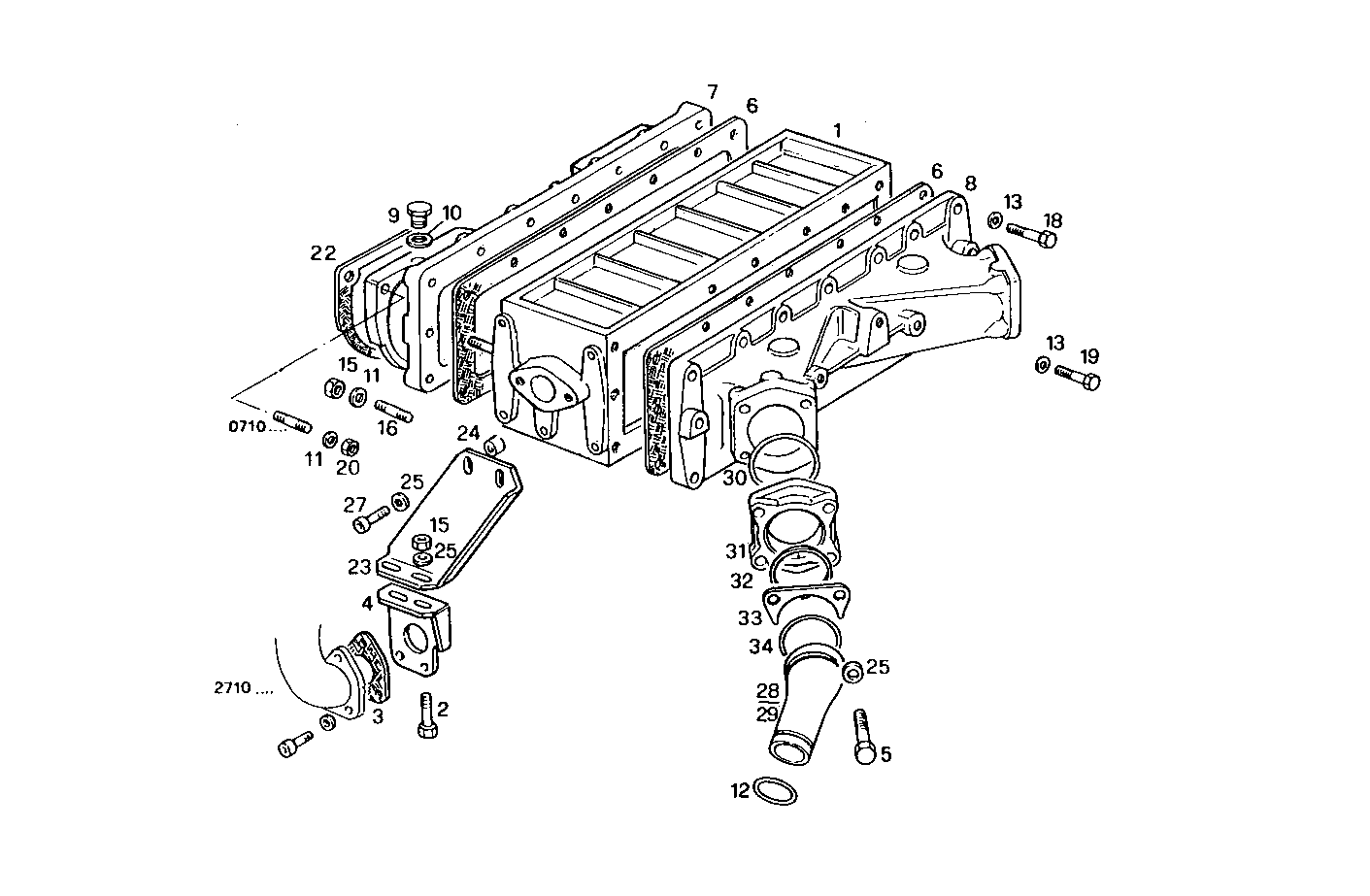

| Item |
Part number |
Description |
|
1 |
8026715 |
SPACING BAR |
|
2 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
3 |
4863490 |
FLAT ENGINE GASKET |
|
4 |
8112532 |
RETAINER |
|
5 |
16044021 |
HEXAGON BOLT M8X1,25X40 MM |
|
6 |
8008906 |
GASKET |
|
7 |
8105947 |
AIR HOOD |
|
8 |
8016672 |
AIR HOOD |
|
9 |
10304911 |
THREADED PLUG M20X1,5 |
|
10 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
12 |
14464881 |
WASHER |
|
13 |
17094914 |
WASHER 8x16 |
|
15 |
17037931 |
HEXAGON NUT M8X1,25 |
|
16 |
16729324 |
STUD M8X12X20 MM |
|
18 |
16606024 |
SCREW M8X45 MM |
|
19 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
20 |
17038221 |
HEXAGON NUT M10 |
|
22 |
4786886 |
GASKET |
|
23 |
8112533 |
RETAINER |
|
24 |
8109399 |
SPACING BAR |
|
25 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
27 |
16691024 |
CYLIND-HEAD SCREW M8X45 MM |
|
28 |
8106025 |
AIR PIPE/DUCT RIGHT |
|
29 |
8106026 |
AIR PIPE/DUCT LEFT |
|
30 |
17291281 |
O-RING Ø94,84 MM SP=3,53 MM |
|
31 |
8105950 |
FLANGE |
|
32 |
8105951 |
CIRCLIP |
|
33 |
8105952 |
PLATE |
|
34 |
14465381 |
O-RING SP=3,53 MM |
