8281SM32.10

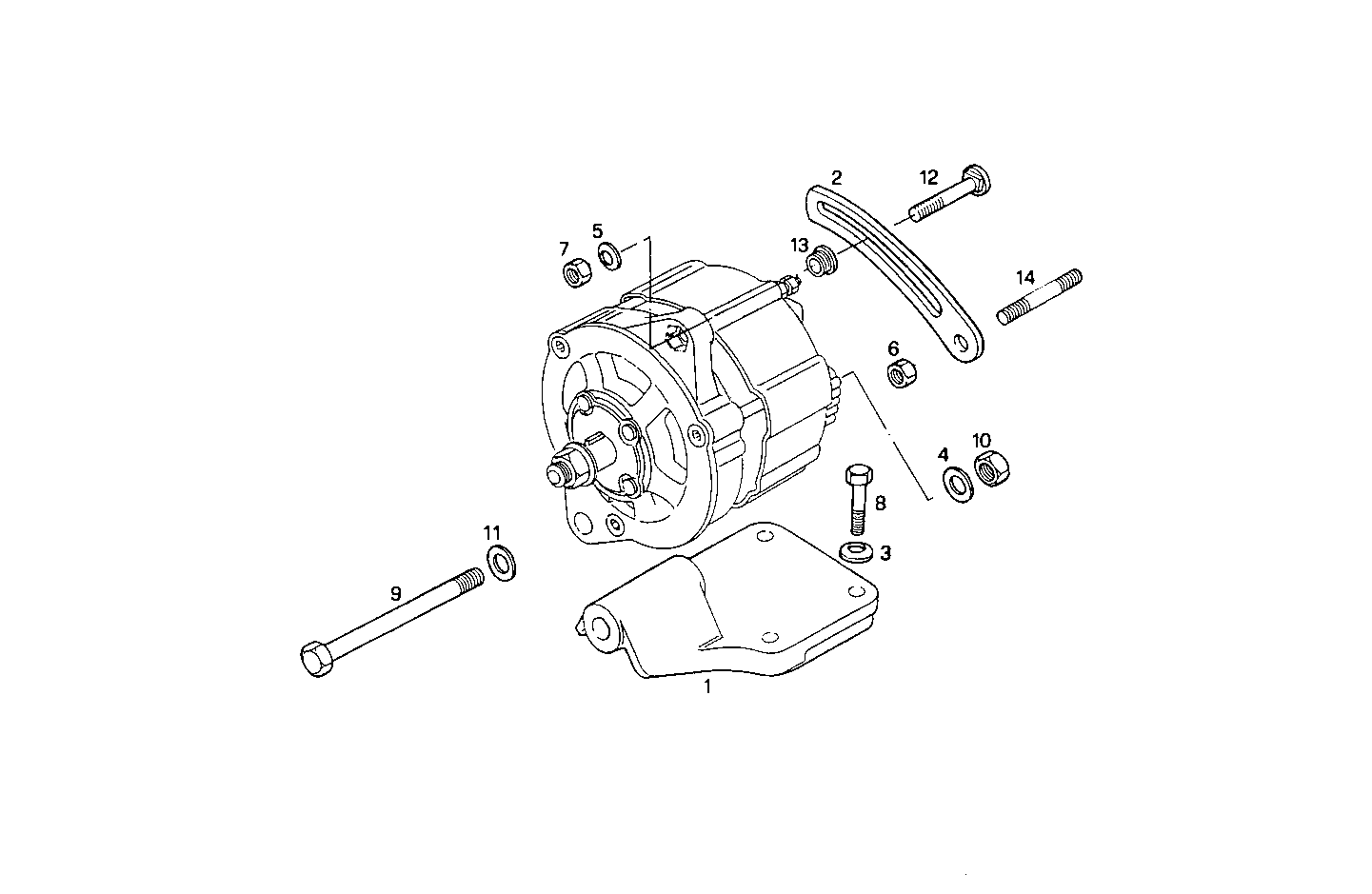

4010.011 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 98418153 | GENERATOR SUPPORT |
| 2 | 4763084 | BRACE/STRUT |
| 3 | 11190679 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 4 | 11190779 | SPRING WASHER Ø12X24 SP=2,8 MM |
| 5 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 6 | 12574511 | NUT M10X1,25 |
| 7 | 12164711 | HEXAGON NUT M10X1,25 |
| 8 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 9 | 15541821 | HEXAGON BOLT M12X1,25X120 MM [up to 565948] |
| 10 | 16101511 | HEXAGON NUT M12X1,25 |
| 11 | 12646901 | WASHER Ø12X28 MM |
| 12 | 4799044 | THREADED PIN |
| 13 | 4677044 | SPACING BAR |
| 14 | 13449321 | STUD M10X1,25X15X20 MM |
