8281SRE10.00

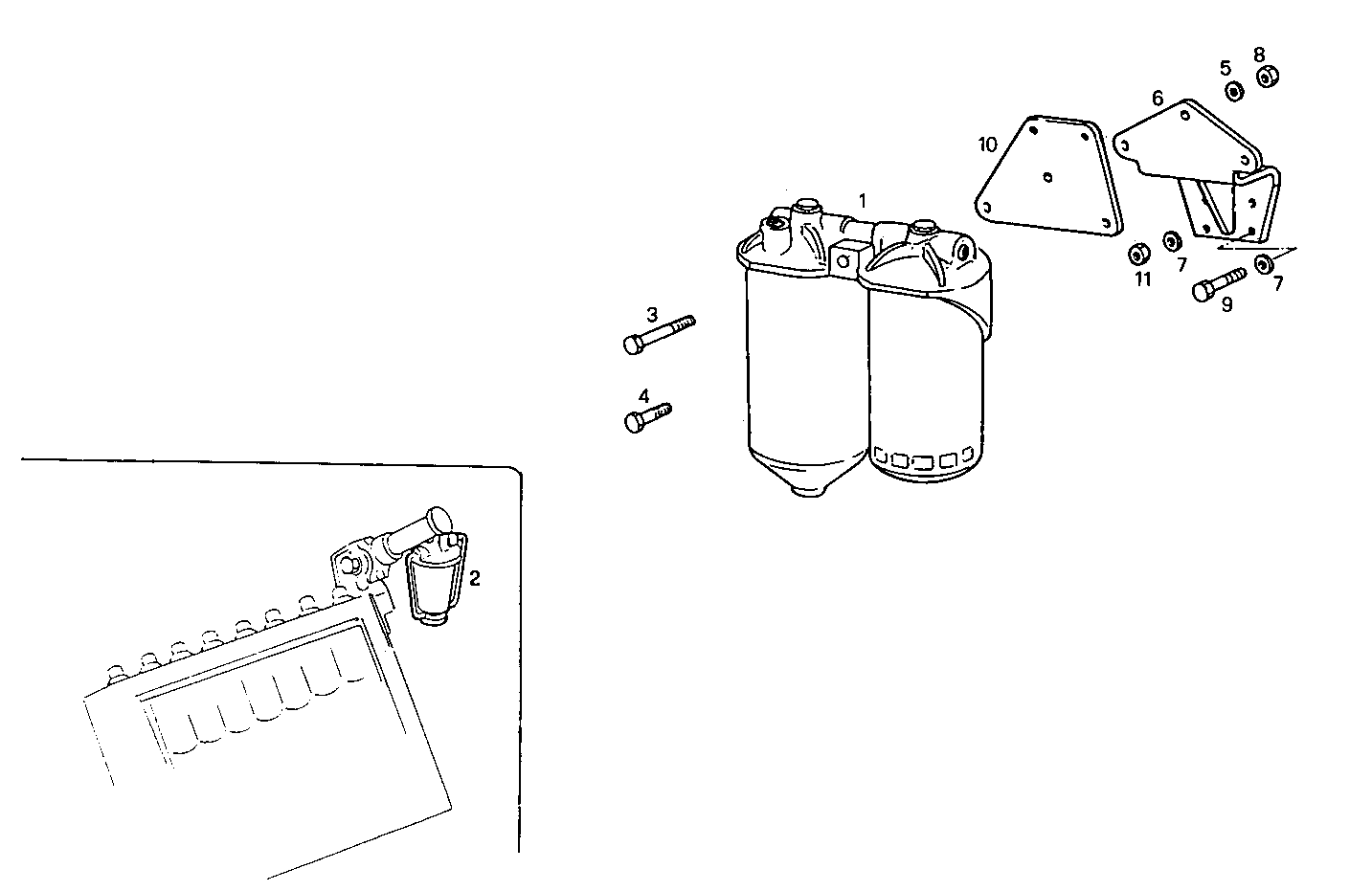

2000.060 FUEL FILTER
Item | Part number | Description |
---|---|---|
1 | 4690738 | FUEL FILTER ASSY |
2 | 8110468 | FUEL FILTER |
3 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
4 | 16609224 | HEXAGON BOLT M10X140 MM |
5 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
6 | 8018243 | SUPPORT |
7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
8 | 17038121 | HEXAGON NUT M10 |
10 | 8022757 | RETAINER |
11 | 17037931 | HEXAGON NUT M8X1,25 |
