8281SRE10.00

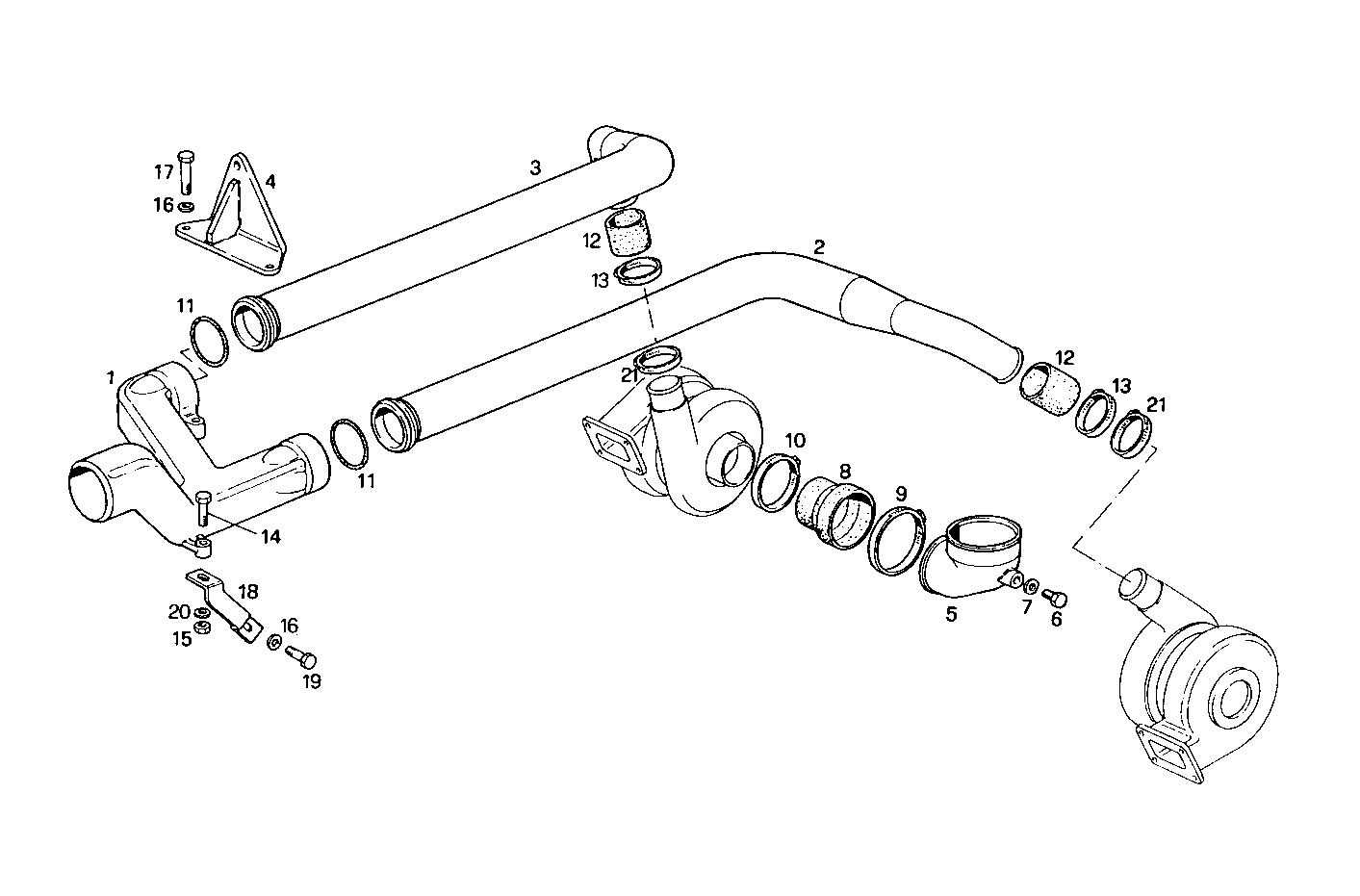

2420.067 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8014668 | AIR HOOD |
| 2 | 4807819 | AIR PIPE/DUCT M6 |
| 3 | 4807822 | AIR PIPE/DUCT |
| 4 | 8019515 | RETAINER |
| 5 | 8109999 | INTAKE ELBOW |
| 6 | 11903111 | LOCK PLUG M10X1,25 |
| 7 | 4858606 | GASKET Ø10X14X1 MM |
| 8 | 8019166 | RUBBER SLEEVE Ø70/80 MM |
| 9 | 17765191 | CLIP Ø70/90 MM |
| 10 | 17765291 | CLIP Ø80/100 MM |
| 11 | 17296381 | O-RING |
| 12 | 98420479 | WATER HOSE |
| 13 | 17764891 | CLIP Ø40/60 MM |
| 14 | 16605924 | SCREW M8X40 MM |
| 15 | 17037931 | HEXAGON NUT M8X1,25 |
| 16 | 17094914 | WASHER 8x16 |
| 17 | 16606024 | SCREW M8X45 MM |
| 18 | 8014670 | RETAINER |
| 19 | 16605524 | HEXAGON BOLT M8X20 MM |
| 20 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 21 | 4807824 | PIPE CLIP |
