8281SRE10.00

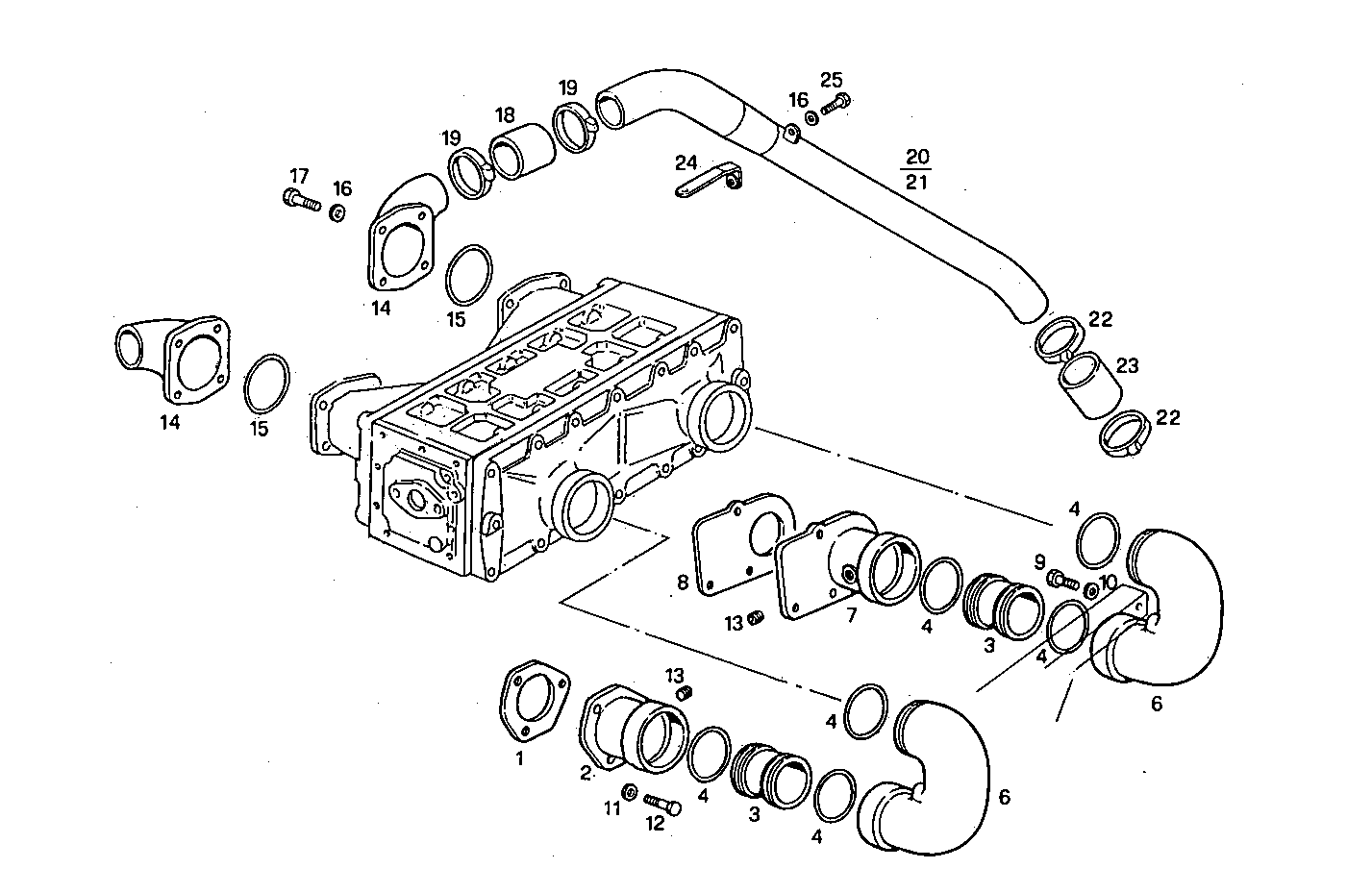

2420.109 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8013481 INTAKE ELBOW GASK.
2 8108540 AIR MANIFOLD LEFT
3 8108544 SPACING BAR
4 17296981 O-RING Ø91,67 MM SP=3,53 MM
6 8012507 AIR PIPE/DUCT
7 8108542 WATER PIPE RIGHT
8 8013482 INTAKE ELBOW GASK.
9 16587124 HEXAGON BOLT M10X25 MM
10 17090174 SPRING WASHER Ø10X20 MM
11 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
12 16605624 HEXAGON BOLT M8X25 MM (8.8)
13 4742387 PLUG
14 8012506 AIR PIPE/DUCT
15 17291281 O-RING Ø94,84 MM SP=3,53 MM
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 16605824 HEXAGON BOLT M8X35 MM
18 8012626 RUBBER SLEEVE
19 4830091 CLIP
20 8022064 AIR MANIFOLD LEFT
21 8022065 AIR MANIFOLD RIGHT
22 98490783 CLIP Ø55-65 MM
23 98420479 WATER HOSE
24 8022462 RETAINER
25 16605424 SCREW M8X16 MM (8.8)
