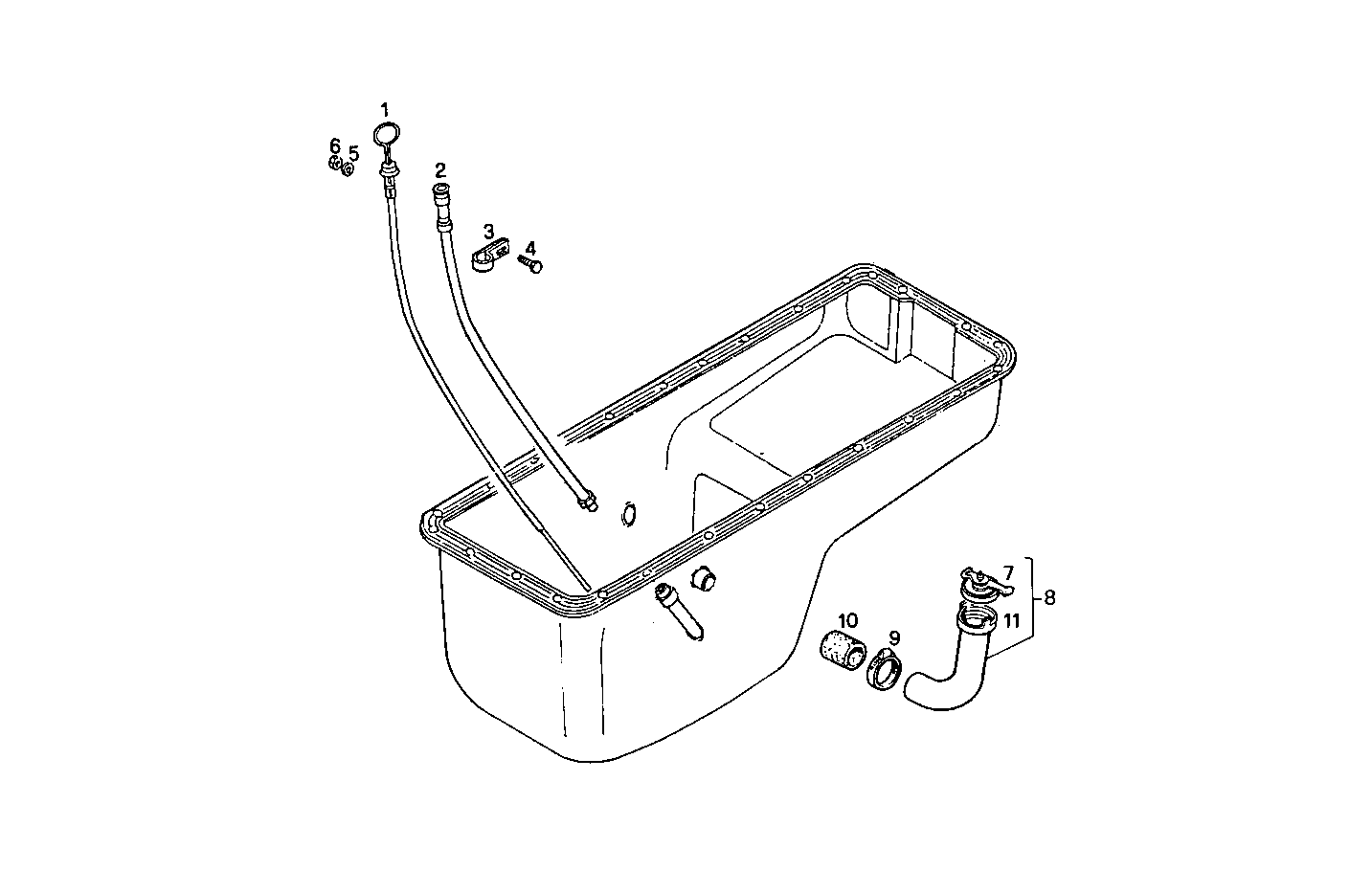

2710.031 OIL DIPSTICK

Iveco/FPT OIL DIPSTICK

Item Part number Description
1 4696147 OIL DIPSTICK
2 8007179 ROD GUIDE
3 8100228 CLIP
4 16605524 HEXAGON BOLT M8X20 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 17037931 HEXAGON NUT M8X1,25
7 61688466 PLUG
8 8018576 FILLER NECK ASSY
9 17764791 CLIP Ø32/50 MM
10 4935775 RUBBER SLEEVE
11 8018577 OIL FILLER PIPE
