8281SRE10.00

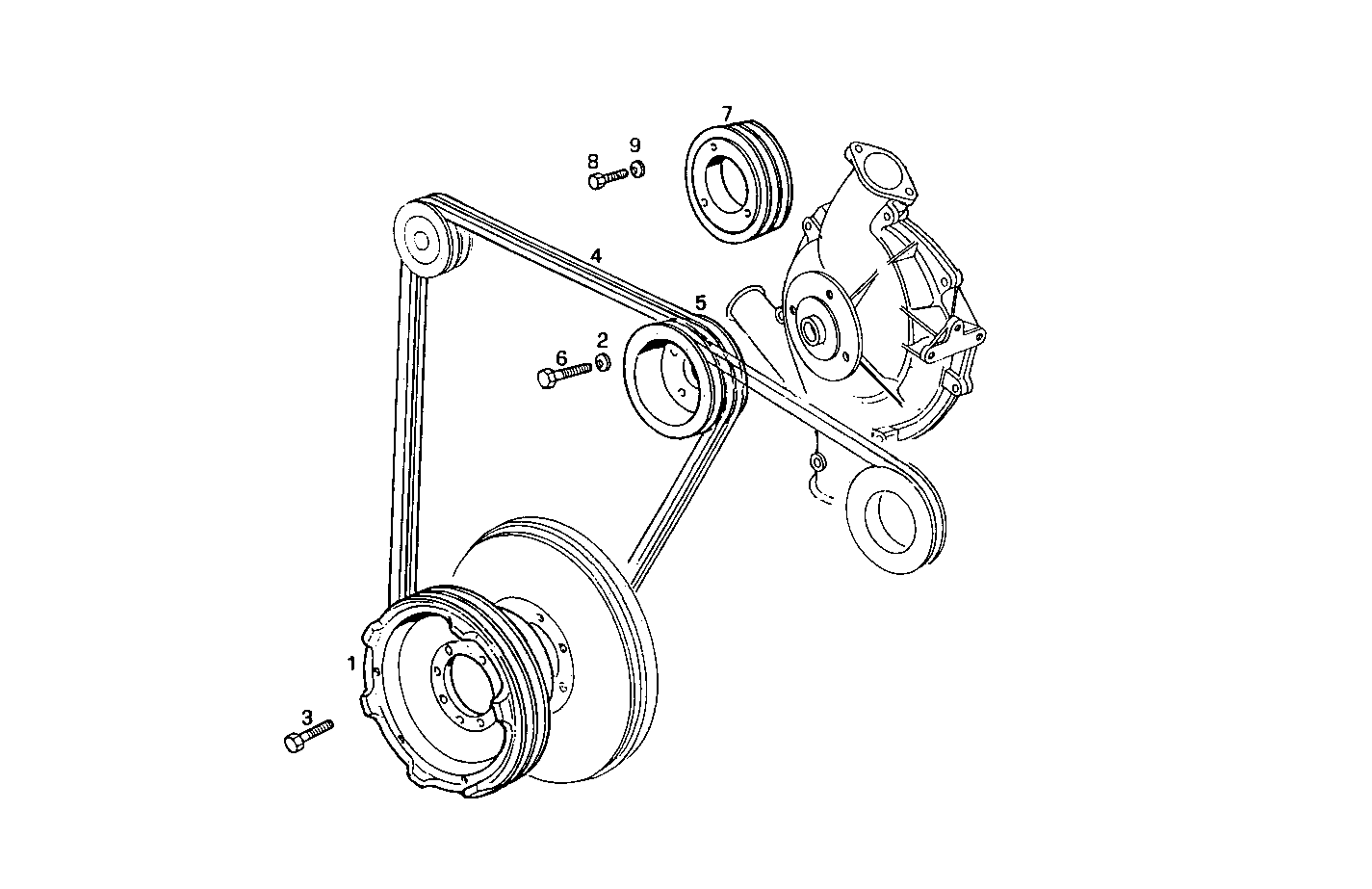

3240.098 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 98472209 | PULLEY |
| 2 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 3 | 14255030 | LOCKING SCREW M14X1,5X60 MM |
| 4 | 4814683 | V-BELT KIT |
| 5 | 8010805 | PULLEY |
| 6 | 16606524 | HEXAGON BOLT M8X70 MM |
| 7 | 8104376 | PULLEY |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
| 9 | 17089574 | WASHER Ø8X16 MM |
