8281SRE10.00

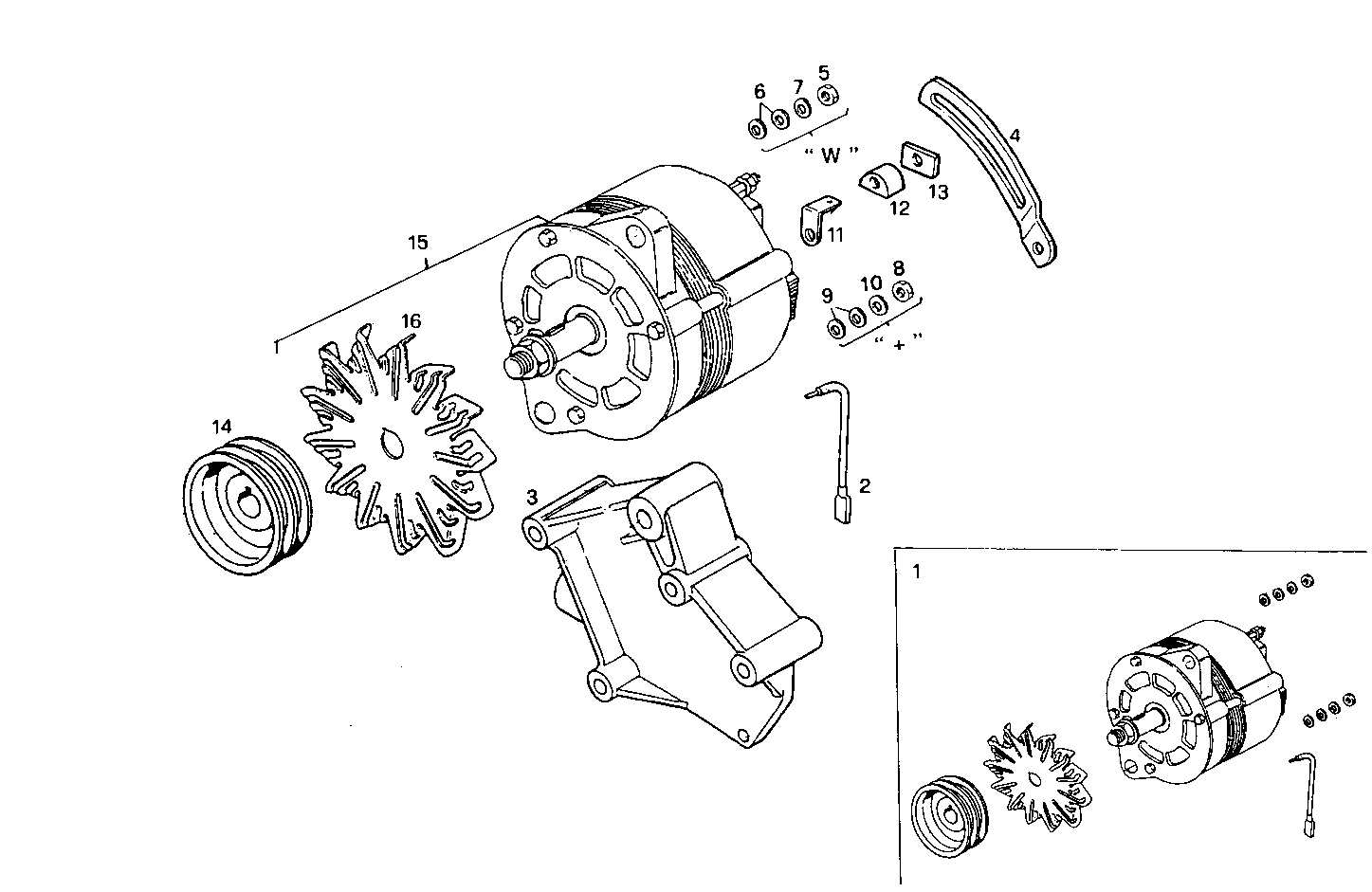

A14010017 SELF-REGULATED ALTERNATOR - 24V 80A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 8027463 | ALTERNATOR ASSY |
| 2 | 8019531 | WIRE/CABLE W |
| 3 | 98424125 | GENERATOR SUPPORT |
| 4 | 98424123 | TIE ROD |
| 5 | 17037721 | NUT M5X0,8 |
| 6 | 17094504 | WASHER Ø5,3X10 MM |
| 7 | 10615379 | TOOTHED WASHER Ø5,3 MM |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 17094974 | WASHER |
| 10 | 17494834 | WASHER Ø8 MM |
| 11 | 12277944 | CONNECTION D+ |
| 12 | 98424122 | SPACING BAR |
| 13 | 98424121 | LOCKING PLATE |
| 14 | 98465402 | PULLEY |
| 15 | 98424748 | ALTERNATOR ASSY 28V 80A BOSCH |
| 16 | 4757196 | GENERATOR FAN BOSCH |
