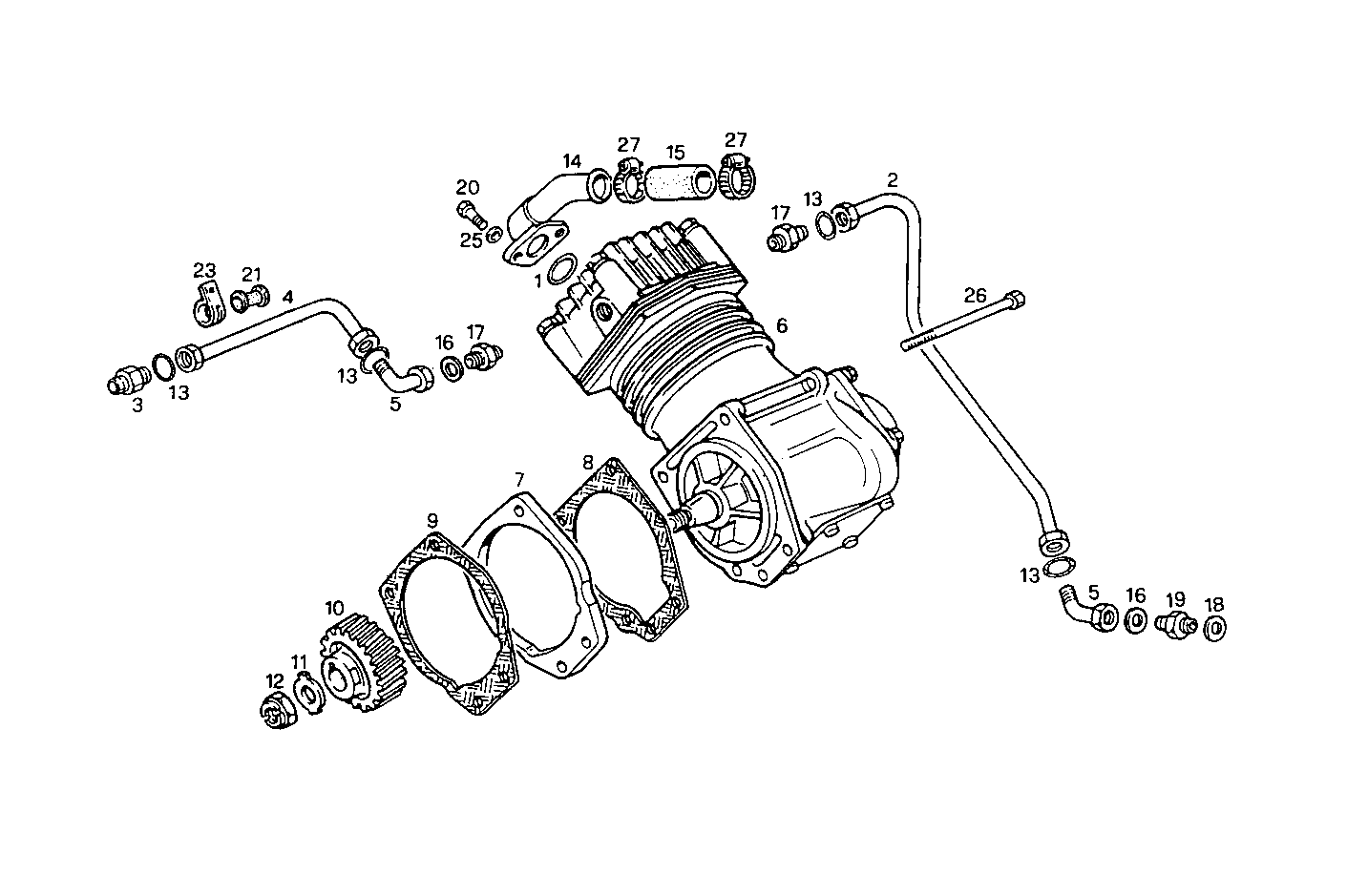

Item |
Part number |
Description |
1 |
619376 |
FLAT ENGINE GASKET |
2 |
8027304 |
WATER PIPE |
3 |
4821148 |
SCREW CONNECTOR [up to 307842] |
4 |
8027699 |
WATER PIPE |
5 |
16512111 |
PIPE SOCKET |
6 |
99440235 |
AIR COMPRESSOR ASSY BENDIX |
7 |
4672628 |
SPACING BAR |
8 |
4864032 |
FLAT ENGINE GASKET |
9 |
4715152 |
FLAT ENGINE GASKET |
10 |
4688638 |
COMP. DRIVE GEAR |
11 |
4709364 |
LOCKING PLATE |
12 |
99471892 |
HEXAGON NUT |
13 |
8024648 |
O-RING Ø10 MM |
14 |
4609413 |
AIR PIPE/DUCT |
15 |
4722197 |
RUBBER SLEEVE |
16 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
17 |
4802309 |
PIPE SOCKET |
18 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
19 |
4741602 |
THREADED UNION LEFT |
20 |
16043521 |
SCREW M8X22 |
21 |
4757122 |
RUBBER PAD |
23 |
4774442 |
FASTENING BRACKET |
25 |
11193879 |
SPRING WASHER Ø8X16 MM |
26 |
15969921 |
SCREW |
27 |
12173890 |
CLIP Ø25/40 MM |
