8281SRG75.10A500

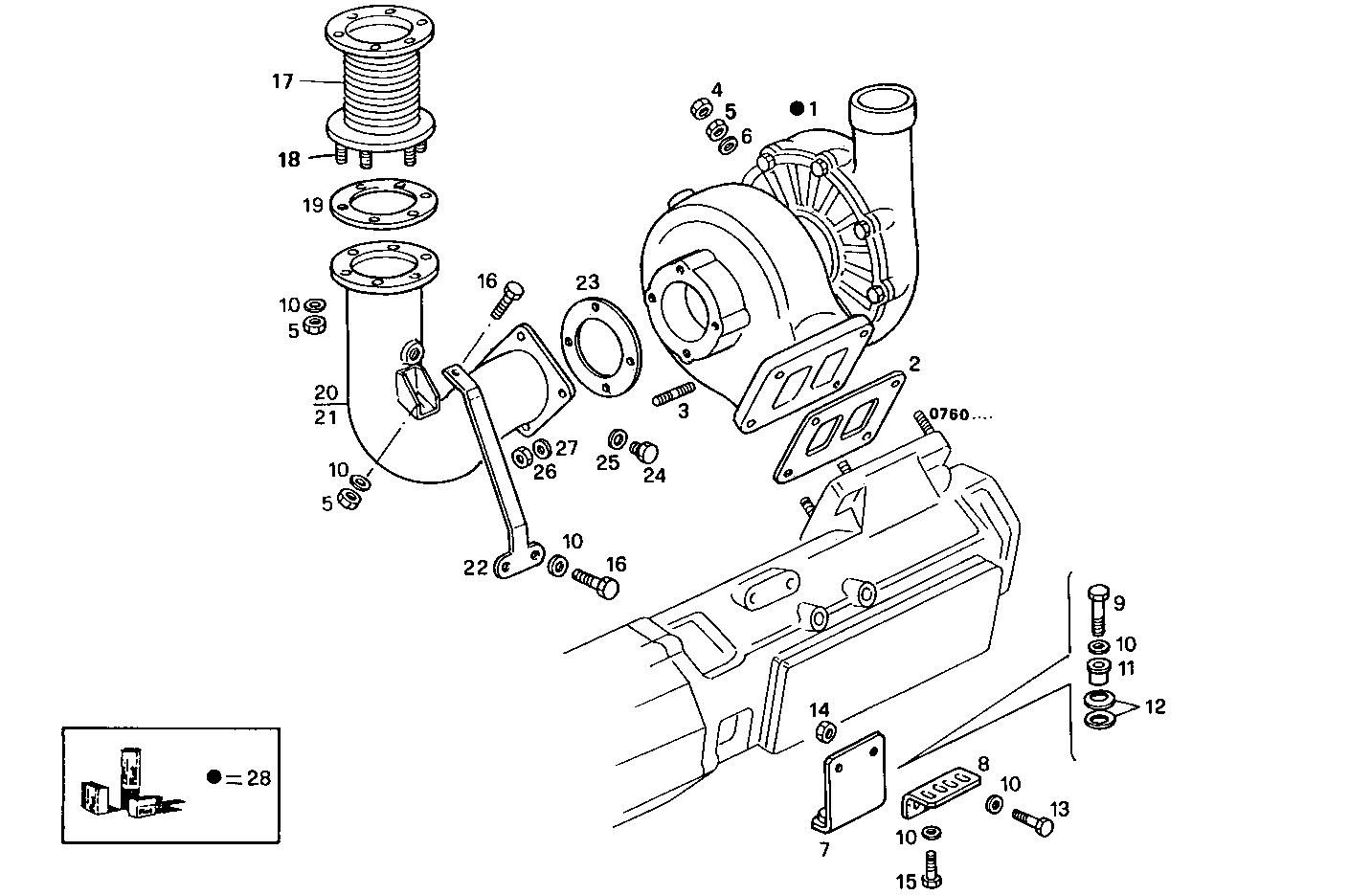

2400.126 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 8019362 TURBOCHARGER ASSY HOLSET
2 8027510 FLAT ENGINE GASKET
3 13516921 STUD M8X12X22 MM
4 16979731 NUT M10X1,25
5 17038221 HEXAGON NUT M10
6 16665614 WASHER Ø10,5 MM
7 8112566 RETAINER
8 8112565 RETAINER
9 11307021 HEXAGON BOLT M10X40 MM
10 17090174 SPRING WASHER Ø10X20 MM
11 8110050 BUSH
12 8110051 SPRING
13 15004021 HEXAGON BOLT M10X1,25X25 MM
14 17153021 HEXAGON NUT M10X1,25
15 15970521 HEXAGON BOLT M10X20 MM
16 15970621 SCREW M10X1,25X22
17 8012463 EXHAUST BELLOWS
18 13449524 STUD M10X1,25X15X25
19 8009600 GASKET
20 8110580 EXHAUST ELBOW LEFT
21 8110581 EXHAUST ELBOW RIGHT
22 8106127 RETAINER
23 8111833 GASKET
24 16992211 THREADED PLUG M12X1,5
25 4858607 WASHER Ø12X17 MM SP=1,5 MM
26 17037931 HEXAGON NUT M8X1,25
27 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
28 8092775 KIT-TURBOCHARGER
