8281SRG85.10

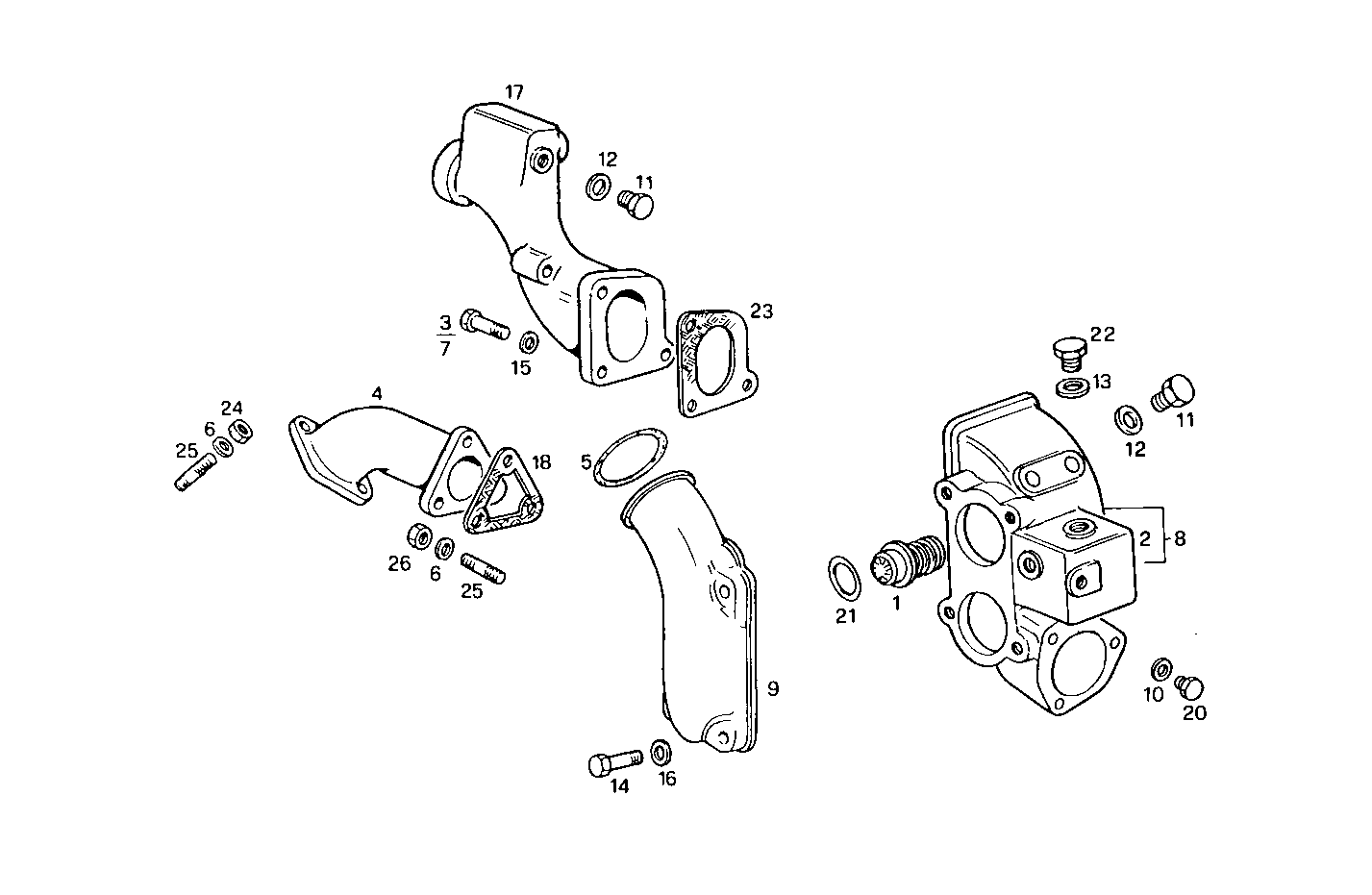

3220.104 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 99438848 THERMOSTAT 79° GILARDINI [from 227935]
2 8025676 CHOCK
3 11306921 SCREW M10X1,25X30
4 4751003 WATER PIPE
5 17290181 O-RING Ø59,92 MM SP=3,53 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 15972221 SCREW M10X1,25X120
8 8025225 THERMOSTAT BODY
9 4725688 COVER
10 4858608 SEAL GASKET dia.14x19,5x1,5
11 16992411 THREADED PLUG M16X1,5
12 4858609 WASHER Ø16X22 MM SP=1,5 MM
13 11271460 GASKET Ø21X26X1,5 MM
14 15970921 HEXAGON BOLT M10X1,25X35 MM
15 17090174 SPRING WASHER Ø10X20 MM
16 17090474 SPRING WASHER Ø10X27 MM SP=2,5
17 8111225 WATER CONVEYOR
18 4863488 GASKET
20 16992311 LOCK PLUG M14X1,5
21 98465113 O-RING Ø60 MM
22 4584394 PLUG 1/2''
23 4863517 FLAT ENGINE GASKET
24 17037931 HEXAGON NUT M8X1,25
25 16729324 STUD M8X12X20 MM
26 16979421 NUT
