8281SRG85.10A500

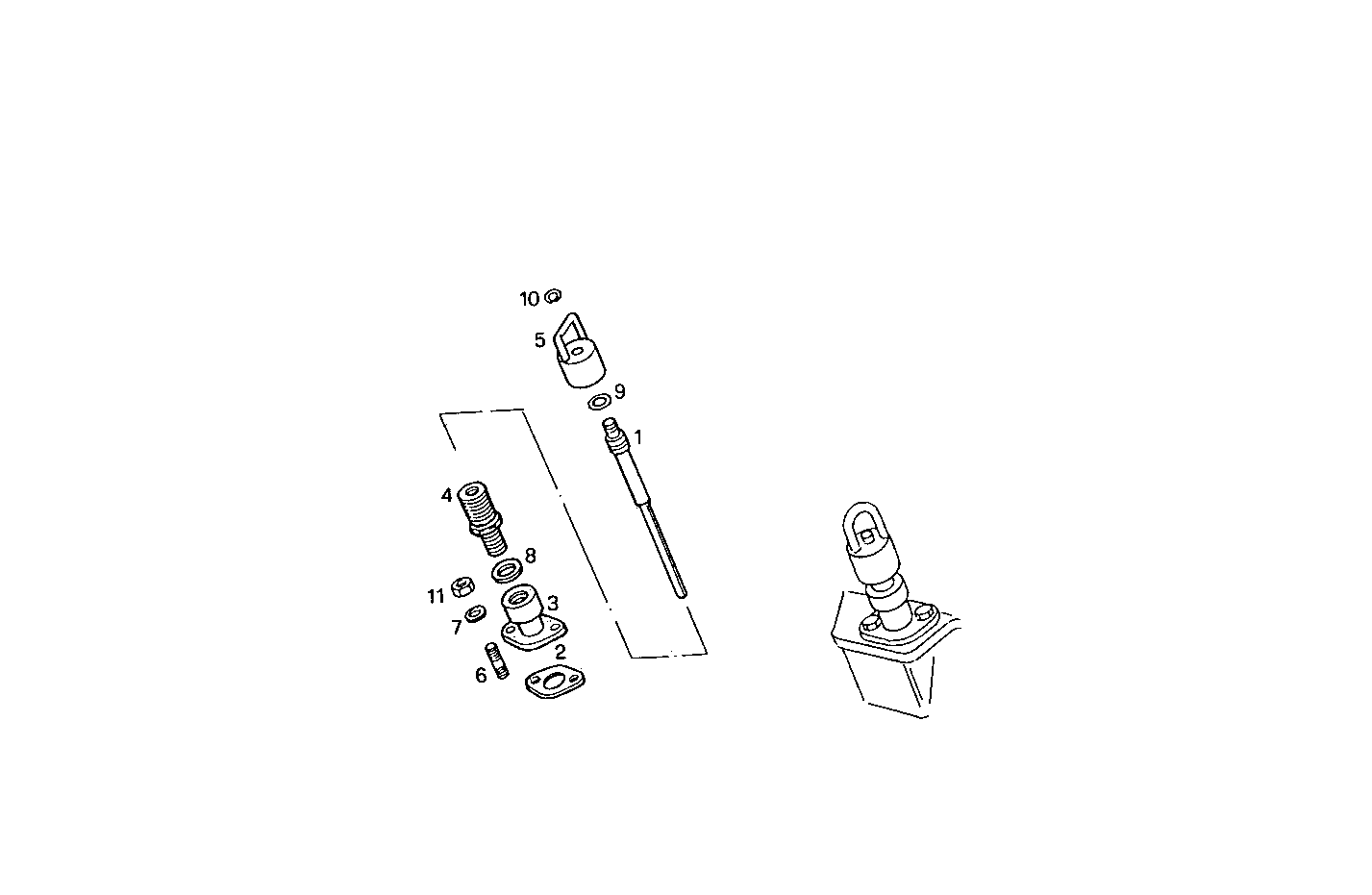

2710.085 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 8016565 | OIL DIPSTICK |
| 2 | 4863361 | GASKET |
| 3 | 8024340 | FLANGE |
| 4 | 8016564 | THREADED UNION |
| 5 | 4882777 | PLUG |
| 6 | 13543321 | STUD M8X16X20 MM |
| 7 | 11193879 | SPRING WASHER Ø8X16 MM |
| 8 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 9 | 4854896 | O-RING |
| 10 | 16865076 | CIRCLIP |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
