8281SRG85.10A500

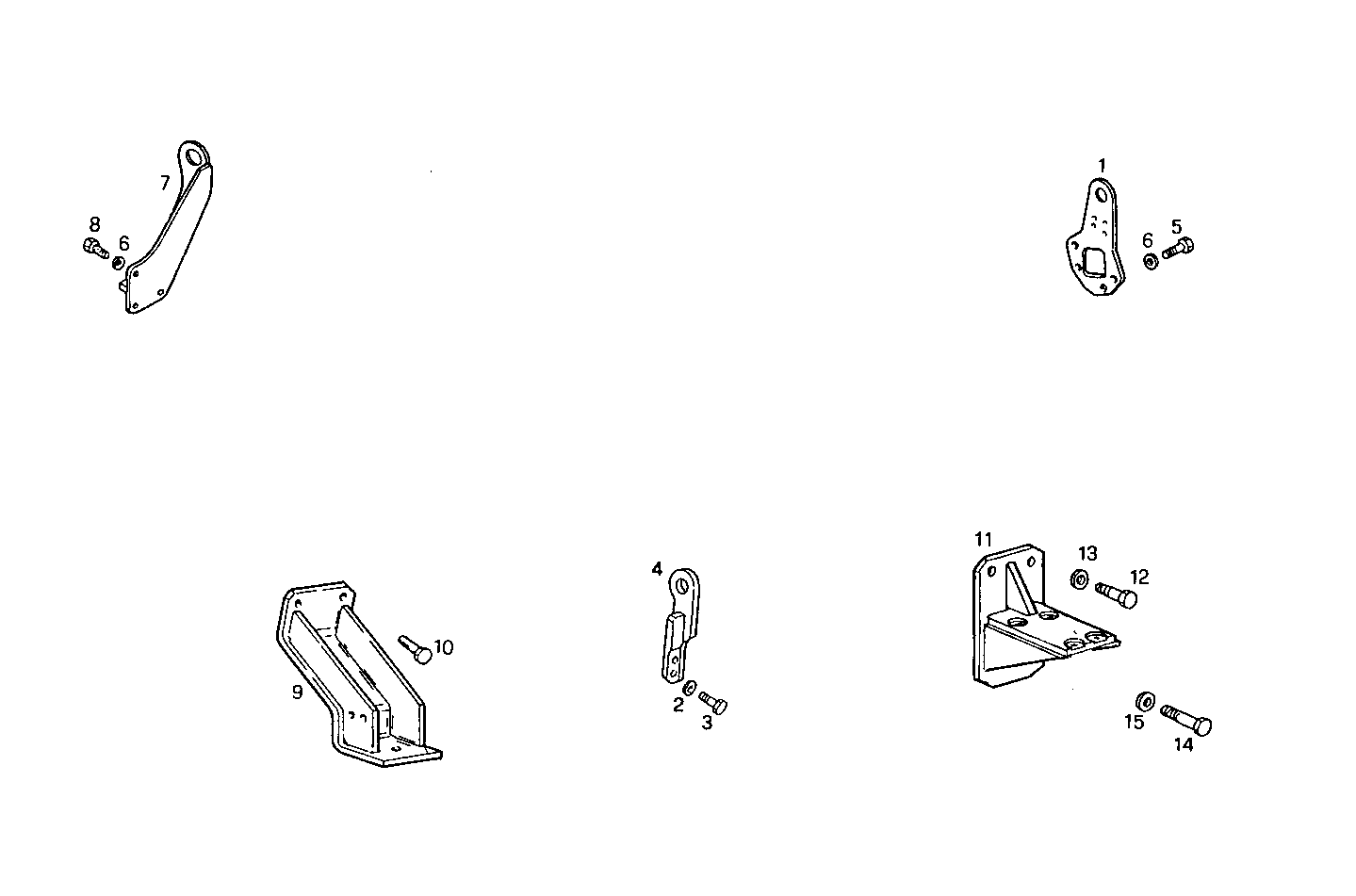

4500.110 ENGINE SUSPENSION
| Item | Part number | Description |
|---|---|---|
| 1 | 4796633 | HOOK |
| 2 | 17091674 | WASHER Ø14X27X3,0 MM |
| 3 | 11394321 | HEXAGON BOLT M14X45 MM |
| 4 | 8026583 | HOOK |
| 5 | 11306921 | SCREW M10X1,25X30 |
| 6 | 11198371 | SPRING WASHER Ø10X20 MM |
| 7 | 4720469 | HOOK FRONT RIGHT |
| 8 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 9 | 8012656 | FRONT ENG. MOUNT |
| 10 | 14274521 | SCREW M12X1,25X30 |
| 11 | 8005322 | HOOK |
| 12 | 11391521 | HEXAGON BOLT M16X45 MM |
| 13 | 17092374 | SPRING WASHER Ø16X34X3,6 MM |
| 14 | 15984321 | HEXAGON BOLT M18X1,5 |
| 15 | 17092574 | SPRING WASHER Ø18X36X4,2 MM |
