8281SRi10.00

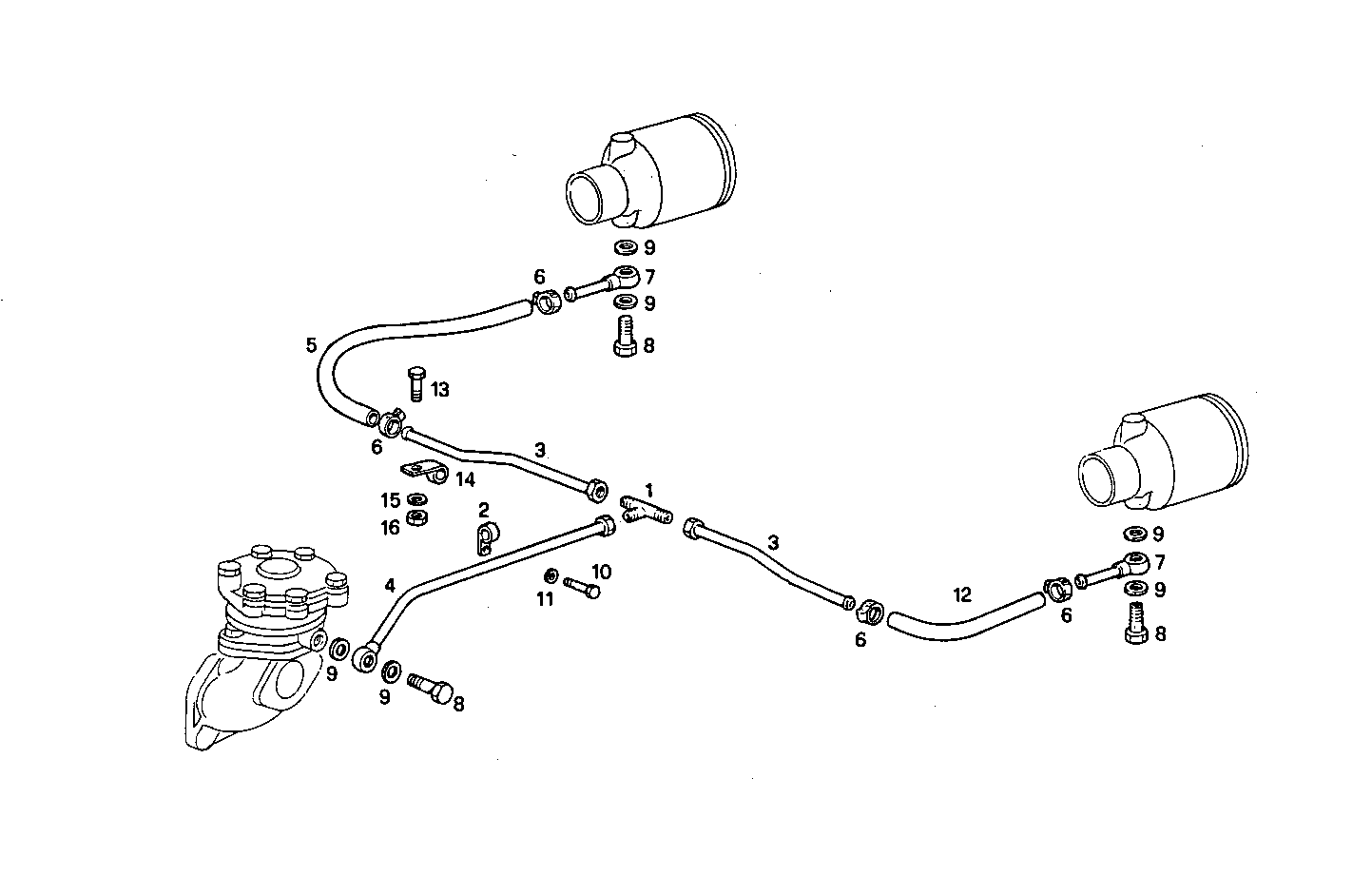

0450.034/02 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4677909 | T-COUPLING |
| 2 | 4929652 | RETAINER |
| 3 | 8108689 | BREATHER PIPE |
| 4 | 8014257 | AIR PIPE/DUCT |
| 5 | 19064687 | AIR HOSE L=675 MM |
| 6 | 17764292 | HOSE CLIP Ø10/16 MM |
| 7 | 8014188 | SWIVEL COUPLING |
| 8 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 9 | 4858606 | GASKET Ø10X14X1 MM |
| 10 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 11 | 17089574 | WASHER Ø8X16 MM |
| 12 | 19064187 | AIR HOSE L=550 MM |
| 13 | 16605524 | HEXAGON BOLT M8X20 MM |
| 14 | 10449890 | PIPE CLIP Ø53 MM |
| 15 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 16 | 17037931 | HEXAGON NUT M8X1,25 |
