8281SRi10.00

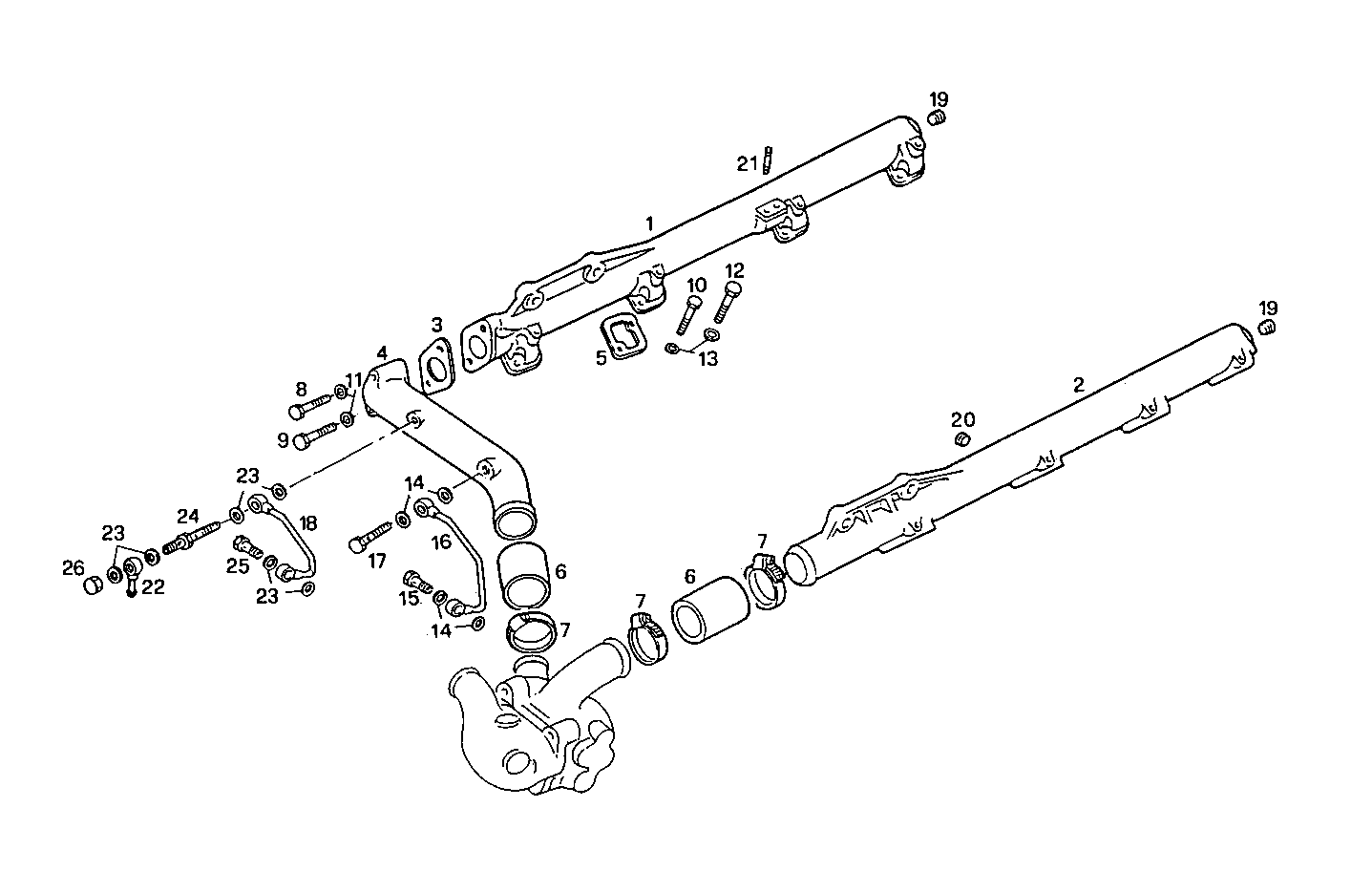

3210.044 WATER LINES
| Item |
Part number |
Description |
|
1 |
4760275 |
WATER MANIFOLD |
|
2 |
4678211 |
WATER MANIFOLD |
|
3 |
98469577 |
FLAT ENGINE GASKET |
|
4 |
4793016 |
WATER PIPE |
|
5 |
98418857 |
FLAT ENGINE GASKET |
|
6 |
98420477 |
WATER HOSE |
|
7 |
17764891 |
CLIP Ø40/60 MM |
|
8 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
9 |
16044524 |
SCREW M8X65 |
|
10 |
16605924 |
SCREW M8X40 MM |
|
11 |
17089874 |
WASHER Ø8X22 MM |
|
12 |
16606624 |
HEXAGON BOLT M8X80 MM |
|
13 |
12646721 |
WASHER Ø8X20 MM |
|
14 |
10282460 |
SEAL GASKET Ø14X20 MM |
|
15 |
10184311 |
SCREW CONNECTOR M14X1,5 |
|
16 |
4792943 |
WATER PIPE |
|
17 |
8109048 |
SCREW CONNECTOR |
|
18 |
8010845 |
WATER PIPE |
|
19 |
10270150 |
LOCK PLUG M24X1,5 |
|
20 |
14325401 |
LOCK PLUG M24X1,5 |
|
21 |
13540921 |
STUD M6X12X16 MM |
|
22 |
4551493 |
THREADED UNION |
|
23 |
4858605 |
WASHER Ø8X12 MM |
|
24 |
11901611 |
PIPE SOCKET |
|
25 |
4864078 |
BANJO BOLT M8X1,25 |
|
26 |
11902017 |
LOCK PLUG M8 |
