8281SRi10.00

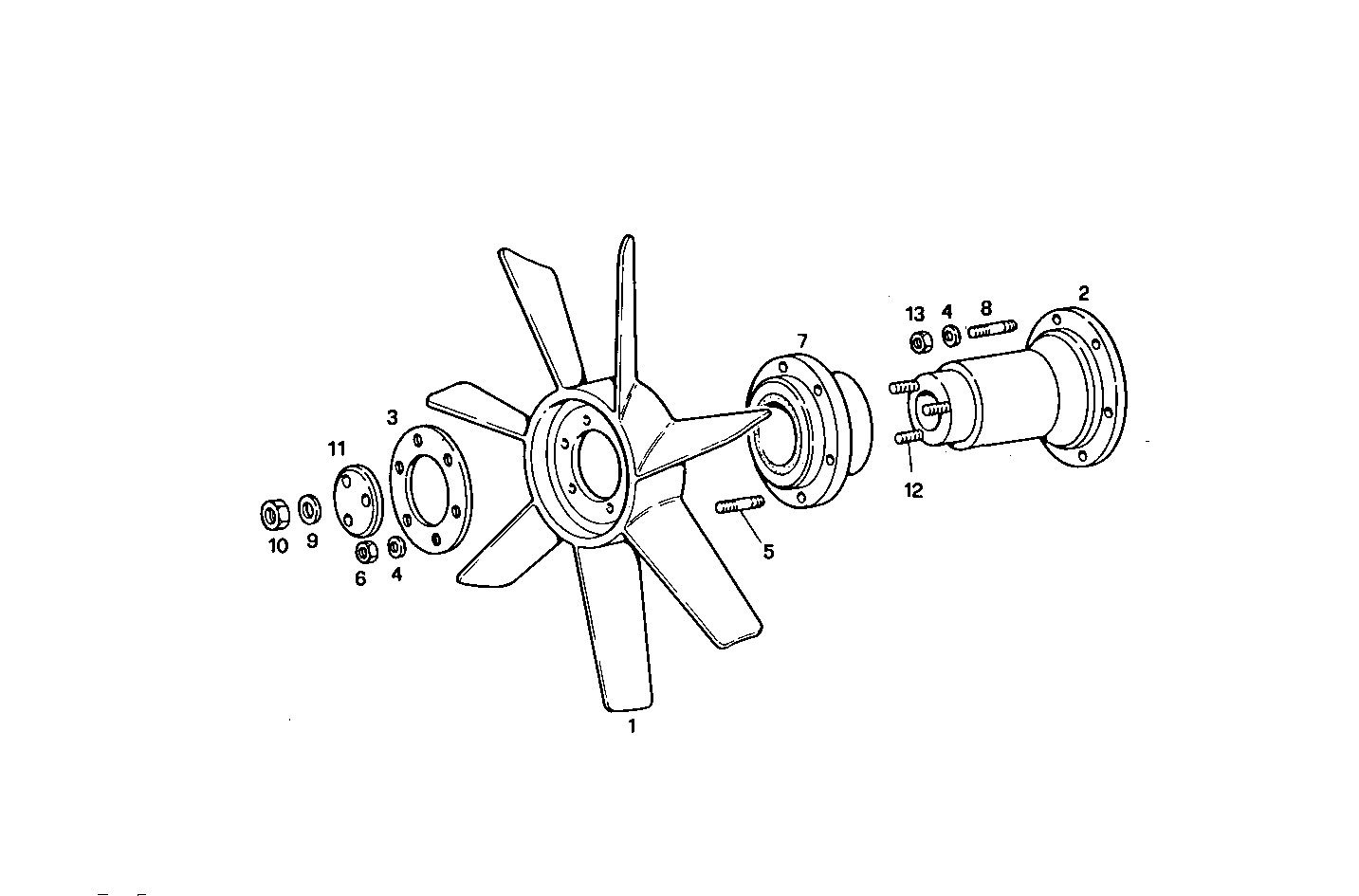

A08000026 PULLER FAN - on engine axis
| Item | Part number | Description |
|---|---|---|
| 1 | 4936057 | FAN Ø700 MM |
| 2 | 8108882 | HUB |
| 3 | 4933279 | RING |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 16729224 | STUD M8X16 MM |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 8108850 | FLEXIBLE COUPLING |
| 8 | 16747724 | STUD |
| 9 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 10 | 17038221 | HEXAGON NUT M10 |
| 11 | 8108876 | SPACING BAR |
| 12 | 13546421 | STUD M10X1,25X48 MM |
| 13 | 17157021 | NUT M8X1,25 |
