8281SRi10.00

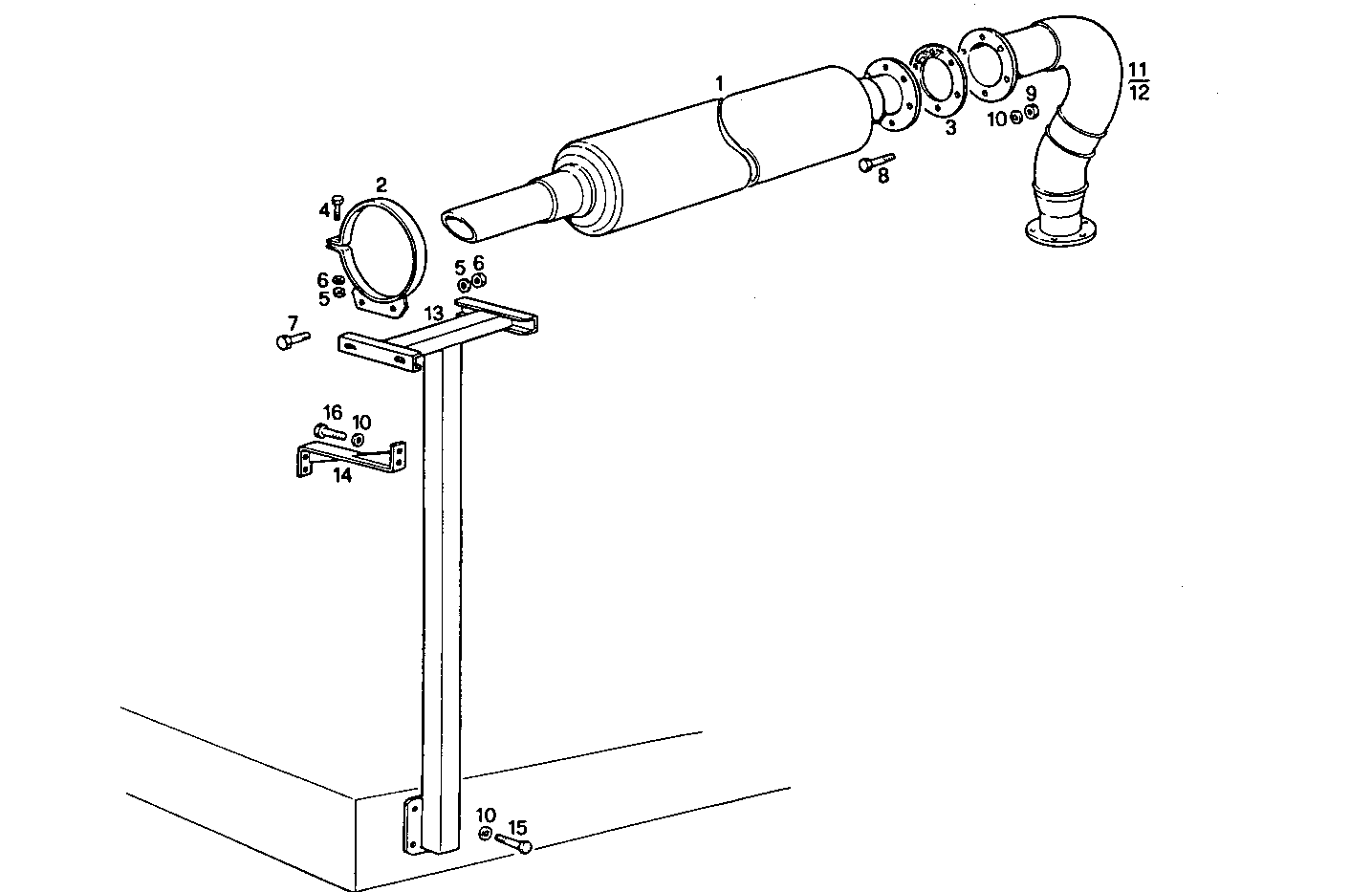

A23040001 HORIZONTAL SILENCER
| Item | Part number | Description |
|---|---|---|
| 1 | 4934291 | SILENCER |
| 2 | 4621724 | CLIP |
| 3 | 8009639 | GASKET |
| 4 | 16625734 | HEXAGON BOLT M8X35 |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 11193879 | SPRING WASHER Ø8X16 MM |
| 7 | 16043321 | HEXAGON BOLT M8X18 MM |
| 8 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 9 | 12164711 | HEXAGON NUT M10X1,25 |
| 10 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 11 | 8111317 | EXHAUST ELBOW RIGHT |
| 12 | 8111318 | EXHAUST ELBOW LEFT |
| 13 | 8109687 | SUPPORT |
| 14 | 8111319 | RETAINER |
| 15 | 11306921 | SCREW M10X1,25X30 |
| 16 | 15970521 | HEXAGON BOLT M10X20 MM |
