8281SRi10.00

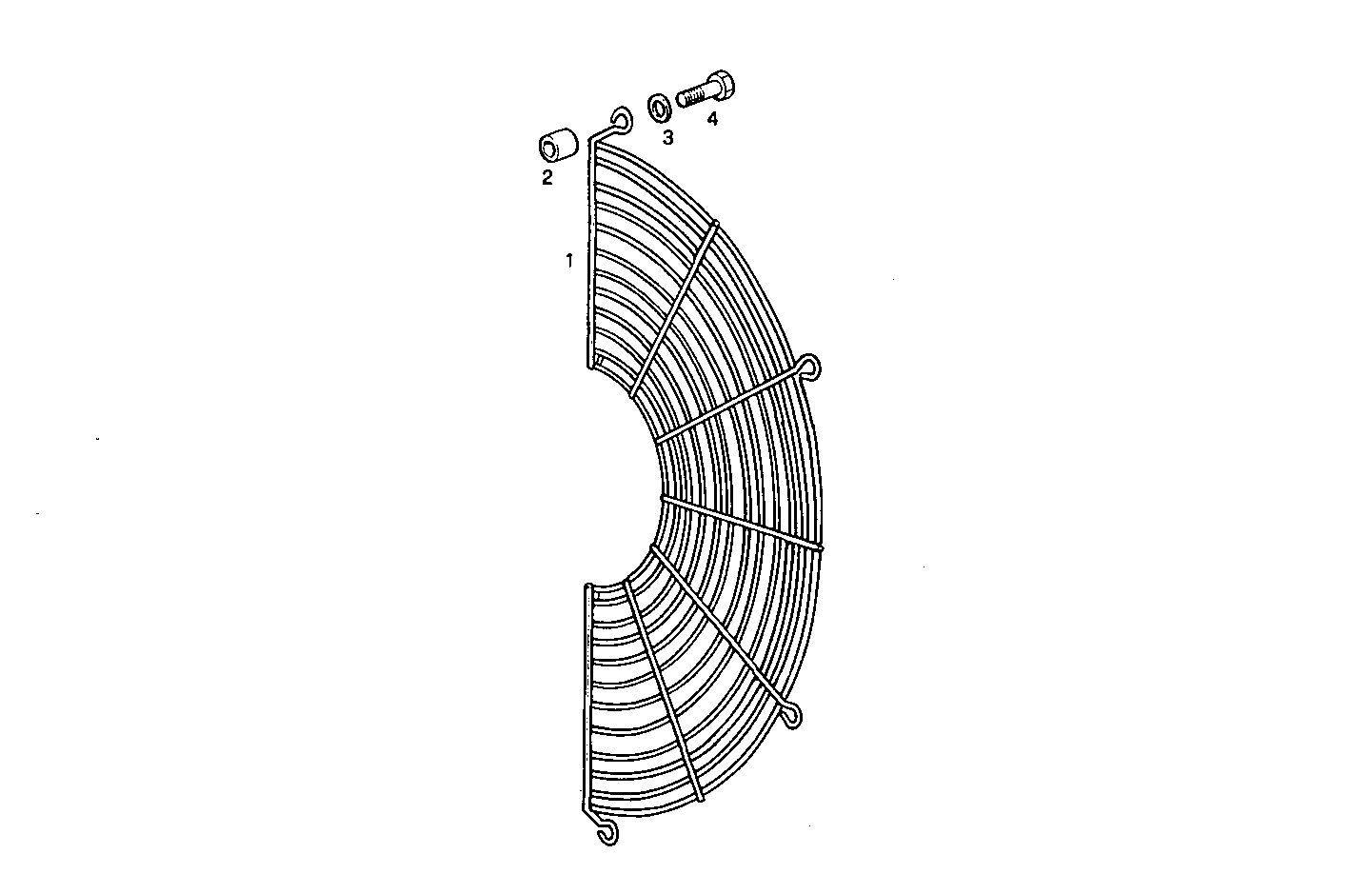

A48010012 GUARD - for fan and belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8108082 | PROTECTION |
| 2 | 17816214 | SPACER Ø10X8,5X18 MM |
| 3 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 4 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
