8281SRi16.01

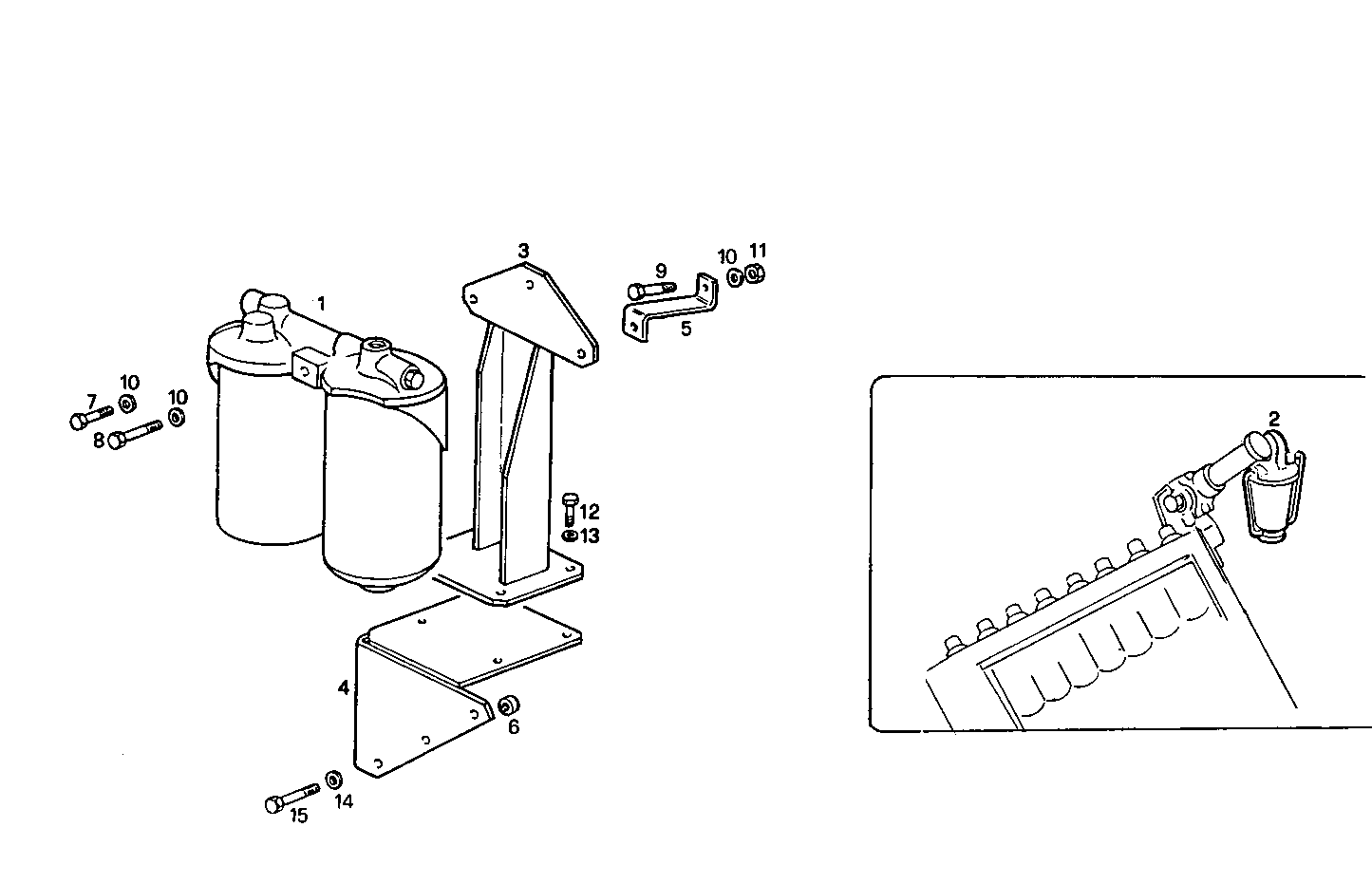

2000.064 FUEL FILTER

Iveco/FPT FUEL FILTER

Item Part number Description
1 4690738 FUEL FILTER ASSY
2 8110468 FUEL FILTER
3 8008538 SUPPORT
4 8008481 RETAINER
5 8015653 RETAINER
6 17316015 SPACING BAR
7 11306921 SCREW M10X1,25X30
8 15972421 HEXAGON BOLT M10X1,25X130 MM
9 15231721 SCREW M10X1,25X65
10 17090474 SPRING WASHER Ø10X27 MM SP=2,5
11 17038221 HEXAGON NUT M10
12 16605424 SCREW M8X16 MM (8.8)
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 12646721 WASHER Ø8X20 MM
15 16608924 HEXAGON BOLT M10X110 MM
