8281SRi16.01

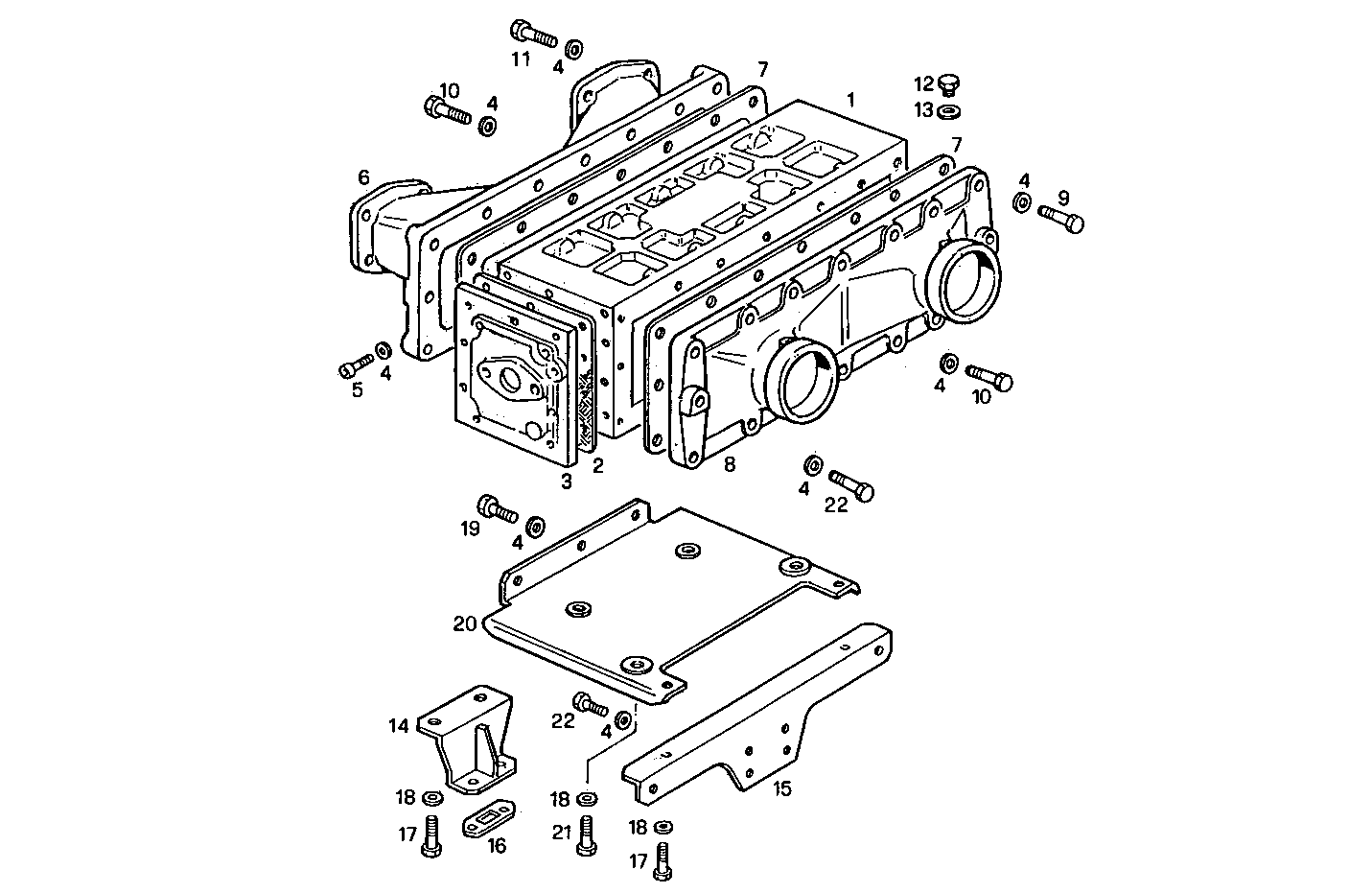

2460.026 AIR - WATER HEAT EXCHANGER

Iveco/FPT AIR - WATER HEAT EXCHANGER

Item Part number Description
1 8022764 AIR/WATER HEAT EXCHANGER ASSY
2 8112975 GASKET
3 8113017 HEAT EXCHANG.COVER
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 11306921 SCREW M10X1,25X30
6 8105947 AIR HOOD
7 8008906 GASKET
8 8108539 AIR HOOD
9 16605624 HEXAGON BOLT M8X25 MM (8.8)
10 16605734 HEXAGON BOLT M8X30 MM
11 16606124 HEXAGON BOLT M8X50 MM
12 16992311 LOCK PLUG M14X1,5
13 4858608 SEAL GASKET dia.14x19,5x1,5
14 8012597 RETAINER
15 8012598 RETAINER
16 4863493 FLAT ENGINE GASKET
17 16607624 SCREW M10X25
18 17090174 SPRING WASHER Ø10X20 MM
19 16605824 HEXAGON BOLT M8X35 MM
20 8012502 SUPPORT
21 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
22 16605424 SCREW M8X16 MM (8.8)
