8281SRi16.01

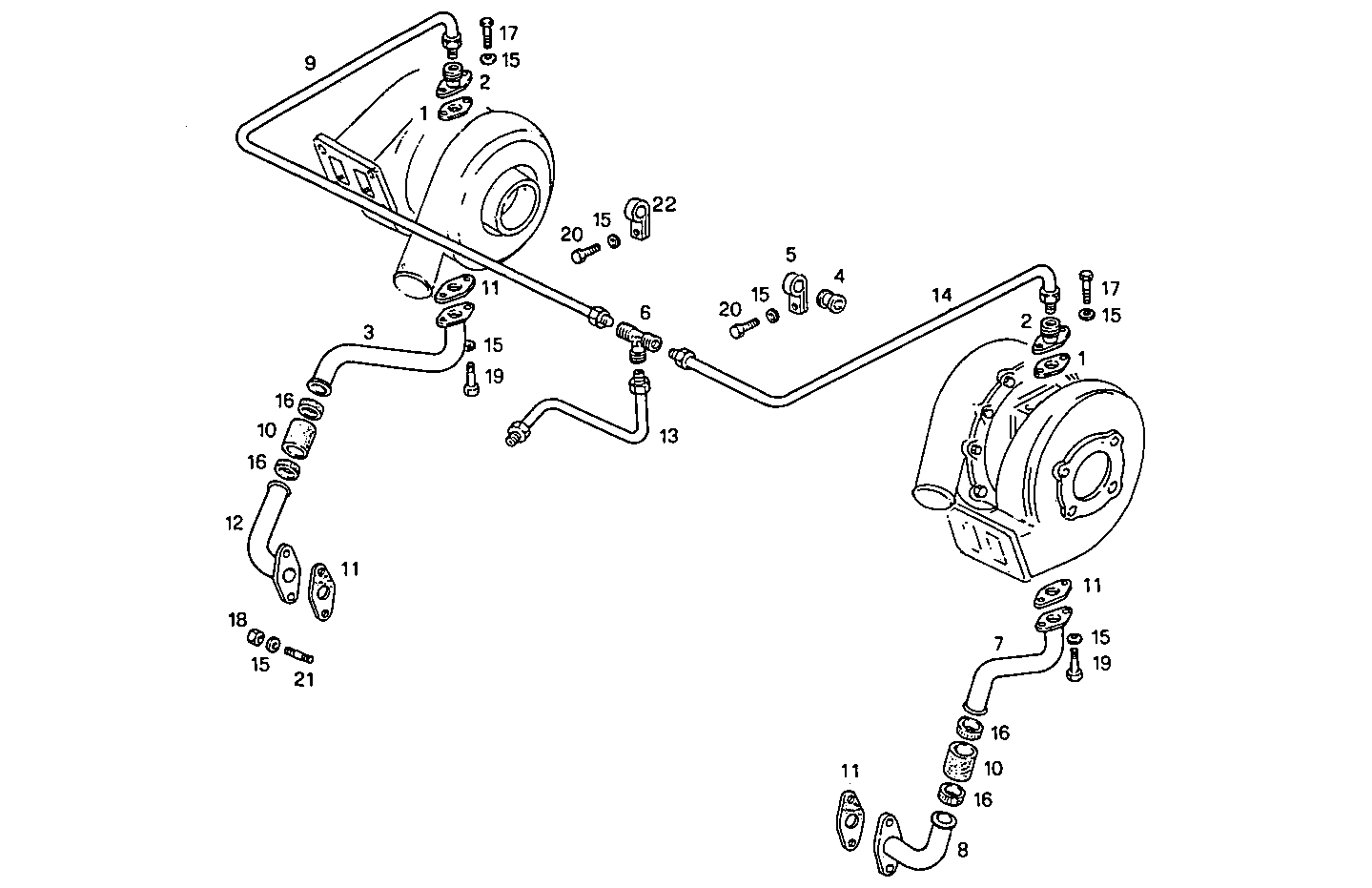

3010.112 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 98415922 FLAT ENGINE GASKET
2 4764795 THREADED UNION
3 4829195 OIL LINE
4 4755964 RUBBER PAD
5 4755963 FASTENING BRACKET
6 4741608 T-COUPLING
7 98420468 OIL LINE LEFT
8 98420470 OIL LINE LEFT
9 8012527 OIL LINE
10 98420478 RUBBER SLEEVE
11 98415923 FLAT ENGINE GASKET
12 4829193 OIL LINE
13 4810598 OIL LINE
14 4810602 OIL LINE
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 17764592 CLIP Ø20/32 MM
17 16605524 HEXAGON BOLT M8X20 MM
18 17037931 HEXAGON NUT M8X1,25
19 16605624 HEXAGON BOLT M8X25 MM (8.8)
20 16605424 SCREW M8X16 MM (8.8)
21 13544521 STUD M8X16X75 MM
22 4934319 RETAINER
