8281SRi16.01

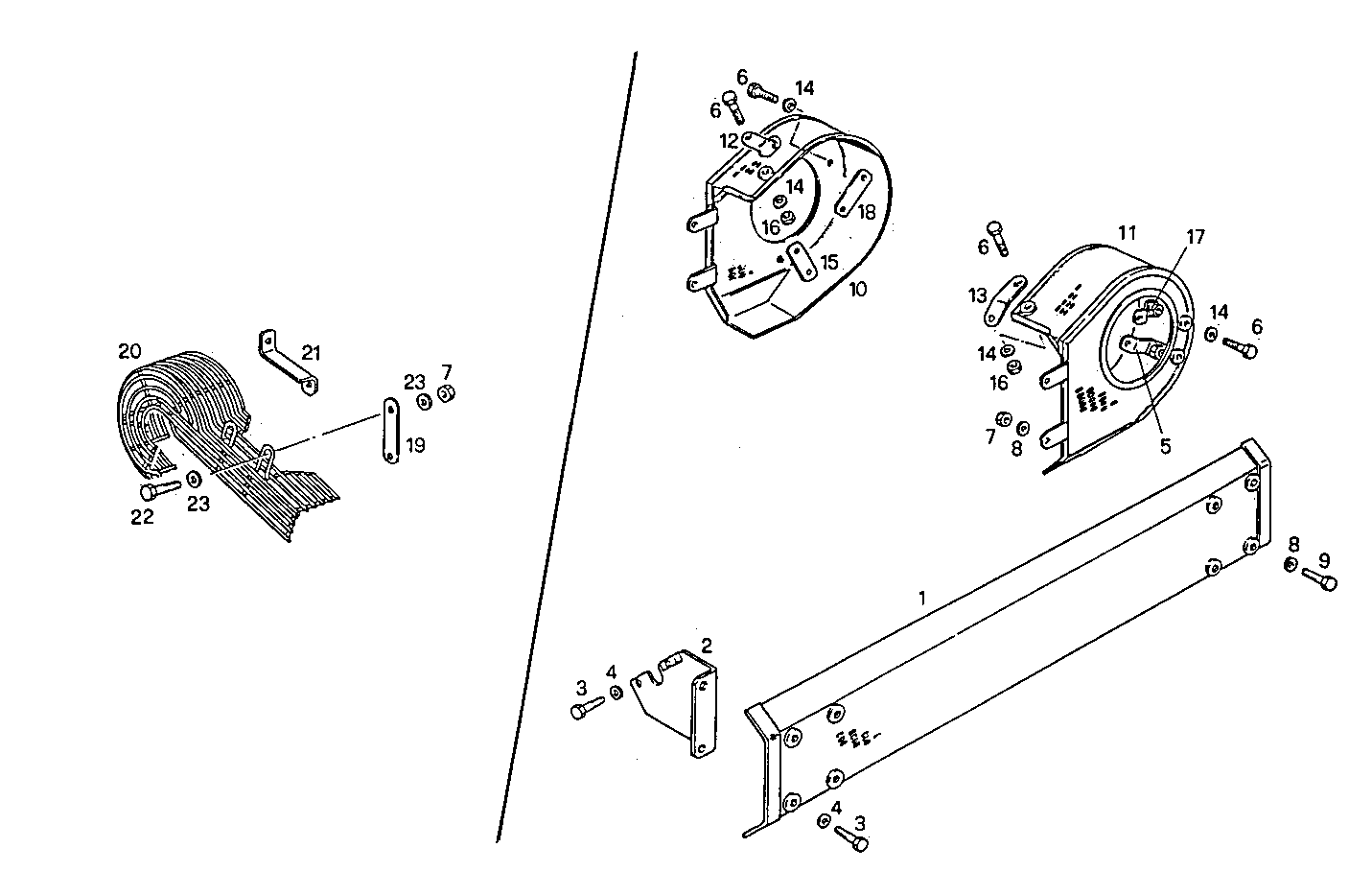

5770.023 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8106560 | PROTECTION |
| 2 | 8106561 | RETAINER |
| 3 | 16603924 | HEXAGON BOLT M6X30 MM |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 8008113 | RETAINER |
| 6 | 16605424 | SCREW M8X16 MM (8.8) |
| 7 | 17038121 | HEXAGON NUT M10 |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 10 | 8107195 | PROTECTION |
| 11 | 8107194 | PROTECTION |
| 12 | 8107409 | RETAINER |
| 13 | 8008962 | RETAINER |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 15 | 8008109 | RETAINER |
| 16 | 17037931 | HEXAGON NUT M8X1,25 |
| 17 | 8008112 | RETAINER |
| 18 | 8008108 | RETAINER |
| 19 | 8008576 | RETAINER |
| 20 | 8008577 | PROTECTION [up to 12-94] |
| 21 | 8009103 | RETAINER [up to 12-94] |
| 22 | 16607624 | SCREW M10X25 |
| 23 | 17095104 | WASHER Ø10X21X2 MM |
