8281SRi17.00

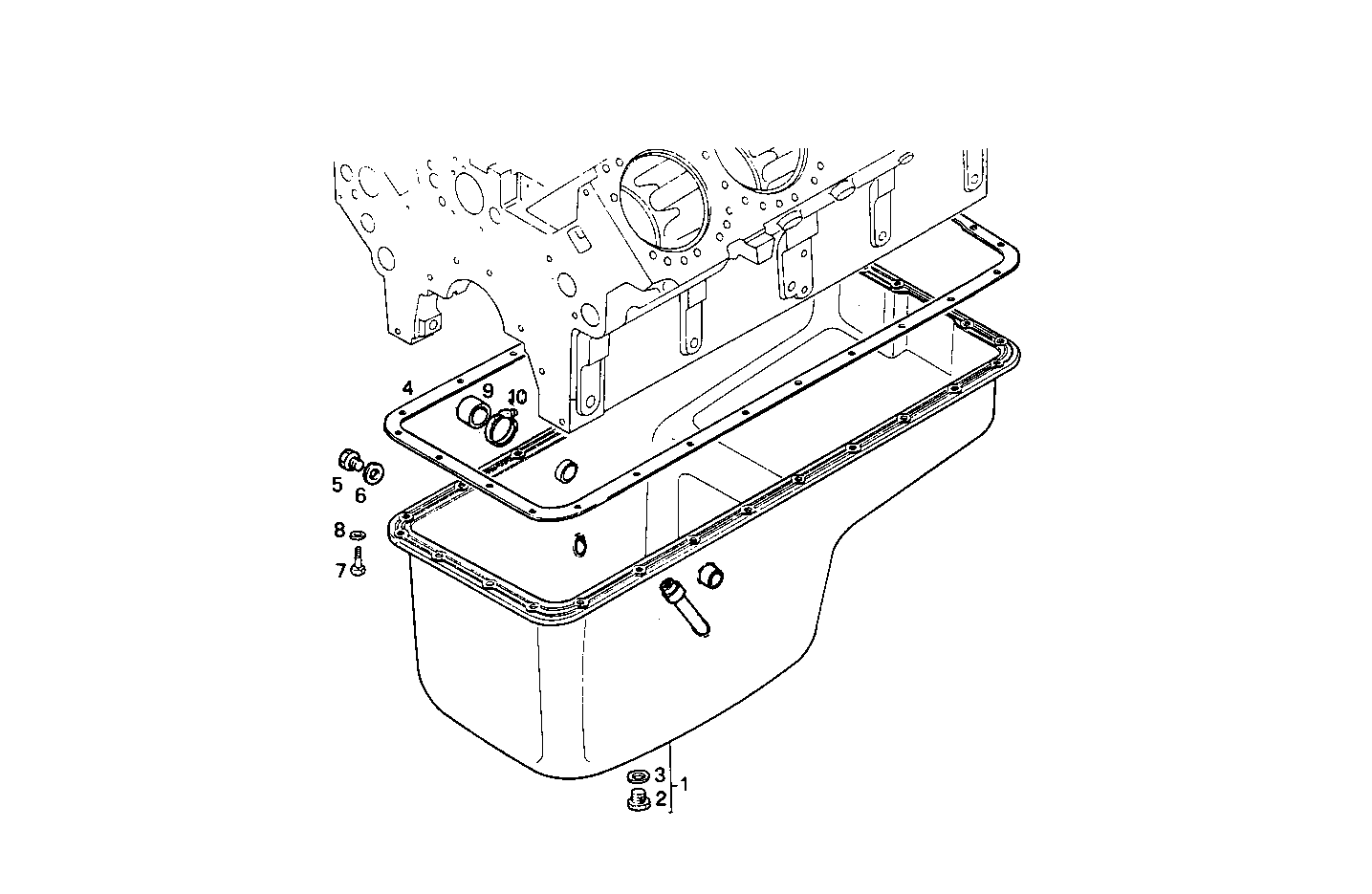

0420.056 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 4799596 | OIL SUMP ASSY |
2 | 16993411 | THREADED PLUG M22X1,5 |
3 | 16508460 | WASHER 22x27x1,5 |
4 | 99469051 | OIL SUMP GASKET |
5 | 11903211 | LOCK PLUG M12X1,25 |
6 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
7 | 10929824 | HEXAGON BOLT M10X1,25X25 MM |
8 | 17090174 | SPRING WASHER Ø10X20 MM |
9 | 4695740 | RUBBER SLEEVE |
10 | 17764792 | HOSE CLIP Ø32-50 MM |
