8281SRi17.00

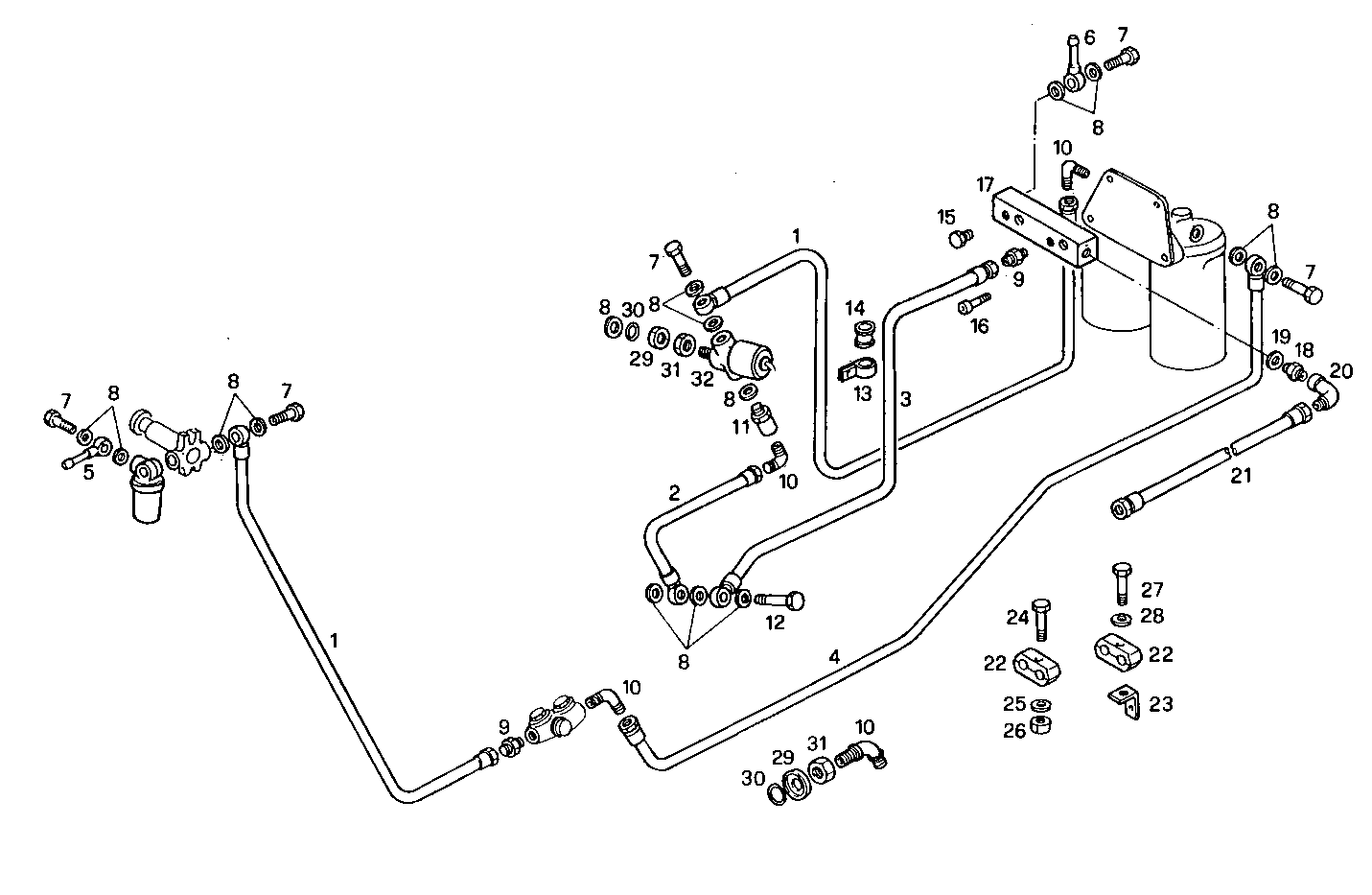

2030.109 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 8019052 FLEXIBLE FUEL PIPE L=1000 MM
2 8019054 HOSE L=300 MM
3 8022762 FUEL LINE
4 8019777 FUEL LINE
5 98404882 PIPE SOCKET Ø8 MM
6 98413896 PIPE SOCKET Ø8 MM
7 4864083 SCREW CONNECTOR M14X1,5X30 MM
8 4858608 SEAL GASKET dia.14x19,5x1,5
9 16500214 THREADED UNION M14X1,5/M16X1,5
10 8006222 PIPE SOCKET [from 05-92]
11 8102465 VALVE
12 61608319 SCREW CONNECTOR
13 8019420 CLIP
14 4757122 RUBBER PAD
15 16992311 LOCK PLUG M14X1,5
16 16691224 CYLIND-HEAD SCREW M8X55 MM
17 8019035 DISTRIBUTOR
18 16500011 PIPE SOCKET
19 4858606 GASKET Ø10X14X1 MM
20 16503811 ELBOW COUPLING
21 8022761 FUEL LINE
22 8010505 CLAMP Ø16 MM
23 8110499 RETAINER
24 16605824 HEXAGON BOLT M8X35 MM
25 17094914 WASHER 8x16
26 17037931 HEXAGON NUT M8X1,25
27 16607921 SCREW
28 17088974 SPRING WASHER Ø6X18X1,4 MM
29 8006339 CAP
30 17281581 O-RING Ø12,37X2,62 MM
31 16508711 NUT M14X1,5 [from 05-92]
32 8017500 ELECTROVALVE [from 04-94]
