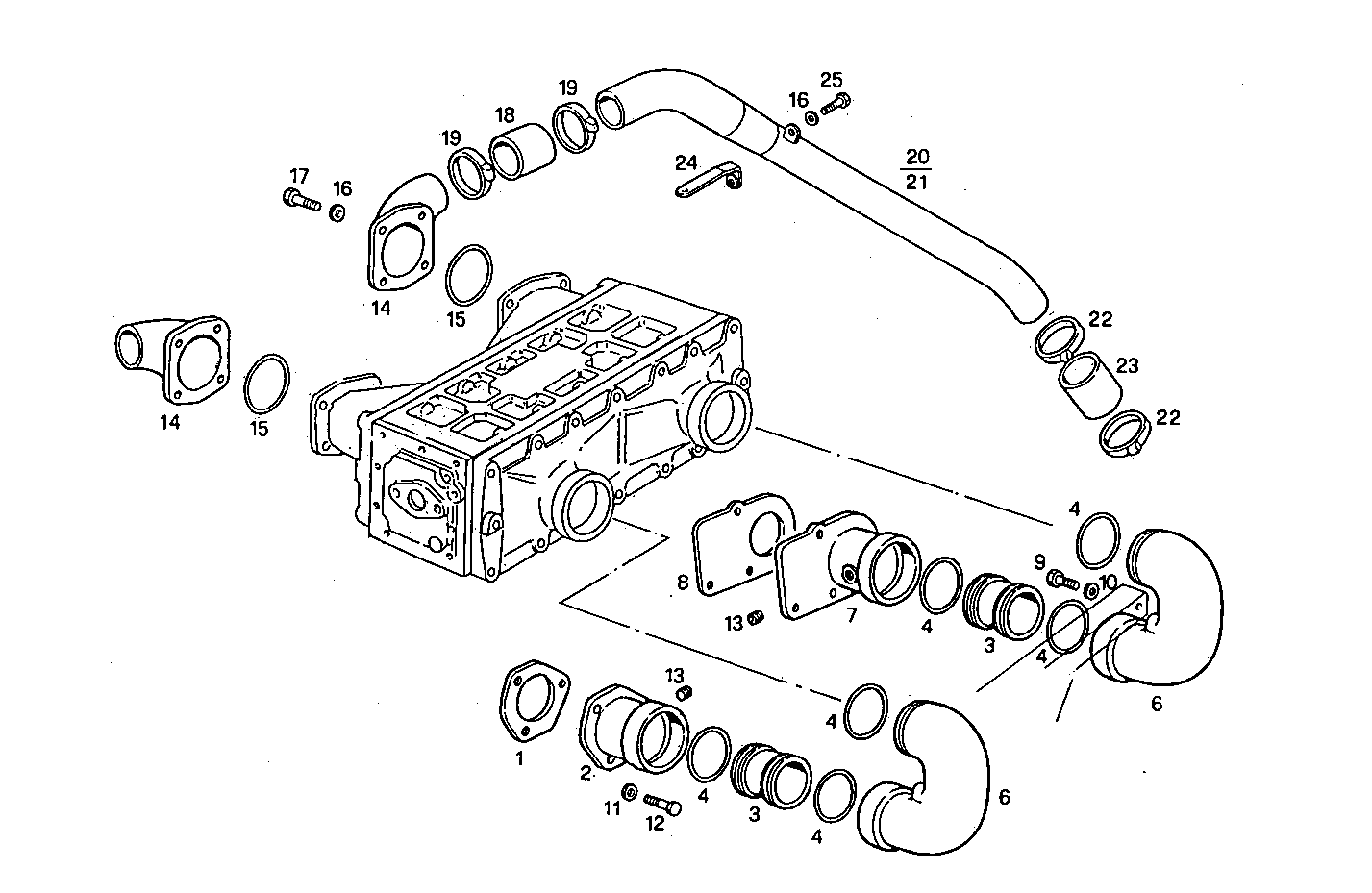

Item |
Part number |
Description |
1 |
8013481 |
INTAKE ELBOW GASK. |
2 |
8108540 |
AIR MANIFOLD LEFT |
3 |
8108544 |
SPACING BAR |
4 |
17296981 |
O-RING Ø91,67 MM SP=3,53 MM |
6 |
8012507 |
AIR PIPE/DUCT |
7 |
8108542 |
WATER PIPE RIGHT |
8 |
8013482 |
INTAKE ELBOW GASK. |
9 |
16587124 |
HEXAGON BOLT M10X25 MM |
10 |
17090174 |
SPRING WASHER Ø10X20 MM |
11 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
12 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
13 |
4742387 |
PLUG |
14 |
8012506 |
AIR PIPE/DUCT |
15 |
17291281 |
O-RING Ø94,84 MM SP=3,53 MM |
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
17 |
16605824 |
HEXAGON BOLT M8X35 MM |
18 |
8012626 |
RUBBER SLEEVE |
19 |
4830091 |
CLIP |
20 |
8022064 |
AIR MANIFOLD LEFT |
21 |
8022065 |
AIR MANIFOLD RIGHT |
22 |
98490783 |
CLIP Ø55-65 MM |
23 |
98420479 |
WATER HOSE |
24 |
8022462 |
RETAINER |
25 |
16605424 |
SCREW M8X16 MM (8.8) |
