8281SRi17.00

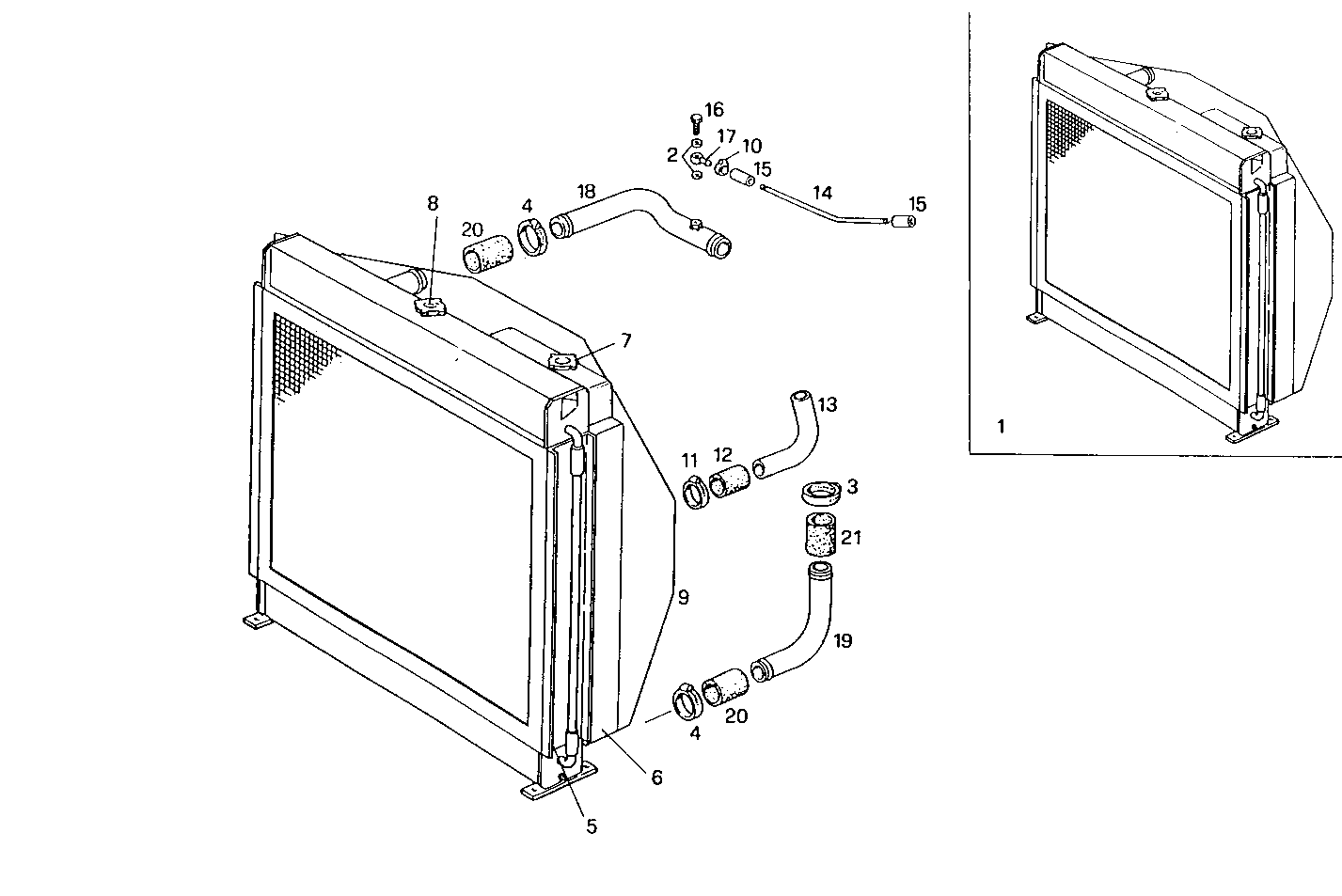

3300.022 RADIATOR
Item | Part number | Description |
---|---|---|
1 | 8032291 | WATER RADIATOR ASSY |
2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
3 | 17765191 | CLIP Ø70/90 MM |
4 | 17765091 | CLIP Ø60/80 MM |
5 | 8025192 | WATER RADIATOR RT |
6 | 8028279 | INTERCOOLER |
7 | 4927808 | PLUG 0,5 BAR |
8 | 8107632 | RADIATOR PLUG |
9 | 8032292 | AIR HOOD |
10 | 18087991 | CLIP Ø8/16 MM |
11 | 98490783 | CLIP Ø55-65 MM |
12 | 17743887 | RUBBER SLEEVE |
13 | 8022213 | WATER PIPE |
14 | 8008573 | AIR PIPE/DUCT |
15 | 4927825 | WATER HOSE |
16 | 8009696 | SCREW CONNECTOR M12X1,5X25 |
17 | 98405514 | PIPE SOCKET |
18 | 8022806 | WATER PIPE |
19 | 8018129 | WATER PIPE [UP TO 02-99] |
20 | 8107383 | RUBBER SLEEVE Ø60 MM |
21 | 42108018 | WATER HOSE |
