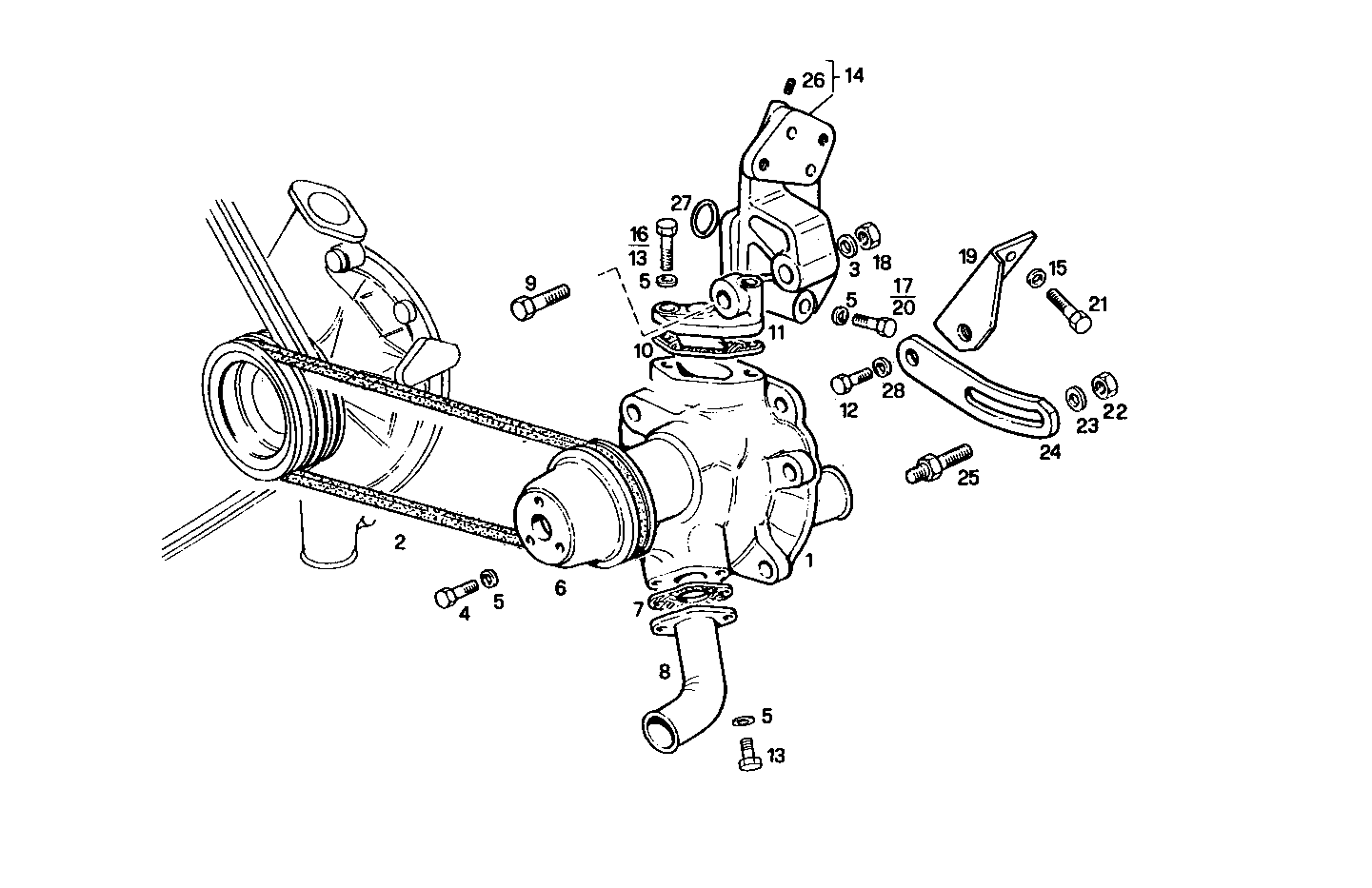

| Item |
Part number |
Description |
|
1 |
8108385 |
WATER PUMP ASSY |
|
2 |
4809002 |
WATER PUMP BELT KLEBER |
|
3 |
4622654 |
WASHER |
|
4 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
5 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
6 |
8010795 |
PULLEY |
|
7 |
4599562 |
FLAT ENGINE GASKET |
|
8 |
8100081 |
WATER PIPE |
|
9 |
16611024 |
HEXAGON BOLT M12X1,75X100 MM |
|
10 |
4767560 |
GASKET |
|
11 |
8108706 |
COVER |
|
12 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
13 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
14 |
8014677 |
SUPPORT |
|
15 |
10738101 |
WASHER |
|
16 |
16606224 |
HEXAGON BOLT M8X55 MM |
|
17 |
16606324 |
HEXAGON BOLT M8X60 MM |
|
18 |
17157124 |
NUT M12 |
|
19 |
8013650 |
RETAINER |
|
20 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
21 |
11255921 |
HEXAGON BOLT M14X1,5X40 MM |
|
22 |
17157221 |
NUT M10X1,25 |
|
23 |
4513436 |
SUPPORT RING Ø10X21X2 MM |
|
24 |
8108378 |
BELT TENSIONER |
|
25 |
8108386 |
SPACING BAR |
|
26 |
17436774 |
THREADED INSERT M6 |
|
27 |
17281981 |
O-RING Ø18,7 MM SP=2,6 MM |
|
28 |
17090174 |
SPRING WASHER Ø10X20 MM |
