8281SRi17.00

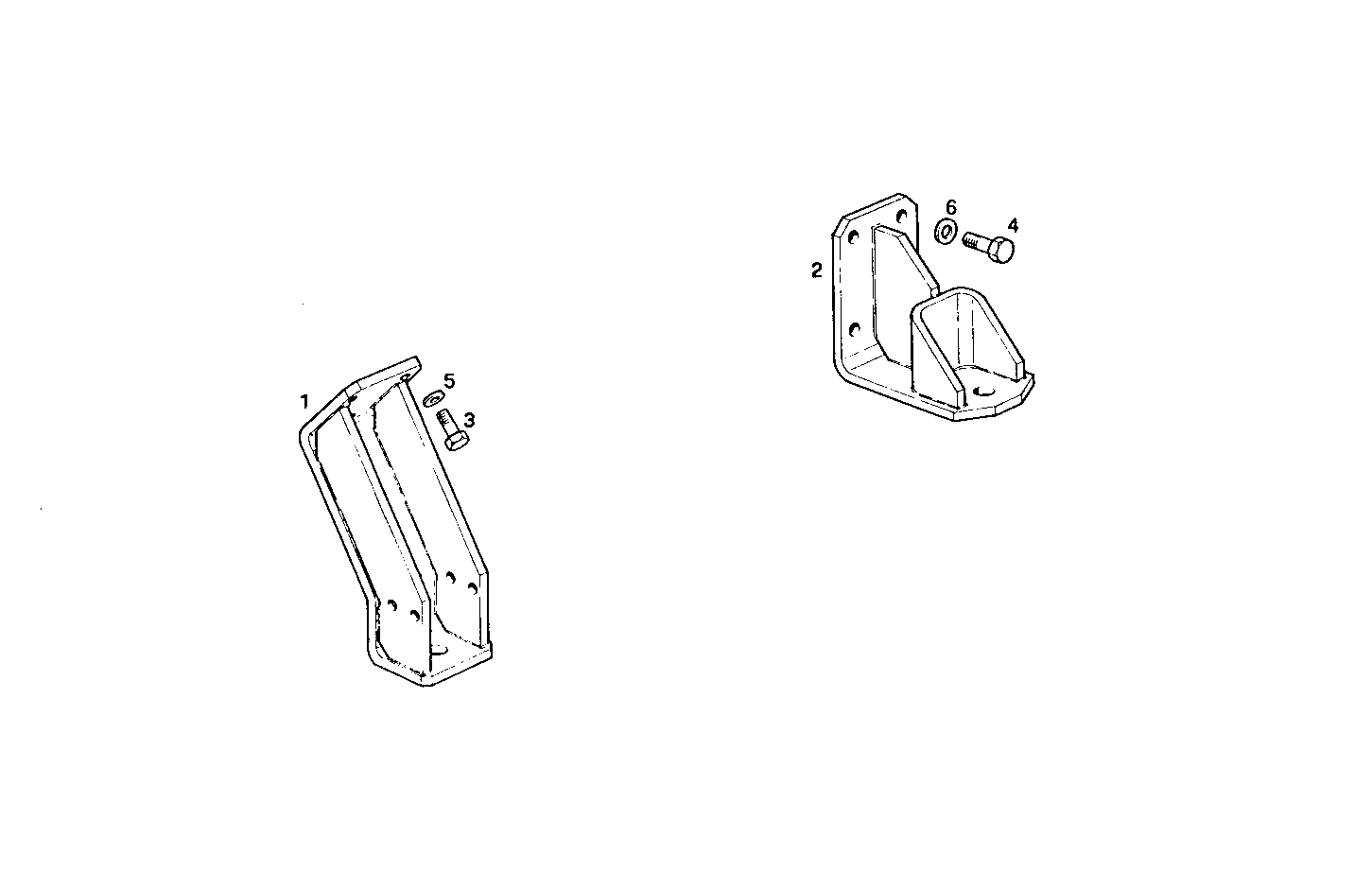

A04000032 RIGID MOUNTING

Iveco/FPT RIGID MOUNTING

Item Part number Description
1 8012656 FRONT ENG. MOUNT
2 8019084 ENGINE SUSPENSION
3 17458234 LOCKING SCREW M12X30 MM
4 17462034 LOCKING SCREW M16X2X40 MM
5 17091374 SPRING WASHER Ø12X30X3,0 MM
6 17092374 SPRING WASHER Ø16X34X3,6 MM
