8281SRi17.00

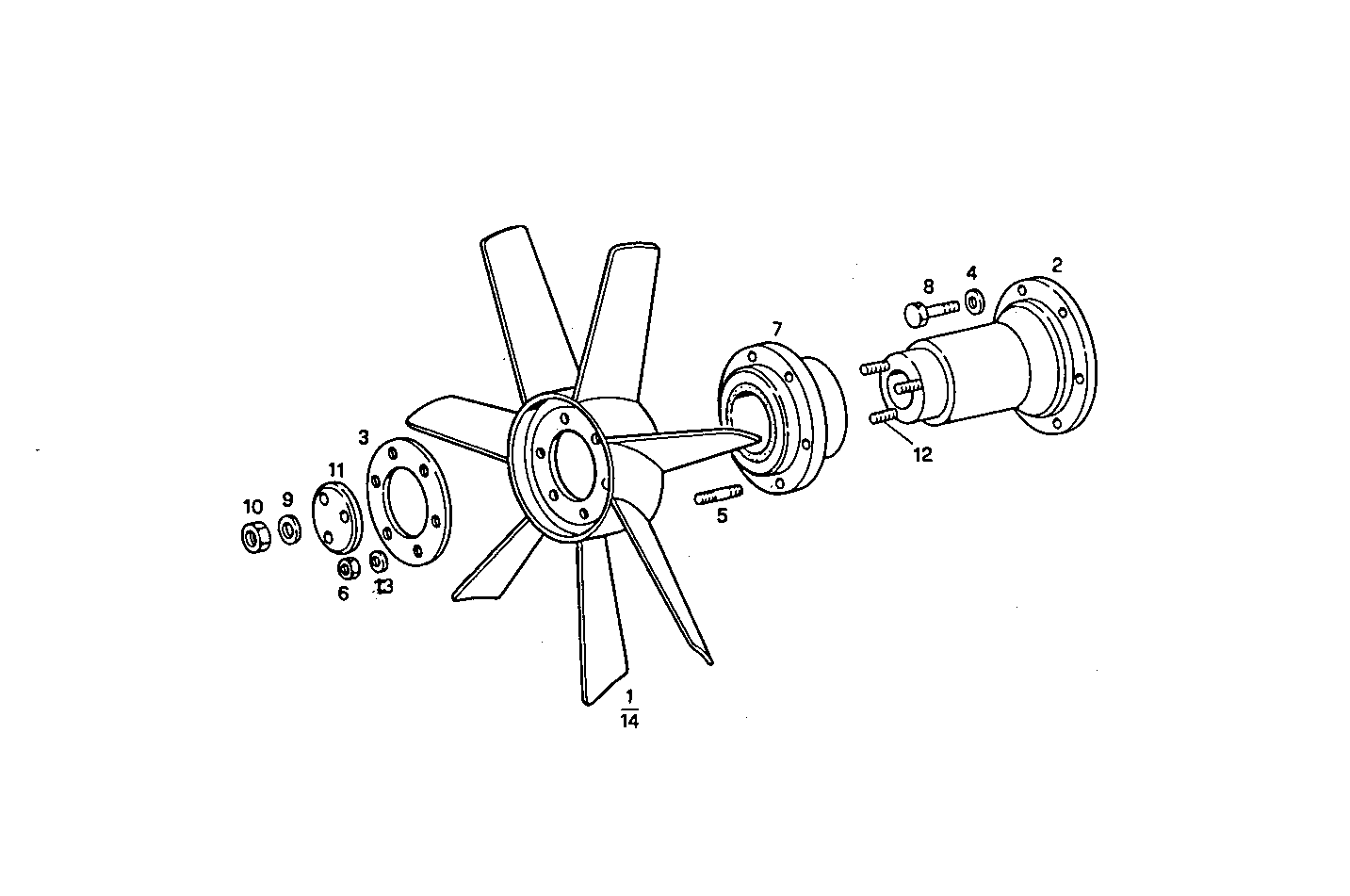

A08010042 PUSHER FAN - on engine axis
Item | Part number | Description |
---|---|---|
1 | 8108721 | FAN Ø914 MM |
2 | 8024642 | HUB |
3 | 4933279 | RING |
4 | 17094901 | WASHER Ø8,4 MM |
5 | 16729224 | STUD M8X16 MM |
6 | 17037931 | HEXAGON NUT M8X1,25 |
7 | 8108875 | FLEXIBLE COUPLING |
8 | 16606624 | HEXAGON BOLT M8X80 MM |
9 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
10 | 17038221 | HEXAGON NUT M10 |
11 | 8108876 | SPACING BAR |
12 | 13546421 | STUD M10X1,25X48 MM |
13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
14 | 8021736 | FAN Ø914 MM |
