8281SRi26.01

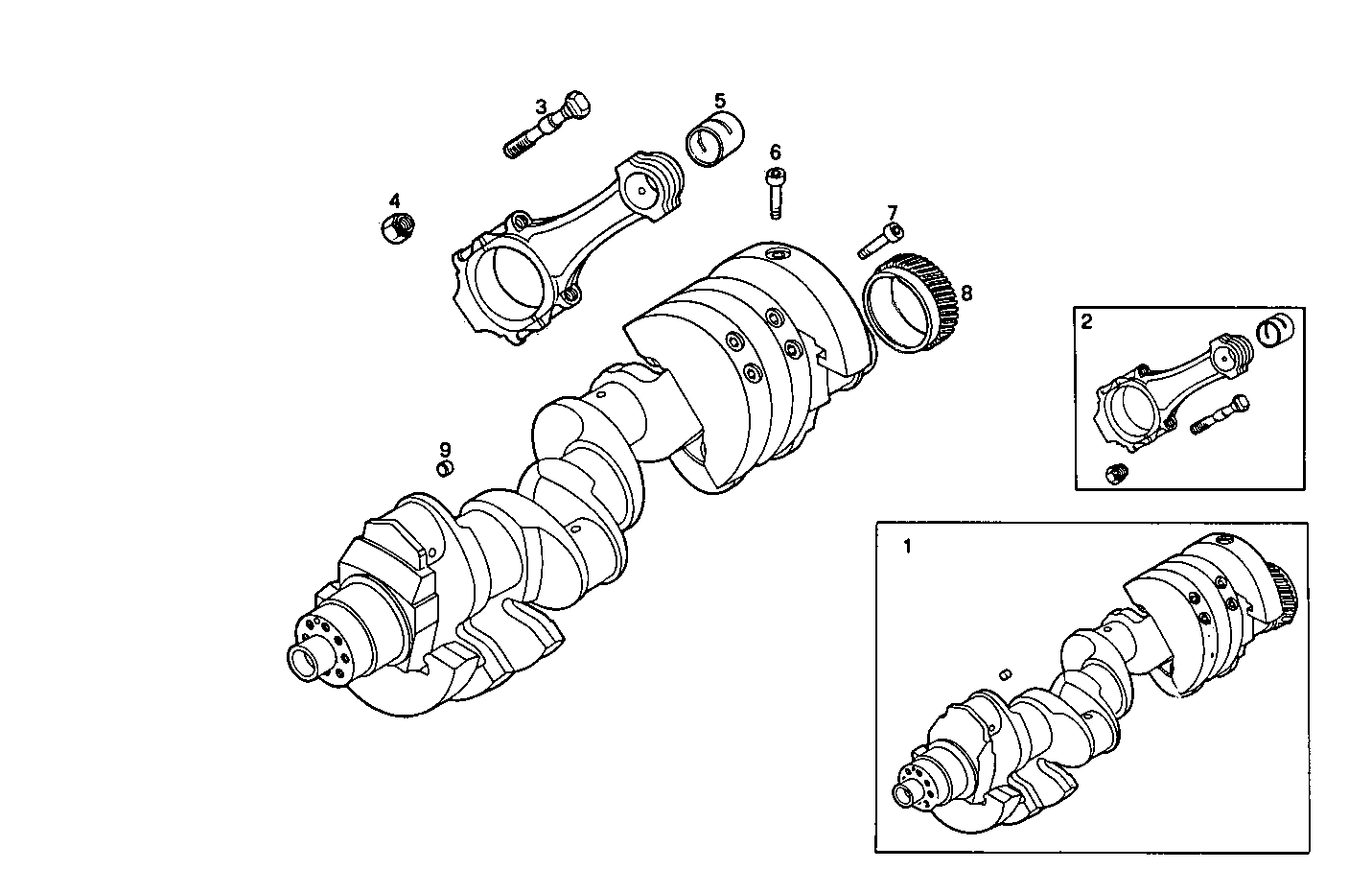

0800.025 CRANK SHAFT - CONNECTING RODS

Iveco/FPT CRANK SHAFT - CONNECTING RODS

Item Part number Description
1 98474486 CRANK SHAFT ASSY
2 4815044 CONN.ROD ASSY. ASSY
3 4693050 BIG-END BOLT
4 4693706 BIG END NUT
5 4800461 BIG-END BUSH
6 4687338 SOCKET-HEAD SCREW
7 4687337 SOCKET-HEAD SCREW
8 4819215 OIL PUMP DRIV.GEA
9 14281970 LOCK PLUG Ø12 MM
