8281SRi26.01

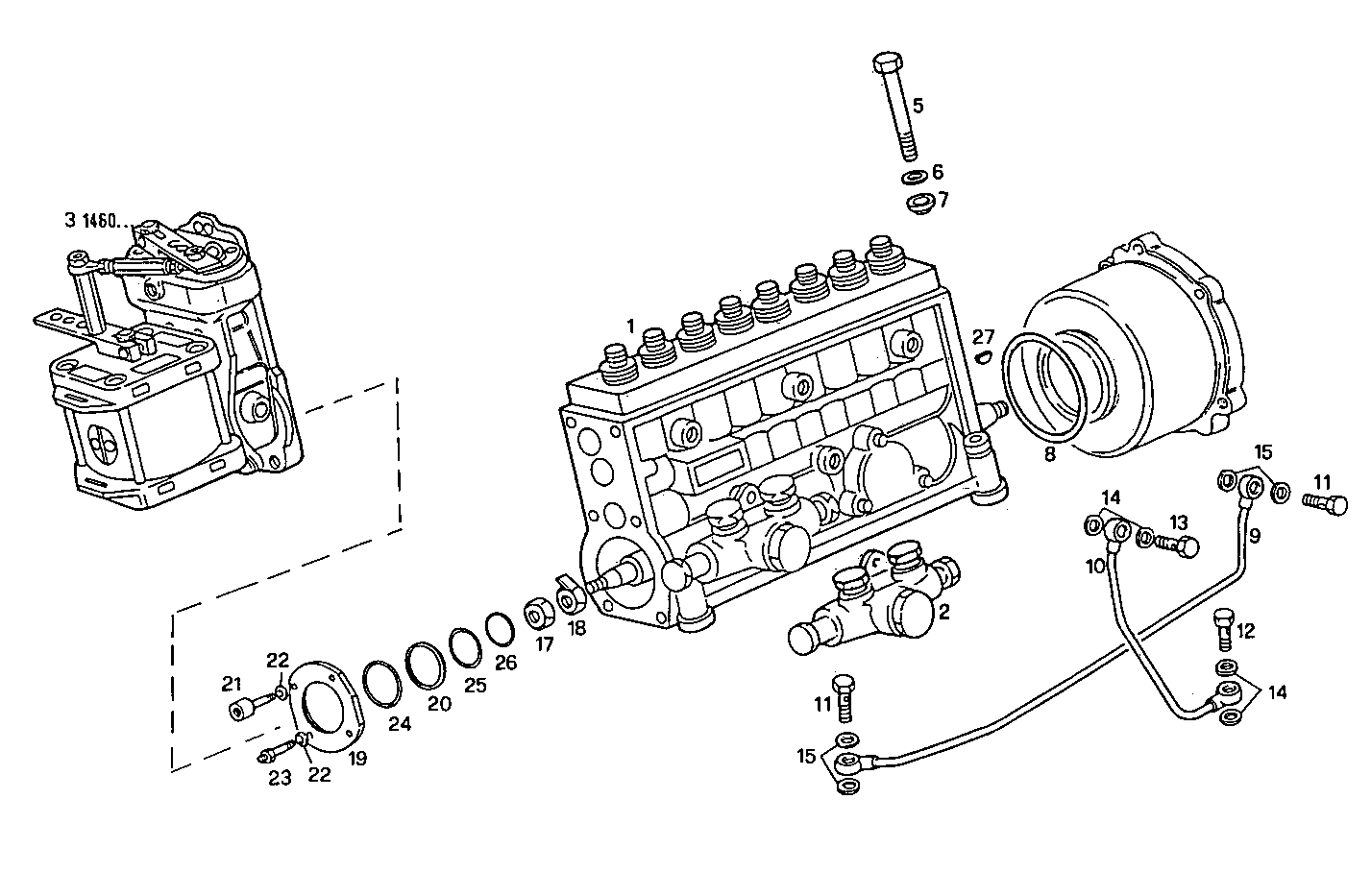

1400.107 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8010618 | INLINE INJECT.PUMP |
| 2 | 93160510 | FUEL PUMP OPT. |
| 5 | 15971330 | HEXAGON BOLT M10X75 MM |
| 6 | 17090274 | WASHER Ø10X20 MM |
| 7 | 756671 | WASHER |
| 8 | 14466081 | O-RING Ø101,19 MM SP=3,53 |
| 9 | 98420453 | OIL LINE |
| 10 | 98420456 | OIL LINE |
| 11 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 12 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 13 | 4864079 | SCREW CONNECTOR M10X1 |
| 14 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 15 | 98474308 | SEAL GASKET Ø14X22 MM |
| 17 | 16979931 | HEXAGON NUT M12 |
| 18 | 8108716 | NUT |
| 19 | 8008549 | FLANGE |
| 20 | 8008548 | GASKET |
| 21 | 8008550 | SCREW |
| 22 | 17128634 | WASHER Ø6 MM |
| 23 | 8008551 | SCREW |
| 24 | 17284281 | O-RING Ø55,24X2,62 MM |
| 25 | 17280481 | O-RING Ø63,22X1,78 MM |
| 26 | 17280581 | O-RING Ø66,40X1,78 MM |
| 27 | 10205720 | KEY 3X5 MM |
