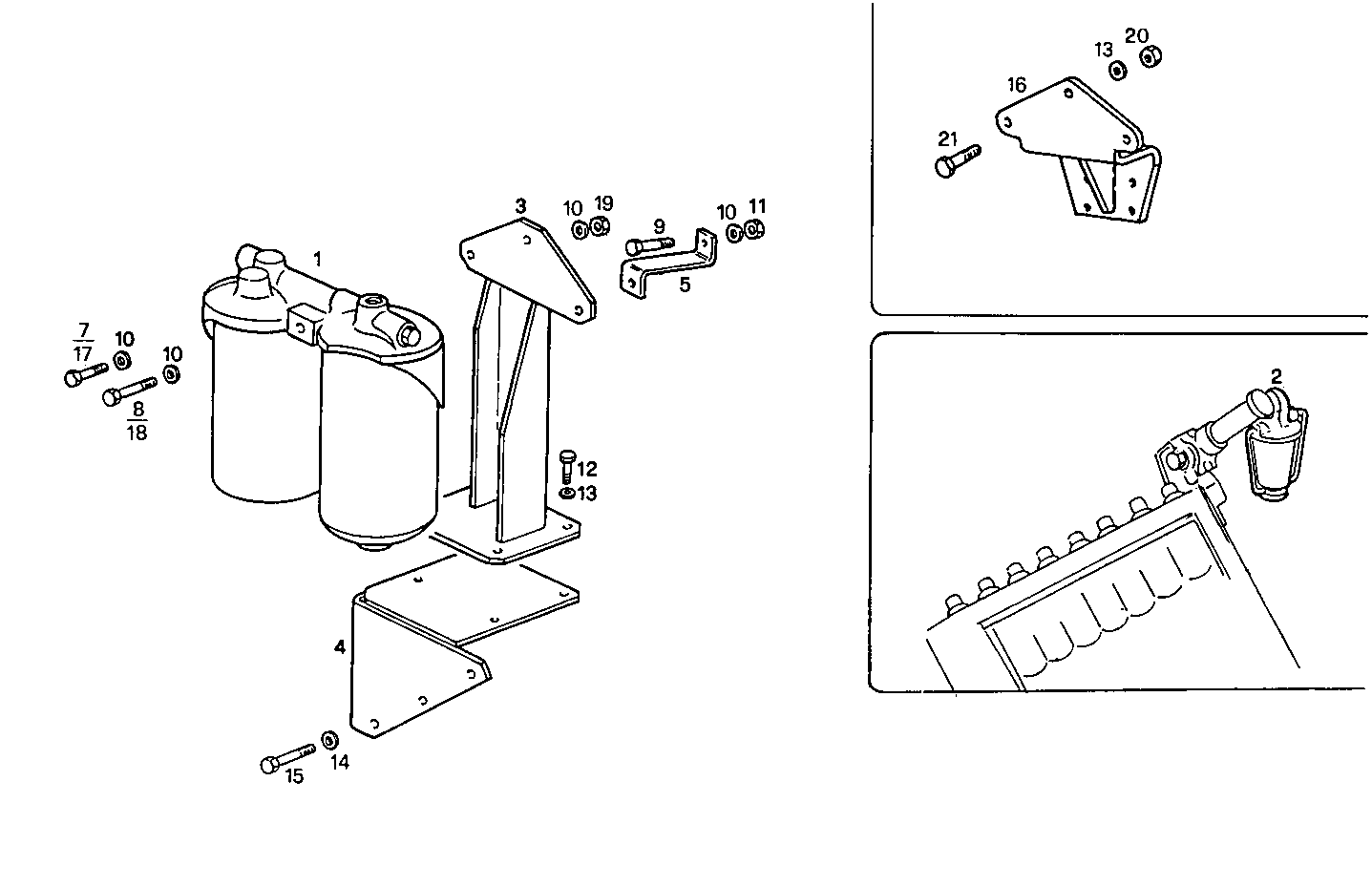

| Item |
Part number |
Description |
|
1 |
4690738 |
FUEL FILTER ASSY |
|
2 |
8110468 |
FUEL FILTER |
|
3 |
8008538 |
SUPPORT |
|
4 |
8008481 |
RETAINER |
|
5 |
8015653 |
RETAINER |
|
7 |
11306921 |
SCREW M10X1,25X30 |
|
8 |
15972421 |
HEXAGON BOLT M10X1,25X130 MM |
|
9 |
15231721 |
SCREW M10X1,25X65 |
|
10 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
11 |
17038221 |
HEXAGON NUT M10 |
|
12 |
16605424 |
SCREW M8X16 MM (8.8) |
|
13 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
14 |
12646721 |
WASHER Ø8X20 MM |
|
15 |
16046121 |
HEXAGON BOLT M8X1,25X100 |
|
16 |
8018243 |
SUPPORT |
|
17 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
|
18 |
16609324 |
SCREW M10X150 |
|
19 |
17038121 |
HEXAGON NUT M10 |
|
20 |
17037931 |
HEXAGON NUT M8X1,25 |
|
21 |
16605524 |
HEXAGON BOLT M8X20 MM |
