8281SRi26.02

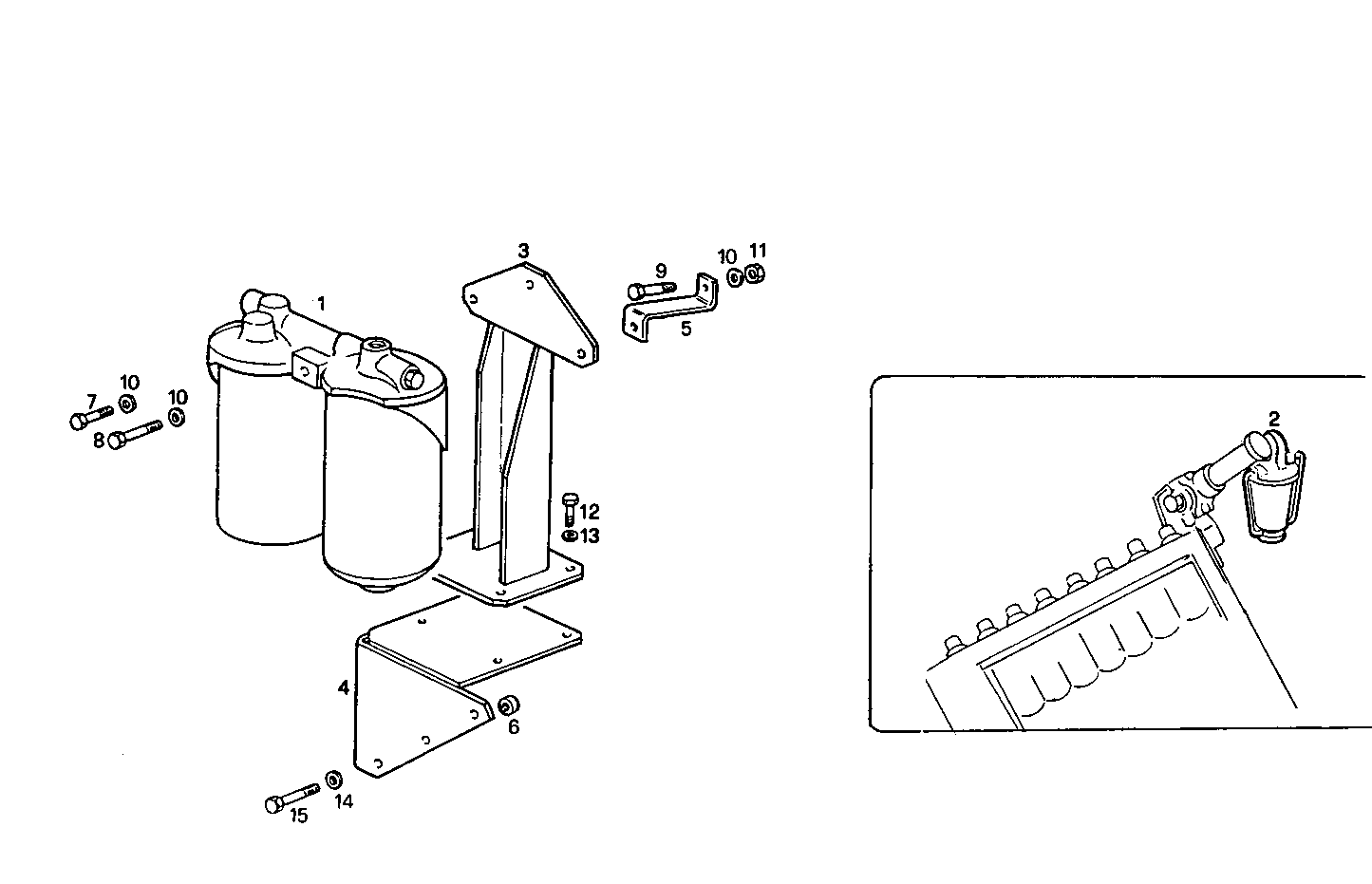

2000.064 FUEL FILTER
Item | Part number | Description |
---|---|---|
1 | 4690738 | FUEL FILTER ASSY |
2 | 8110468 | FUEL FILTER |
3 | 8008538 | SUPPORT |
4 | 8008481 | RETAINER |
5 | 8015653 | RETAINER |
6 | 17316015 | SPACING BAR |
7 | 11306921 | SCREW M10X1,25X30 |
8 | 15972421 | HEXAGON BOLT M10X1,25X130 MM |
9 | 15231721 | SCREW M10X1,25X65 |
10 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
11 | 17038221 | HEXAGON NUT M10 |
12 | 16605424 | SCREW M8X16 MM (8.8) |
13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
14 | 12646721 | WASHER Ø8X20 MM |
15 | 16608924 | HEXAGON BOLT M10X110 MM |
