8281SRi26.02

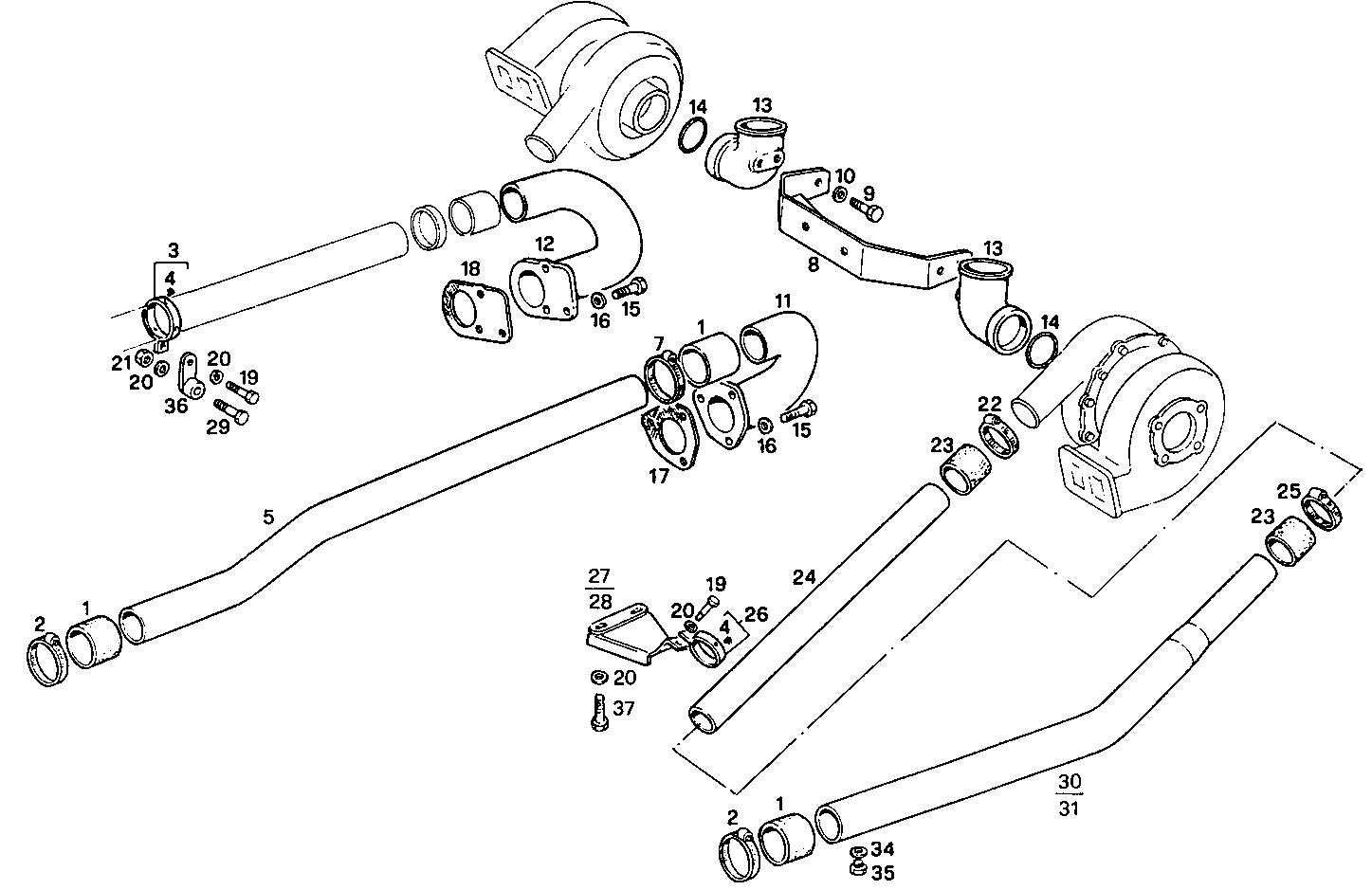

2420.030 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8108782 RUBBER SLEEVE
2 8114373 CLIP
3 8107953 CLIP
4 1366290 RUBBER LUG
5 8010167 AIR MANIFOLD
8 8011101 RETAINER
9 16605424 SCREW M8X16 MM (8.8)
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 8107945 INTAKE ELBOW
12 8107947 INTAKE ELBOW
13 8009292 INTAKE ELBOW
14 17291481 O-RING Ø101,19 MM SP=3,53
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
17 8013481 INTAKE ELBOW GASK.
18 8013482 INTAKE ELBOW GASK.
19 15004021 HEXAGON BOLT M10X1,25X25 MM
20 17090174 SPRING WASHER Ø10X20 MM
21 17038121 HEXAGON NUT M10
22 17765092 CLIP Ø60-80 MM
23 8107383 RUBBER SLEEVE Ø60 MM
24 8008539 AIR MANIFOLD
25 4830091 CLIP
26 4936328 CLIP ASSY
27 8008599 RETAINER LEFT
28 8008600 RETAINER RIGHT
29 16608324 HEXAGON BOLT M10X1,5X60 MM
30 8010168 AIR PIPE/DUCT LEFT
31 8010169 AIR PIPE/DUCT RIGHT
34 4858608 SEAL GASKET dia.14x19,5x1,5
35 16992340 THREADED PLUG M14X1,5
36 8107954 RETAINER
37 10923621 HEXAGON BOLT M10X1,25X35 MM
