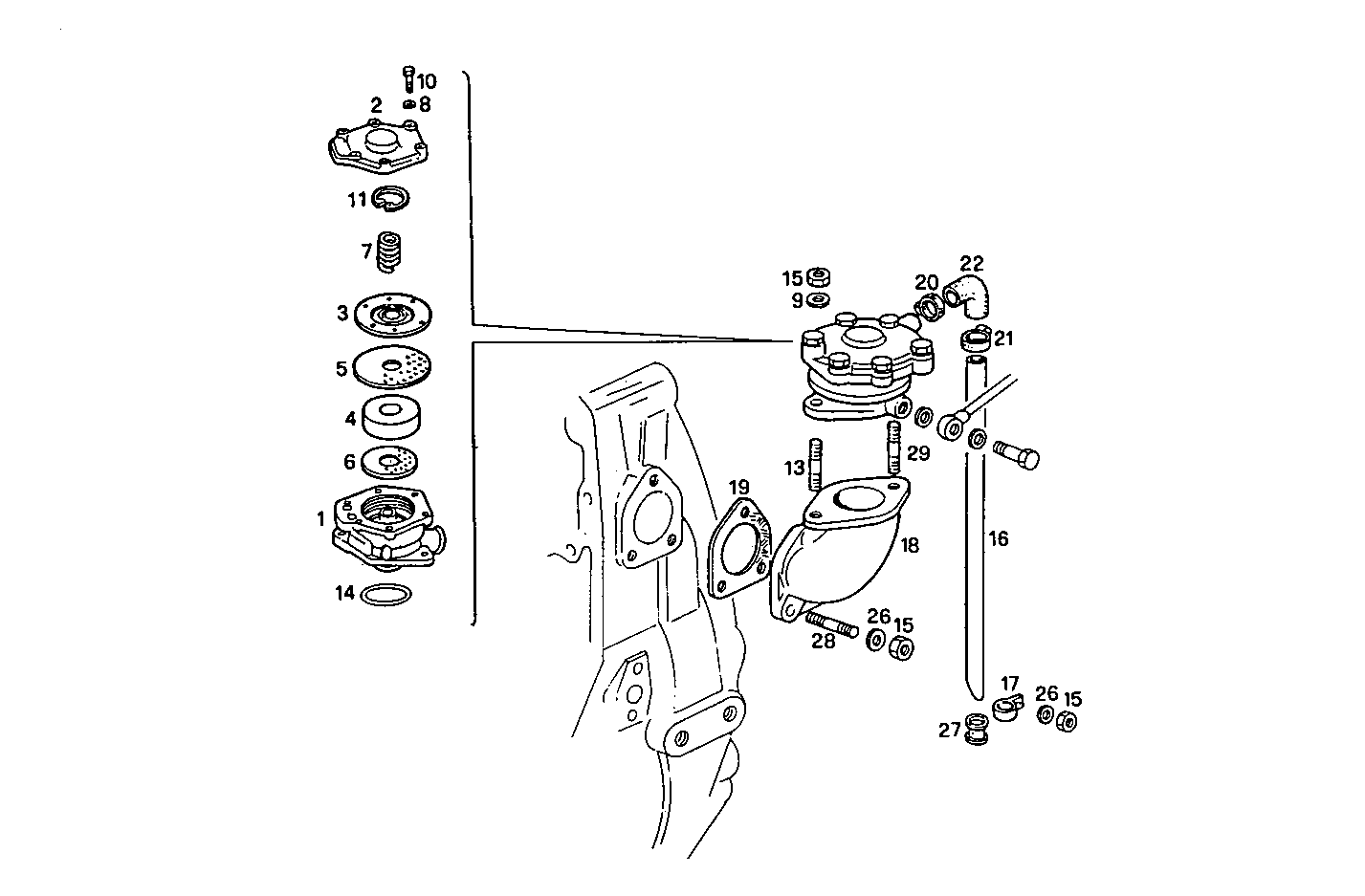

0450.053 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 4771073 | BEARING HOUSING |
2 | 4771075 | COVER |
3 | 61315069 | DIAPHRAGM |
4 | 4771079 | FILTER |
5 | 4771080 | DISC |
6 | 4771081 | DISC |
7 | 4812557 | SPRING |
8 | 17094701 | WASHER Ø6X12 MM |
9 | 10519601 | WASHER Ø8X17 MM |
10 | 16603924 | HEXAGON BOLT M6X30 MM |
11 | 16874976 | CIRCLIP Ø90,5 MM |
12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
13 | 13516921 | STUD M8X12X22 MM |
14 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
15 | 17037931 | HEXAGON NUT M8X1,25 |
16 | 98487759 | BREATHER PIPE |
17 | 4760226 | FASTENING BRACKET |
18 | 4807809 | SUPPORT |
19 | 4863490 | FLAT ENGINE GASKET |
20 | 17764692 | CLIP Ø25/40 MM |
21 | 17764592 | CLIP Ø20/32 MM |
22 | 4865232 | RUBBER SLEEVE |
26 | 17094914 | WASHER 8x16 |
27 | 4747140 | RUBBER PAD |
28 | 12354521 | STUD M8X16X22 |
29 | 16729424 | STUD M8X1,25X25 |
