8281SRi27.00

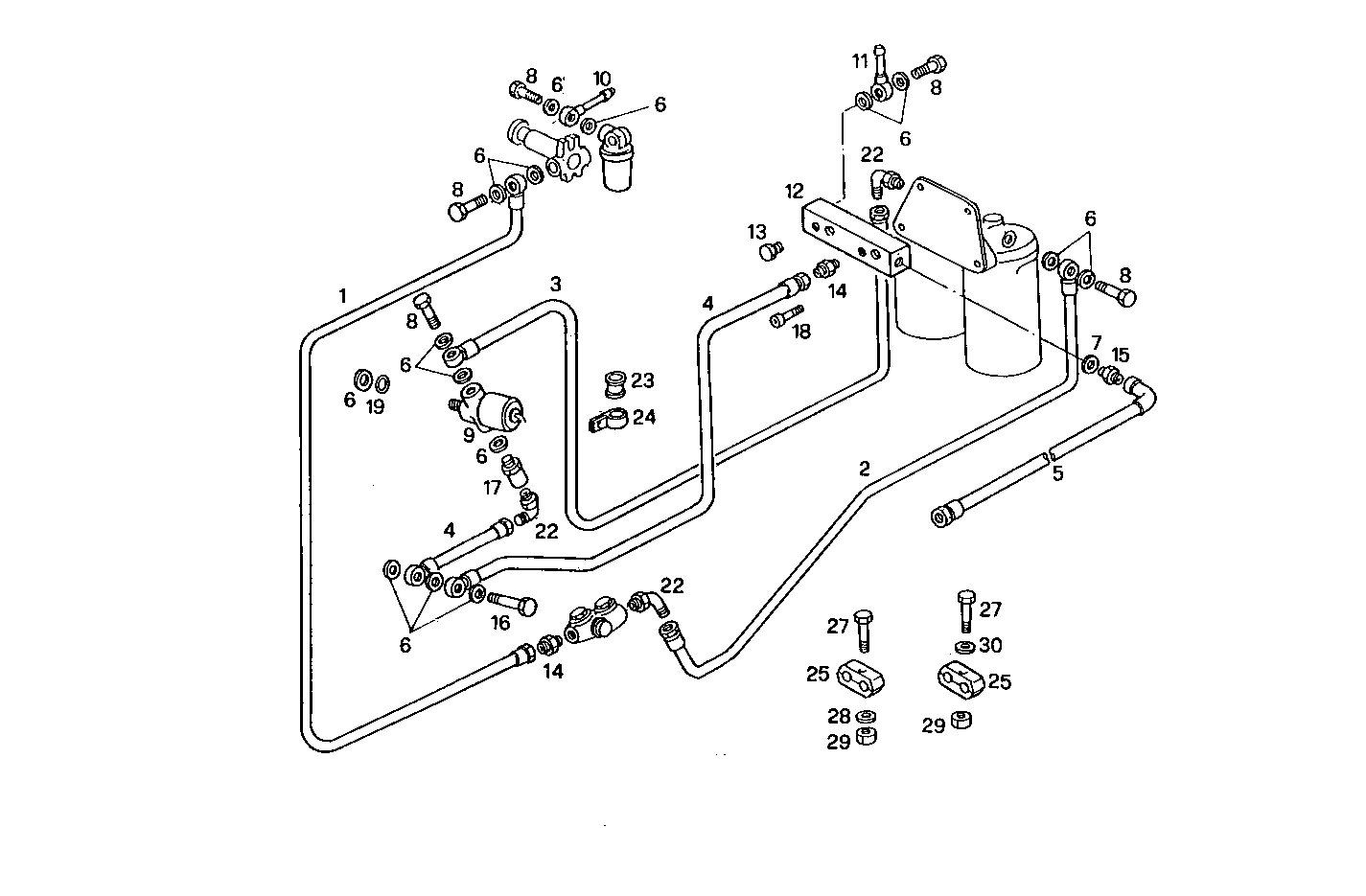

2030.103 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 8019051 HOSE L=400 MM
2 8019052 FLEXIBLE FUEL PIPE L=1000 MM
3 8019053 FLEXIBLE FUEL PIPE L=900 MM
4 8019054 HOSE L=300 MM
5 8019699 FUEL LINE L=400 MM
6 4858608 SEAL GASKET dia.14x19,5x1,5
7 4858606 GASKET Ø10X14X1 MM
8 4864083 SCREW CONNECTOR M14X1,5X30 MM
9 8017500 ELECTROVALVE [from 04-94]
10 98404882 PIPE SOCKET Ø8 MM
11 98413896 PIPE SOCKET Ø8 MM
12 8019035 DISTRIBUTOR
13 16992311 LOCK PLUG M14X1,5
14 16500214 THREADED UNION M14X1,5/M16X1,5
15 16500011 PIPE SOCKET
16 61608319 SCREW CONNECTOR
17 8102465 VALVE
18 16691224 CYLIND-HEAD SCREW M8X55 MM
19 17281581 O-RING Ø12,37X2,62 MM
22 8025927 ELBOW COUPLING
23 4757122 RUBBER PAD
24 8019420 CLIP
25 8010505 CLAMP Ø16 MM
27 16605824 HEXAGON BOLT M8X35 MM
28 17094914 WASHER 8x16
29 17037931 HEXAGON NUT M8X1,25
30 17088974 SPRING WASHER Ø6X18X1,4 MM
