8281SRi27.00

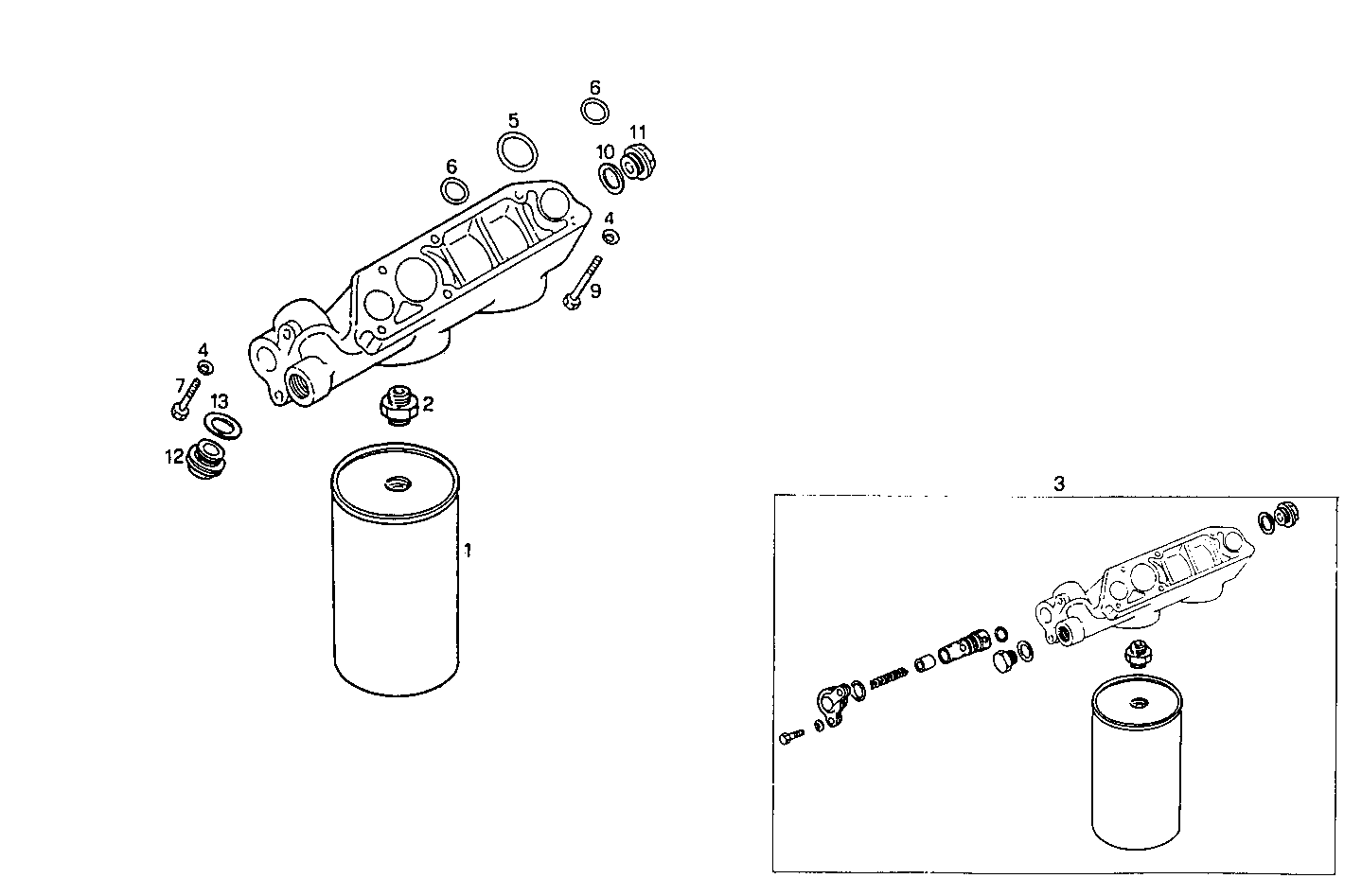

3020.054 OIL FILTERS

Iveco/FPT OIL FILTERS

Item Part number Description
1 1907571 OIL FILTER CARTRIDGE
2 4741301 THREADED UNION ASSY
4 17089875 WASHER
5 17284581 O-RING Ø59,99 x 2,62 MM
6 17282781 O-RING Ø31,42 MM SP=2,62 MM
7 16606324 HEXAGON BOLT M8X60 MM
9 16606824 HEXAGON BOLT M8X100 MM
10 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
11 4627301 PLUG M28X1,5/M14X1,5
12 16992340 THREADED PLUG M14X1,5
13 4858608 SEAL GASKET dia.14x19,5x1,5
