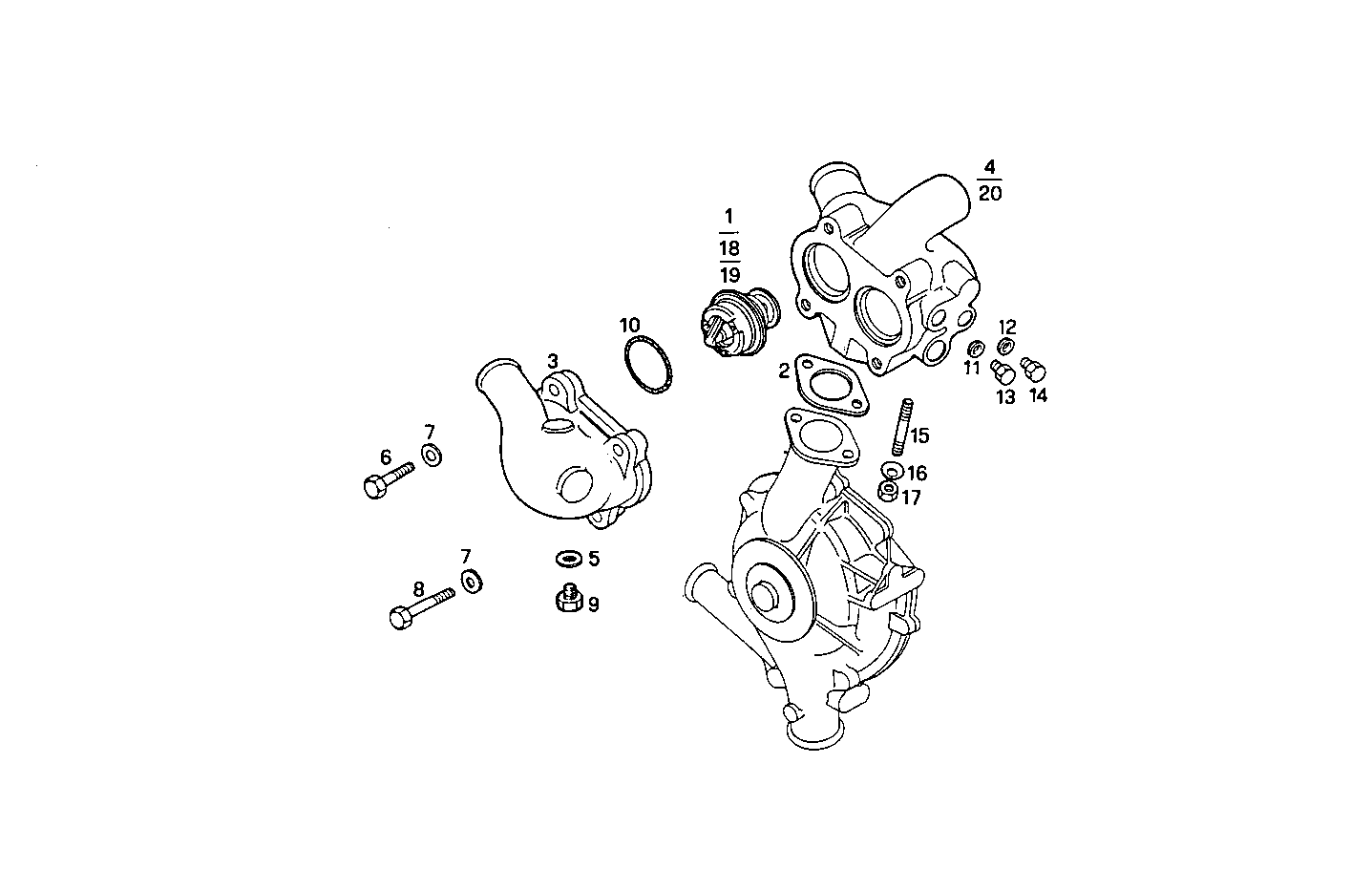

| Item |
Part number |
Description |
|
1 |
99438848 |
THERMOSTAT 79° GILARDINI [from 227935] |
|
2 |
4863503 |
FLAT ENGINE GASKET CURTY |
|
3 |
98420627 |
COVER |
|
4 |
99445826 |
THERMOSTAT BODY [from 227935] |
|
5 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
|
6 |
15971621 |
HEXAGON BOLT M10X1,25X90 MM |
|
7 |
17097121 |
WASHER Ø10X21 MM |
|
8 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
9 |
16992511 |
THREADED PLUG M18X1,5 |
|
10 |
98465113 |
O-RING Ø60 MM |
|
11 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
12 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
13 |
16992311 |
LOCK PLUG M14X1,5 |
|
14 |
16992411 |
THREADED PLUG M16X1,5 |
|
15 |
16729321 |
STUD M8X1,25X20 |
|
16 |
17089574 |
WASHER Ø8X16 MM |
|
17 |
17037931 |
HEXAGON NUT M8X1,25 |
|
18 |
98467517 |
THERMOSTAT 79° GILARDINI [up to 227934] |
|
19 |
98492873 |
THERMOSTAT 74° GILARDINI [up to 227934] |
|
20 |
99441803 |
THERMOSTAT BODY [up to 227934] |
