8281SRi27.00

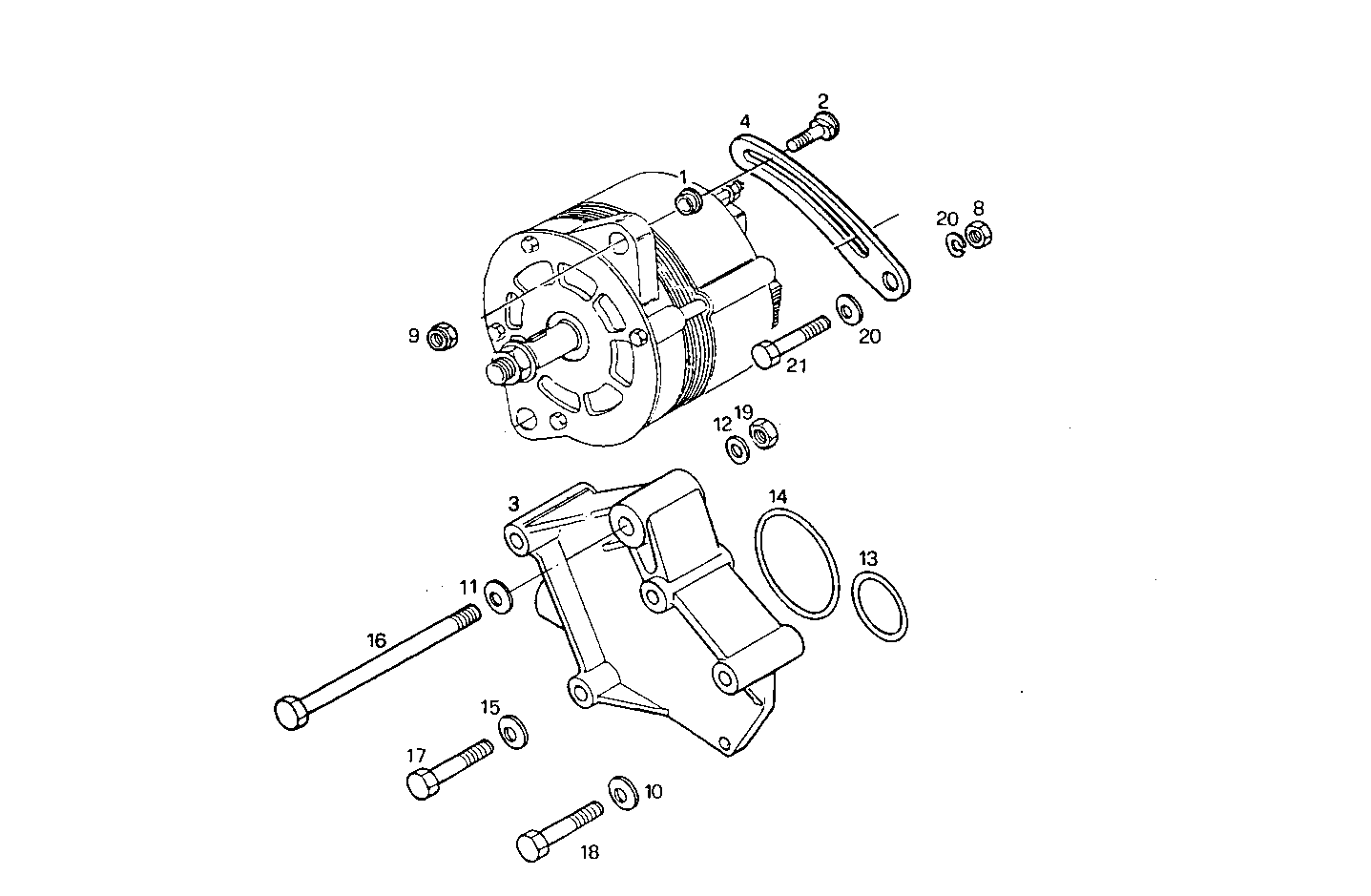

4010.021 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 4677044 SPACING BAR
2 4799044 THREADED PIN
3 4799669 GENERATOR SUPPORT
4 4799775 BRACE/STRUT
8 17038221 HEXAGON NUT M10
9 12574511 NUT M10X1,25
10 17793814 WASHER Ø8,4X21 MM
11 12646901 WASHER Ø12X28 MM
12 17091174 SPRING WASHER Ø12X24 MM
13 98465110 O-RING Ø31,42 MM SP=2,62 MM
14 14461181 O-RING Ø2,6X88,5 MM
15 17097124 WASHER 10x21
16 15543221 HEXAGON BOLT M12X1,25X125 MM
17 15971421 HEXAGON BOLT M10X1,25X80 MM
18 16044121 HEXAGON BOLT M8X45 MM (8.8)
19 17038621 NUT M12
20 17090274 WASHER Ø10X20 MM
21 11307024 SCREW M10X1,25X40 MM
