8281SRi27.00

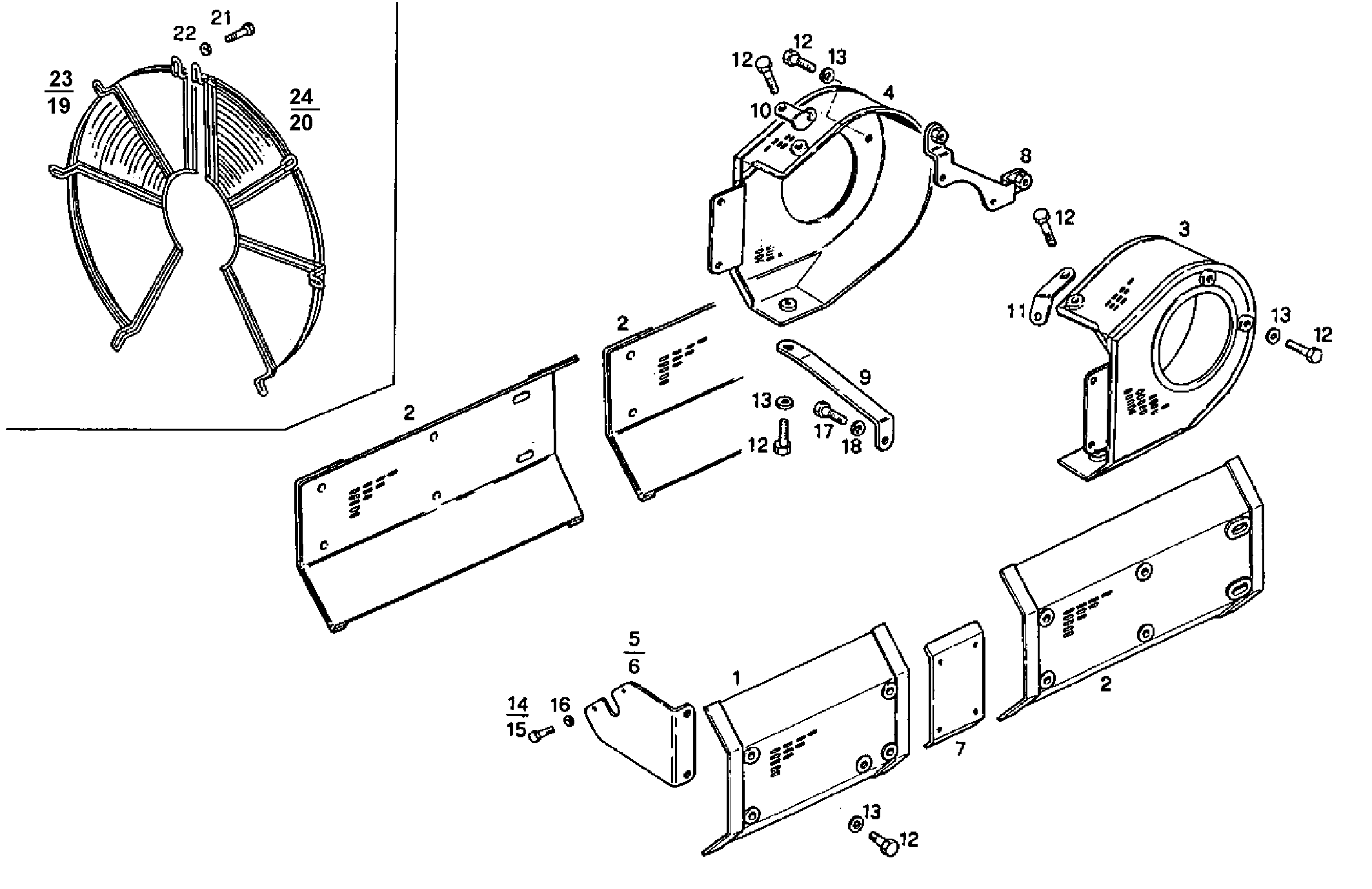

5770.018 SHIELDS

Iveco/FPT SHIELDS

Item Part number Description
1 8021366 PROTECTION
2 8021367 PROTECTION
3 8018523 PROTECTION
4 8018524 PROTECTION
5 8018260 RETAINER RIGHT
6 8018261 RETAINER LEFT
7 8018630 RETAINER
8 8018641 RETAINER
9 8018631 RETAINER
10 8018635 RETAINER
11 8018634 RETAINER
12 16605624 HEXAGON BOLT M8X25 MM (8.8)
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 16603624 HEXAGON BOLT M6X16 MM (8.8)
15 16603924 HEXAGON BOLT M6X30 MM
16 17708774 WASHER Ø6X11 MM
17 16614524 HEXAGON BOLT M16X35 MM
18 17092174 SPRING WASHER Ø16X32X3,4
19 8019297 PROTECTION [UP TO 03-02]
20 8019530 PROTECTION [UP TO 03-02]
21 16605524 HEXAGON BOLT M8X20 MM
22 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
23 8027758 PROTECTION LEFT [FROM 04-02]
24 8027759 PROTECTION RIGHT [FROM 04-02]
